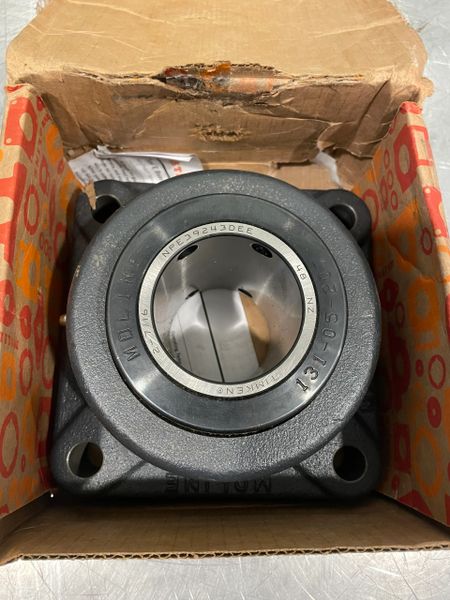

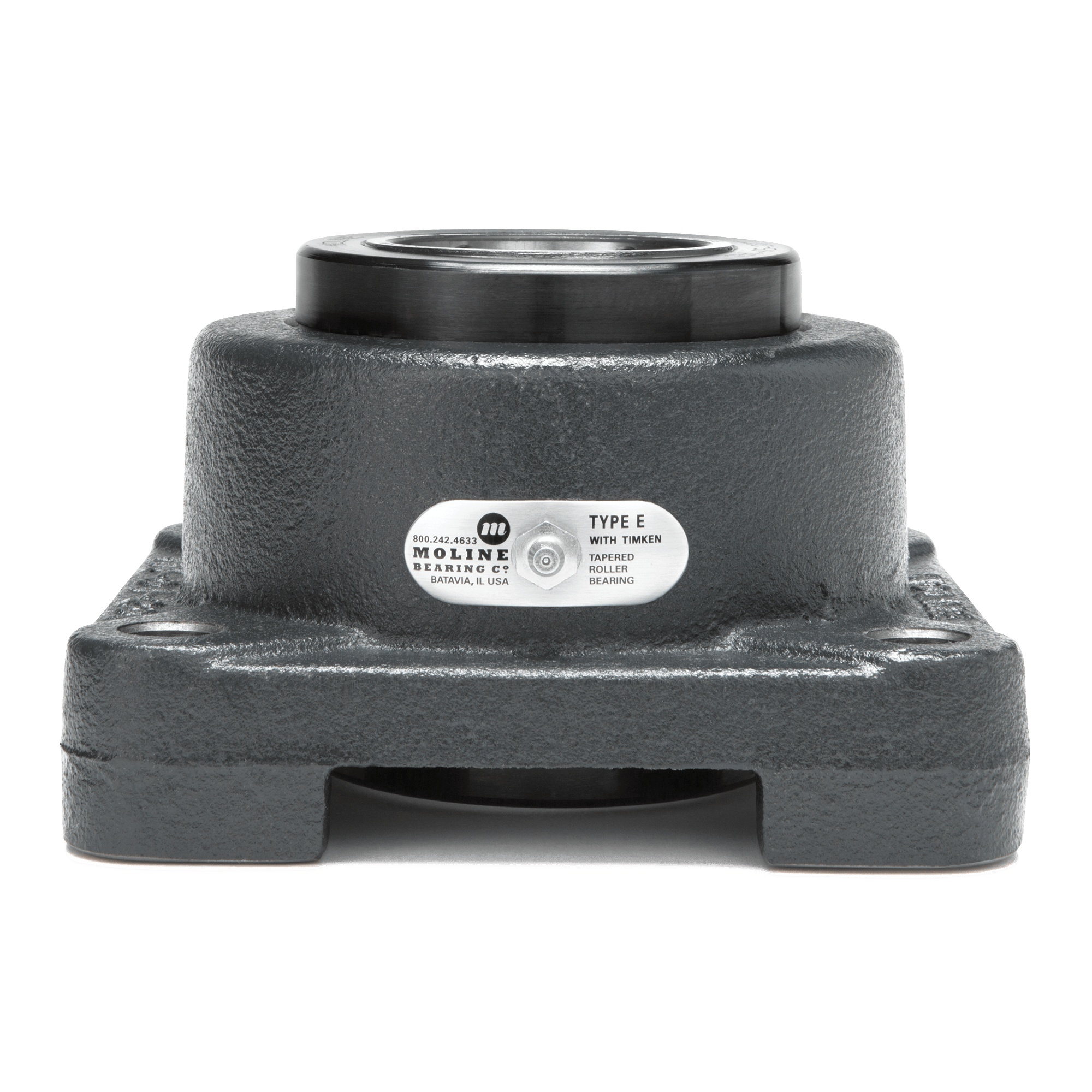

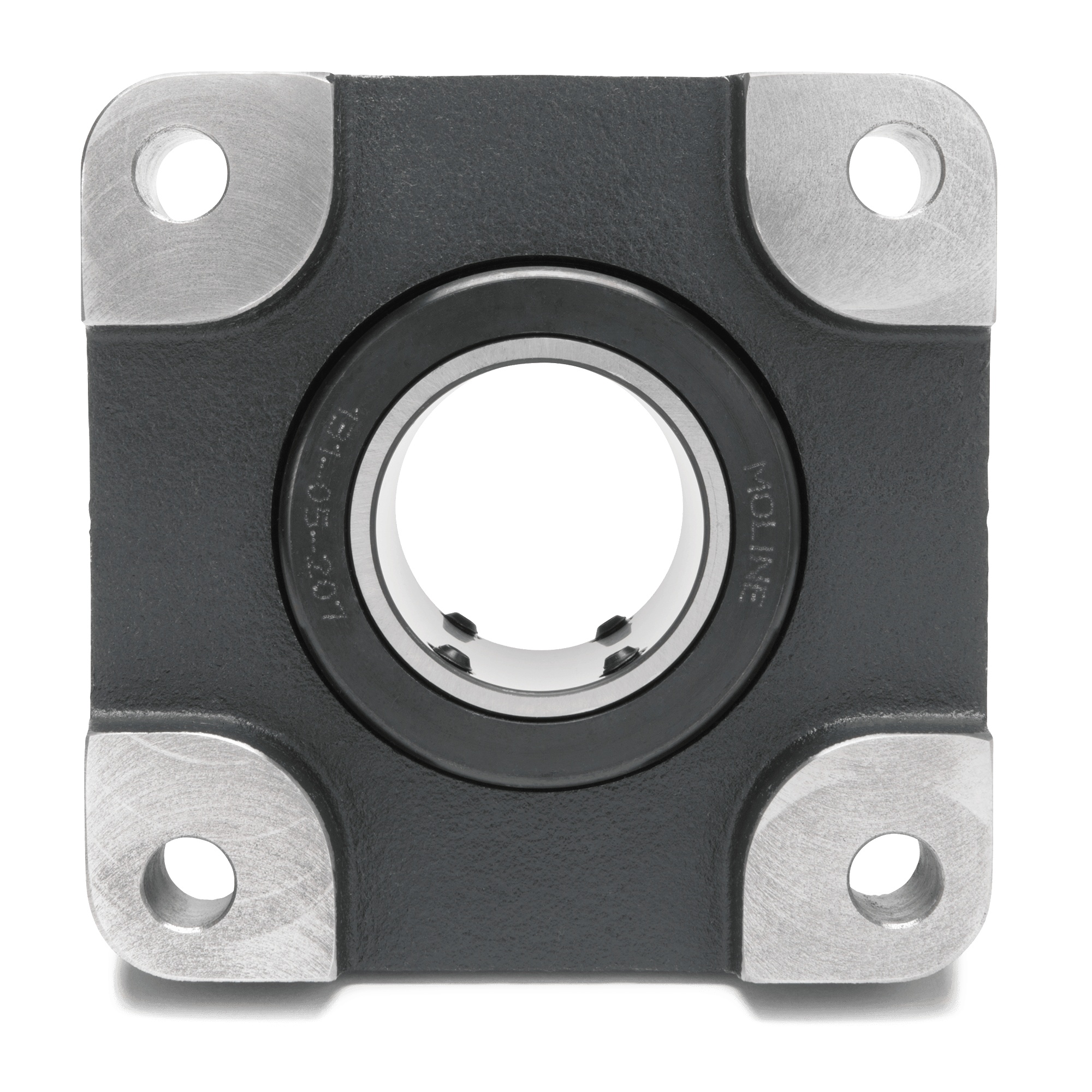

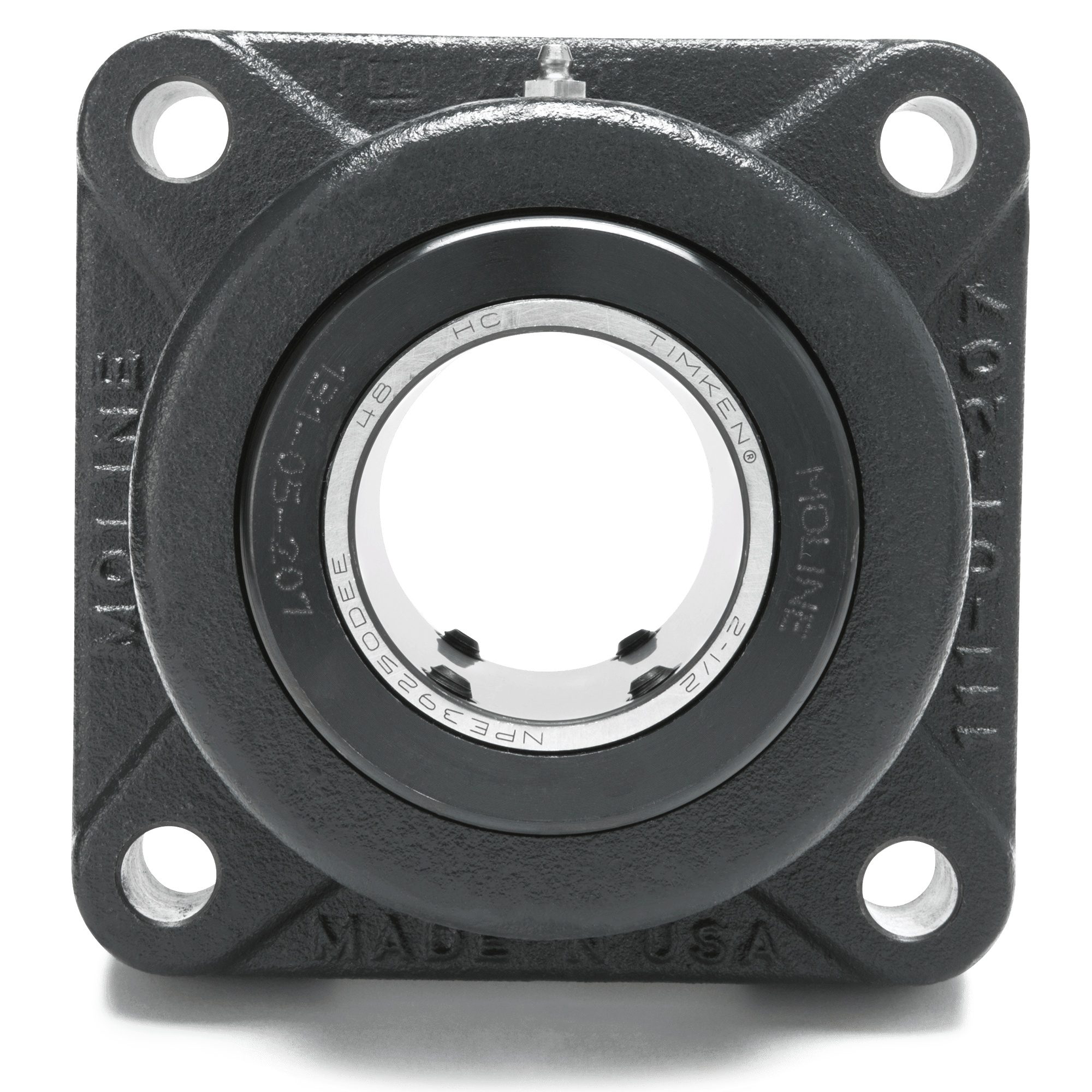

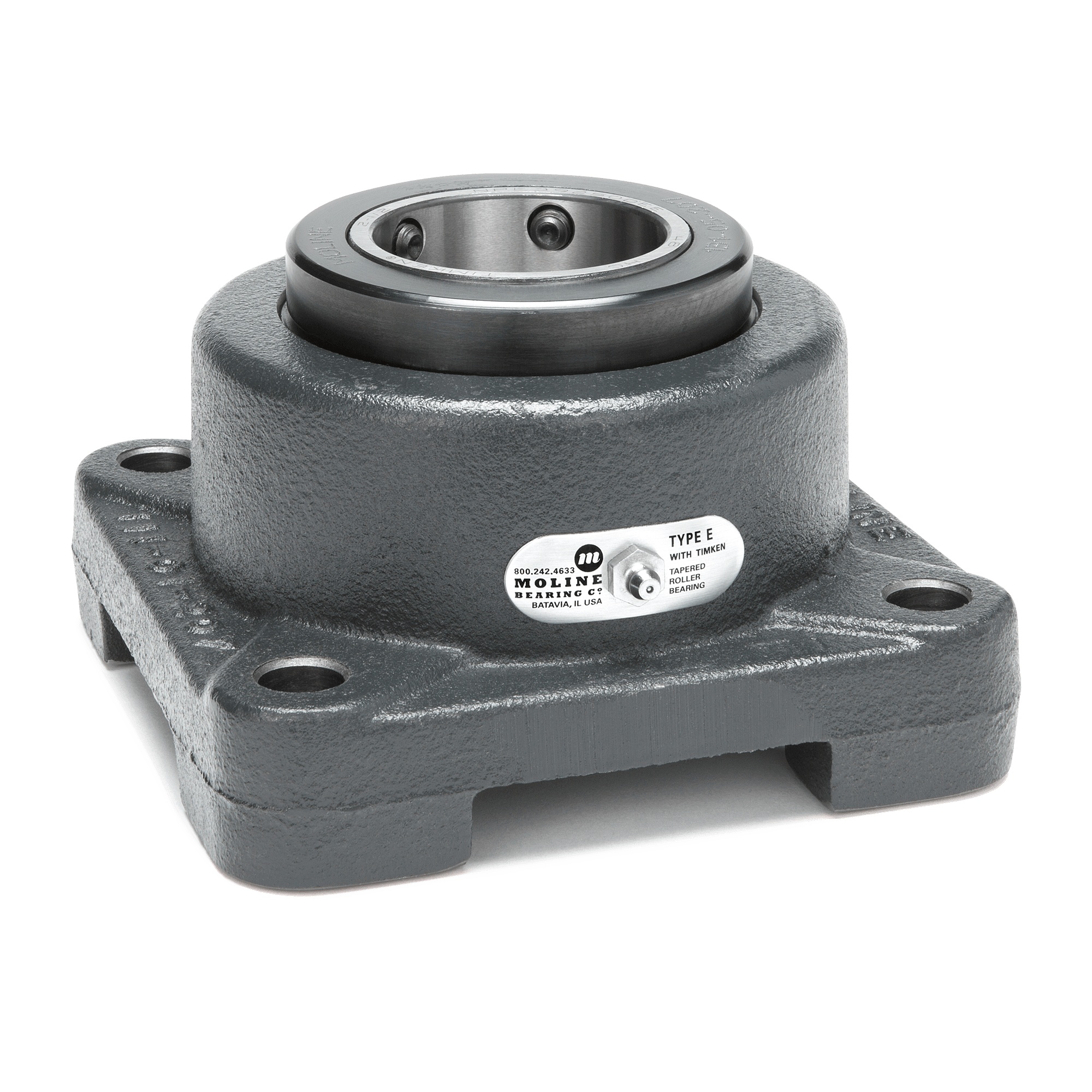

Moline Bearing 19311207 Type E Flange Mount Bearing, 2-7/16 in Dia Bore, 5-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 6-7/8 in OAL/Dia
Made of Cast Iron, this Solid Type E 4-Bolt Flange is a Non-Expansion Mounted Roller Bearing Bearing with a 2 7⁄16 in (2.4375 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard V-Guard Contact Seal made of Nitrile, Teflon and Steel, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
-
BrandMoline Bearing
-
Manufacturer Part Number19311207
-
CountryUSA
-
Load Capacity11600 lbf Dynamic/54000 lbf Static
-
Locking DeviceSet Screw
-
Temperature Rating-40 to 205 deg F
-
Flange Mounting Type4-Bolt
-
TypeType E
-
Bolt Center-to-Center Length5-3/8 in
-
Bore Diameter2-7/16 in
-
Overall Depth3-9/16 in
-
Overall Height6-7/8 in
-
Overall Length/Diameter6-7/8 in
- Introducing the Moline Type E 4-Bolt Flange Bearing - a paragon of precision engineering, unparalleled durability, and unrivaled performance in the world of mounted roller bearings
- Crafted in the USA with high-quality US-made Class 30 cast iron and premium Timken inserts, it is built to serve as not just a component, but a cornerstone of your machinery's operational excellence
- Each housing is meticulously machined to tight tolerances, ensuring a compact form that does not compromise on stability
- Our use of genuine Timken Enhanced DEE Tapered Roller Bearings guarantees the highest industry load ratings, offering unparalleled speed and load capabilities
- The case-hardened rollers and races, made from vacuum-degassed steel, contribute to extended lifespan and superior performance, effectively managing slight angular misalignments while delivering high radial and thrust load capacities
- Rugged and Ready - Every Moline Type E Bearing is designed to endure the toughest conditions
- With a temperature range of 0 to 250F, it's equipped with a Standard V-Guard Contact Seal made of Nitrile and Teflon, providing excellent resistance against contaminants
- These bearings are shipped pre-assembled, pre-lubricated, and pre-adjusted, minimizing downtime and reducing costs associated with installation and maintenance
- The set screw locking ensures a secure fit, with solid steel construction promising robust and reliable service
- Versatile Applications - Molines Type E Tapered Roller Bearings are a versatile solution across numerous industries
- Our 4-Bolt Flange design is particularly favored for its square shape with rounded corners, distributing loads evenly across four mounting points to accommodate higher loads effortlessly
- Customizable Options - While our standard offering includes a durable painted finish, customization options are available to cater to specific needs, including Custom Colors, Powder Coating, Stainless Steel Powder Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings
- This adaptability allows our bearings to seamlessly integrate into various environments and applications
- The Moline Advantage - Choosing the Moline Type E 4-Bolt Flange Bearing means opting for a product that combines ruggedness, precision, and affordability in one compact package
- Its compatibility with comparable Type E units ensures easy integration and interchangeability, further enhancing its appeal
- Every feature of this bearing is designed to give your operations the edge they needhigh-speed suitability, ease of installation, and an industry-leading load rating
- Trust in Moline for bearing solutions that are not just built to last, but built to lead
- Select the Type E 4-Bolt Flange Bearing for an effortless blend of strength and endurance, supported by cutting-edge engineering and crafted from the finest materials
- Let Moline be the backbone of your machinery's efficiency and reliability, enhancing your operational capabilities to new heights
-
Package DescriptionEACH
