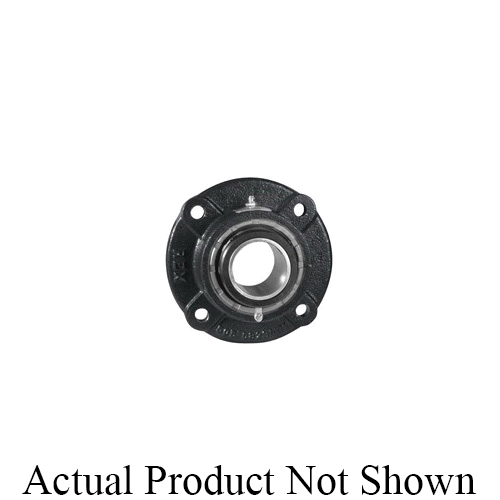

Rexnord® 10417493 2000 Fixed Normal Duty Flanged Block Spherical Roller Bearing, 2-3/16 in Dia Bore, 4-1/2 in L Bolt Center-to-Center, 3-3/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 7-3/4 in OAL/Dia
Rex® 10417493 2000 Fixed Normal Duty Flanged Block Spherical Roller Bearing, 2-3/16 in Dia Bore, 4-1/2 in L Bolt Center-to-Center, 3-3/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 7-3/4 in OAL/Dia
-
BrandRexnord®
-
UPC698210636043
-
Manufacturer Part Number10417493
-
CountryUSA|Canada
-
Load Capacity36370 lb Dynamic/44400 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Round
-
Maximum Speed3650 rpm
-
TypeFixed Normal Duty
-
Seal MaterialMetal
-
Series2000
-
Bolt Center-to-Center Length4-1/2 in
-
Bolt Circle Diameter3-3/16 in
-
Bore Diameter2-3/16 in
-
Overall Depth3-13/32 in
-
Overall Length/Diameter7-3/4 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Simplest installation
- Most economical
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Machined pilot on face of flanged units
-
Alternative Part NumberZB2203S
-
UNSPSC31171501
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
