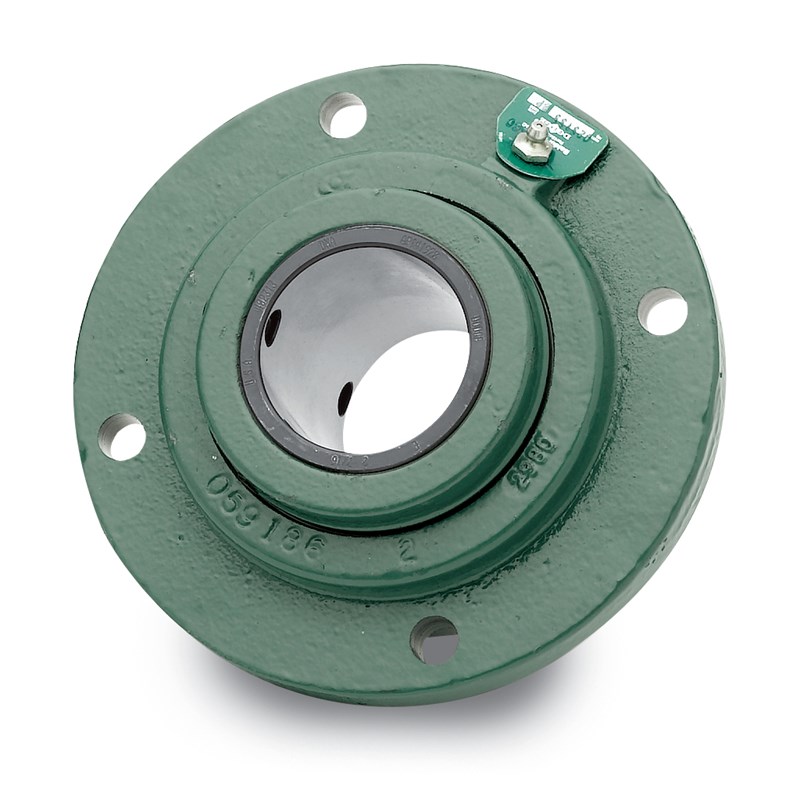

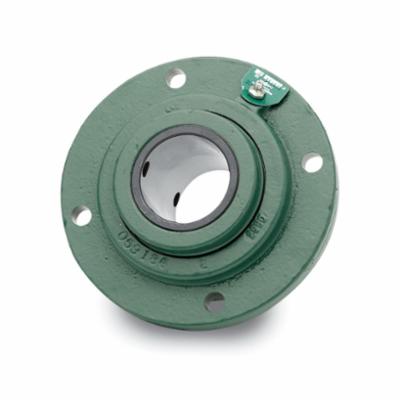

Dodge® 023134 207 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 2-1/2 in Dia Bore, 4.6 in L Bolt Center-to-Center, 6-1/2 in Dia Bolt Circle, Piloted Flange Mount, 7.63 in OAL/Dia
Dodge® 023134 207 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 2-1/2 in Dia Bore, 4.6 in L Bolt Center-to-Center, 6-1/2 in Dia Bolt Circle, Piloted Flange Mount, 7.63 in OAL/Dia
-
BrandDodge®
-
UPC782475697533
-
Manufacturer Part Number023134
-
CountryUSA
-
Load Capacity10600 lb Dynamic/54000 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-100 to 200 deg F
-
FinishUncoated
-
Flange Mounting TypePiloted
-
Maximum Speed2420 rpm
-
TypeNon-Expansion Type E-Xtra Triple Lip
-
Series207
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length4.6 in
-
Bolt Circle Diameter6-1/2 in
-
Bore Diameter2-1/2 in
-
Overall Depth4 in
-
Overall Height7.63 in
-
Overall Length/Diameter7.63 in
- New XTS seal provides added protection against contamination
- Completely assembled, factory adjusted and properly lubricated shaft
- Stocked in all configurations
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738808 |
| Motion Industries | 00572043 |
-
Alternative Part NumberFC-E-208R
-
UNSPSC31171516
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
-
Line Drawing
