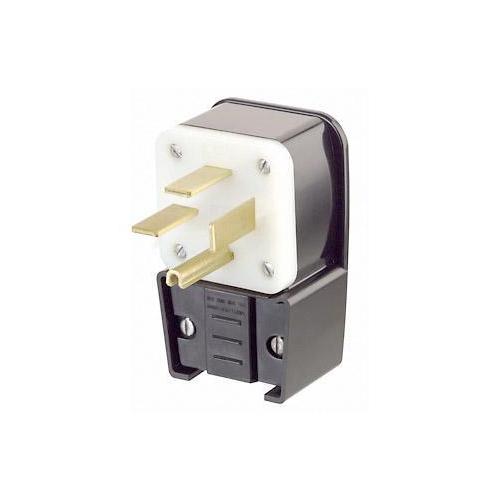

LEVITON #2 CD/STR BL ELECTRIC ANGLE PLUGS LEV 8452-P
Leviton® heavy duty industrial power plugs and connectors offer superior performance, long lasting reliability and features that are backed by a 10 years warranty. Available in many NEMA configurations, youll be sure to find the right device for your needs.
-
BrandLeviton®
-
UPC078477809990
-
Manufacturer Part Number8452-P
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorBlack
-
Type3-Phase Angled Cable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 15-50P
-
Voltage Rating250 V AC
-
Cord Diameter5/8 to 1-3/8 in
-
Amperage Rating50 A
-
Horsepower7.5 hp
-
Number of Poles3
-
Dimensions4.37 in H x 2.76 in W x 1.89 in D
-
Number of Wires4
- Rugged cord clamp for secure cable grip accommodates cord diameters from 5/8 to 1-3/8 in and does not tear conductor jacket
- Made of tough, heavy duty nylon for long service life
- Devices feature heavy sectioned dead front right angle
- Pressure clamp terminal design
- Terminals accept up to #4 AWG stranded conductor
- Solid brass blades for maximum conductivity
- 10 to 4 AWG terminal accommodation
- Super tough nylon body
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5HZL4 |
-
Alternative Part Number7332828
-
UNSPSC39121402
-
IDEA Index ID7332828
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years
-
RoHS
-
Instruction/Installation Manual
