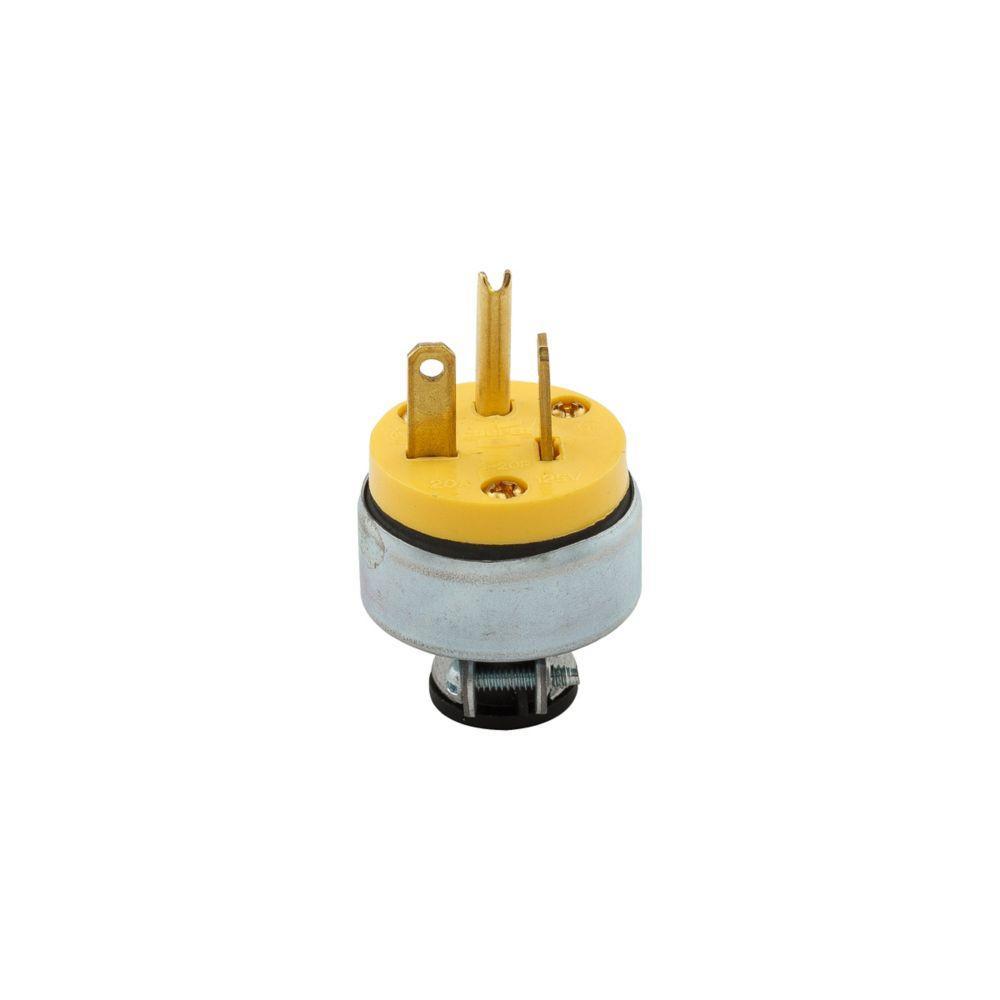

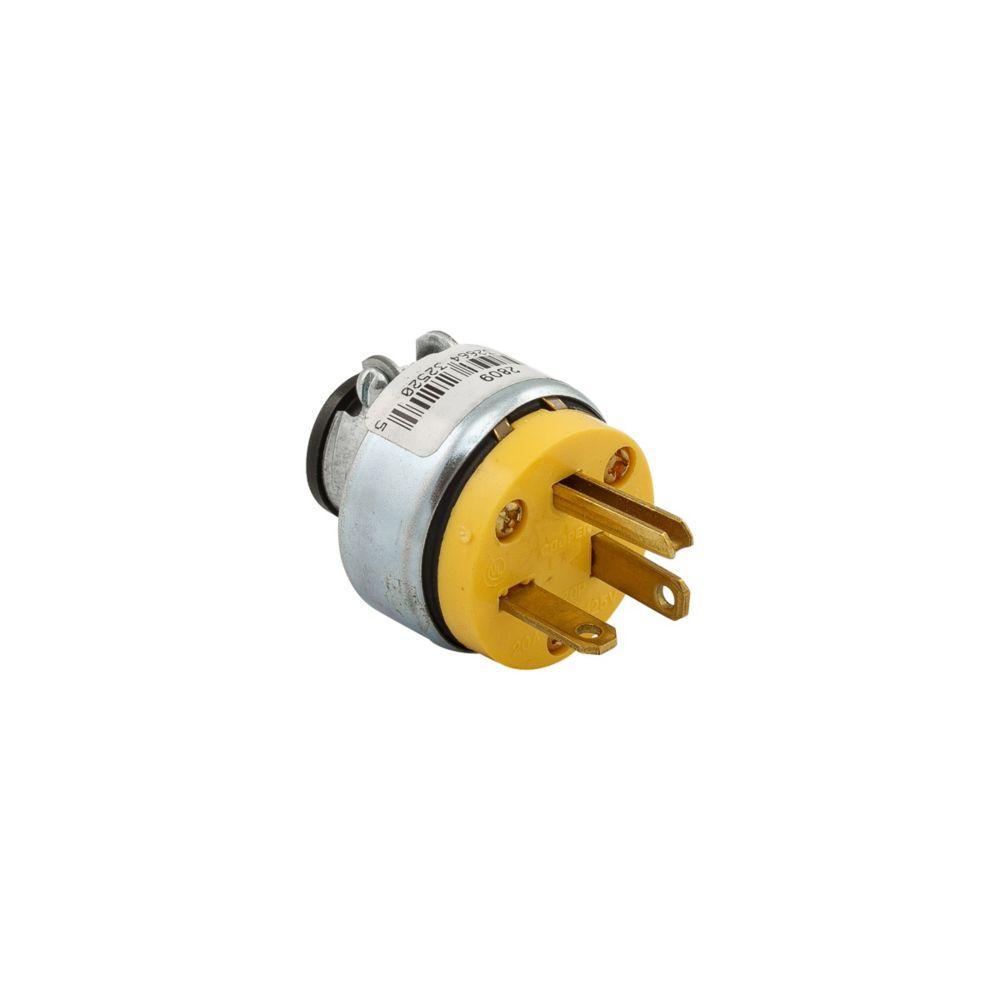

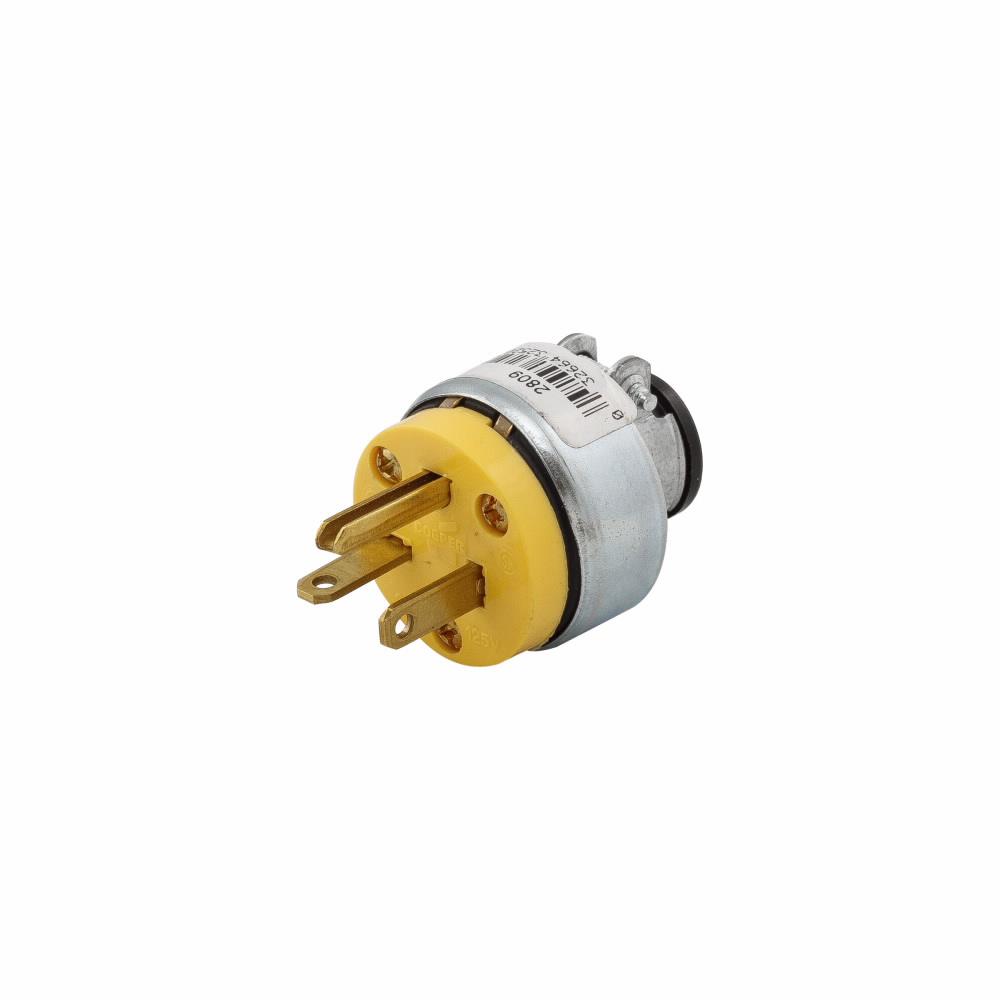

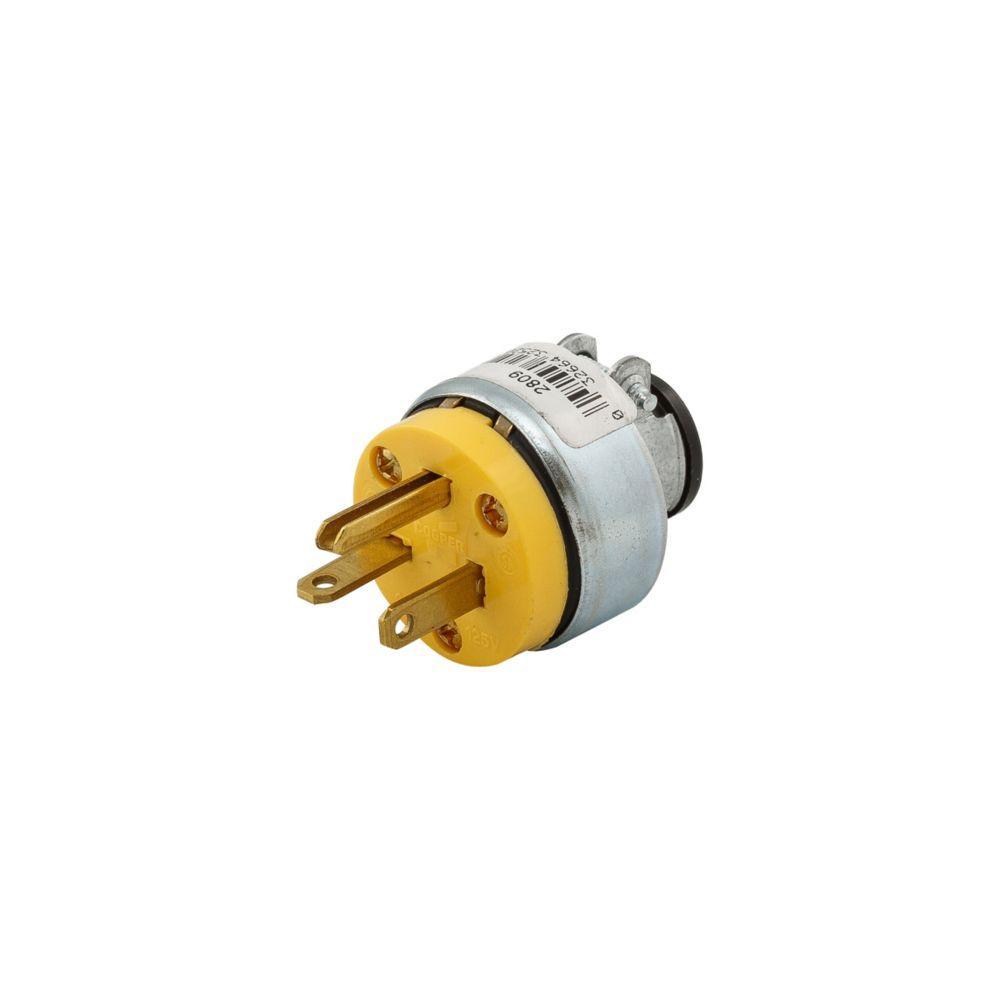

EATON 2809-BOX Armored Straight Blade Plug, 125 V, 20 A, 2 Poles, 3 Wires, Yellow

Name: EATON 2809-BOX Armored Straight Blade Plug, 125 V, 20 A, 2 Poles, 3 Wires, Yellow
Brand: Leviton
SKU: JWH511565
Price: 4.66 USD
Availability: InStock

0 Ratings

$4.66

SKU: JWH511565

GTIN (EAN,ISBN): 00032664325205

Our compact yet rugged light commercial and standard residential grade plugs and connectors are available in a broad range of designs, materials and configurations for virtually any replacement application or do-it-yourself extension cord creation.

In Stock

HCI of Jackson: 4

HCI of Dyersburg: 1

HCI of Humboldt: 1

HCI of Union City: 1

HCI of Gallatin: 1

Back to: Straight Blade Plugs

Main specs

Brand

EATON
UPC

032664325205
Manufacturer Part Number

2809-BOX
Country

USA

Specification

Temperature Rating

-40 to 60 deg C
Material

Vinyl
Color

Yellow
Type

Armored Straight Blade
Grade

Commercial
NEMA Rating

5-20P
Voltage Rating

125 V
Cord Diameter

0.245 to 0.7 in
Amperage Rating

20 A
Number of Poles

2
Dimensions

1.55 in Dia x 1.89 in H
Number of Wires

3

Features

Spec grade plug
NEMA configuration number and rating molded on face of device for easy identification
Rubber body is dirt and moisture resistant
Husk and module keyed for easy alignment during wiring
Rugged PVC body resist moisture and chemicals
Speed thread assembly screws tighten with just a few quick turns
Zinc plated steel assembly screws and solid brass blade and contacts
18 to 12 AWG terminal accommodation
Suited for outdoor cords
Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
Motor base inlet accepts #10 AWG maximum copper or copper clad wire

Competitor Information

Competitor Name	Competitor Part Number
Grainger	6X785

Additional Information

Alternative Part Number

14024642
UNSPSC

39121402
IDEA Index ID

14024642
Package Description

EACH
Standards/Approvals

NOM,cULus Listed,RoHS Compliant
Warranty

10 years Limited

Attachments

Specification Sheet

Click here

Reviews

There are yet no reviews for this product.
