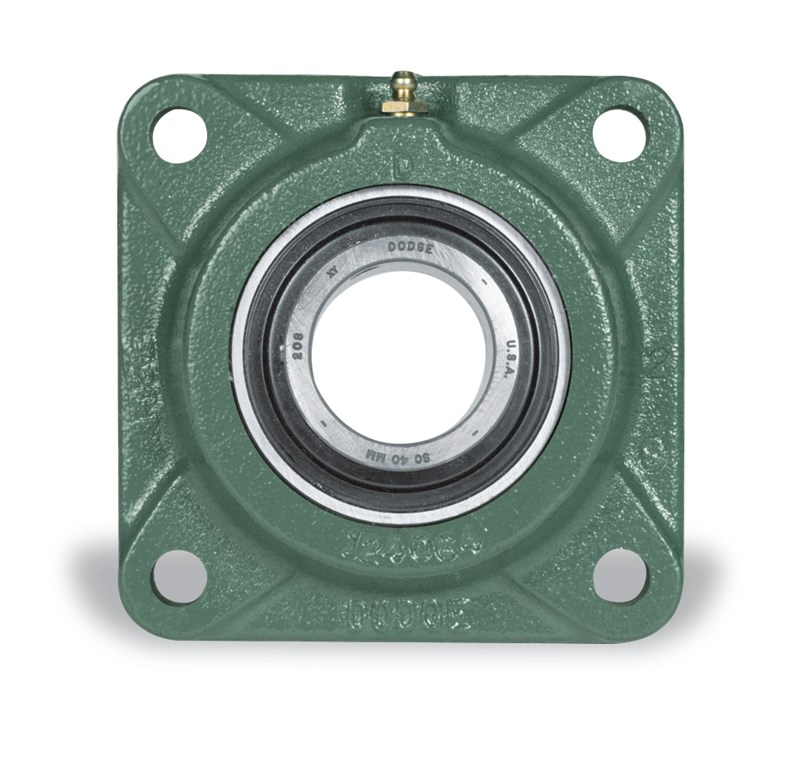

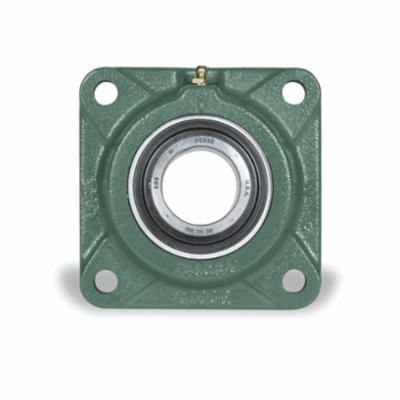

F4B-LT10-108 Dodge® 033209 207/1000 Medium Duty Non-Expansion Solidlube Flange Mount Sleeve Bearing, 1-1/2 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 4-3/4 in OAL/Dia
F4B-LT10-108 Dodge® 033209 207/1000 Medium Duty Non-Expansion Solidlube Flange Mount Sleeve Bearing, 1-1/2 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 4-3/4 in OAL/Dia
-
BrandDodge®
-
UPC782475016389
-
Manufacturer Part Number033209
-
CountryUSA
-
Load Capacity3200 lb Base/1710 lb Side
-
Temperature Rating250 to 1000 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed1300 rpm
-
TypeMedium Duty Non-Expansion Solidlube
-
Series207/1000
-
Bolt Center-to-Center Length3-5/8 in
-
Bore Diameter1-1/2 in
-
Overall Depth1-3/8 in
-
Overall Height4-3/4 in
-
Overall Length/Diameter4-3/4 in
- Self-lubricating, statically self-aligning bearing
- Good in temperature extremes and inaccessible locations
- Will function effectively in a vacuum
- Ideal where bearings are subject to dry cycles or where lube systems would be too costly
- Usable in many corrosive medias
-
Alternative Part NumberF4B-LT10-108
-
UNSPSC31171515
-
Package DescriptionEACH
-
WarrantyLimited
-
Line Drawing
-
Owners/User Manual
-
Specification Sheet
-
Instruction/Installation Manual
-
Warranty Information
