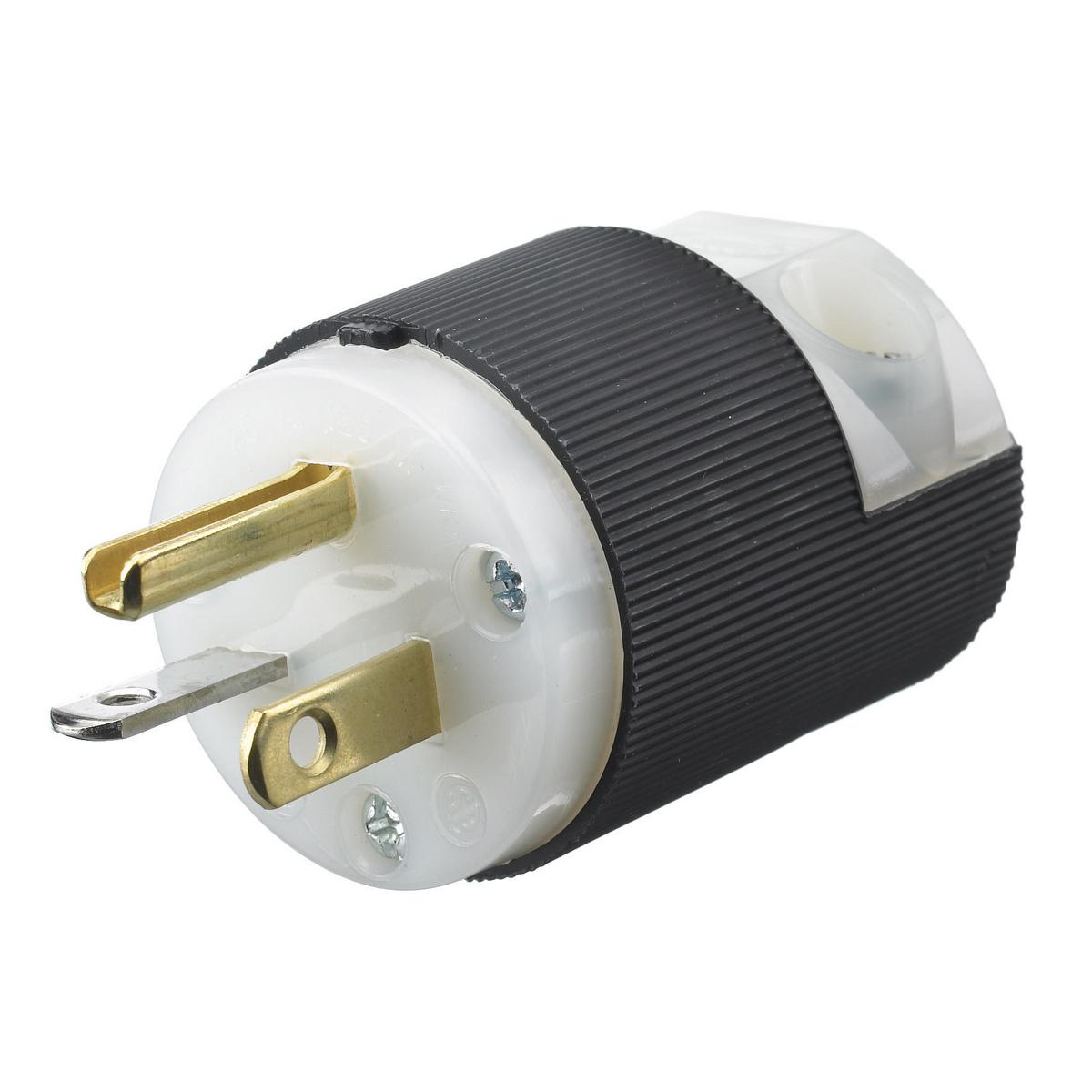

Hubbell Wiring Device-Kellems Insulgrip® HBL5366C 1-Phase Grounding Portable Standard Cord Mount Straight Blade Plug, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Black and White, Single Pack.
-
BrandHubbell Wiring Device-Kellems
-
UPC783585173955
-
Manufacturer Part NumberHBL5366C
-
CountryUSA|Canada
-
Temperature Rating-40 to 75 deg C
-
MaterialPolycarbonate
-
ColorBlack/White
-
Type1-Phase Grounding Portable Standard Cord Mount
-
GradeCommercial/Industrial
-
NEMA Rating5-20P
-
Voltage Rating125 V AC
-
Cord Diameter0.23 to 0.72 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.52 x 1.52 x 1.96 in
-
Number of Wires3
-
Terminal TypeScrew
-
Horsepower1 hp
-
EnclosureIP20
- VARI-SIZE adjustable cord clamp
- Beveled housing prevents snagging
- Fast lead assembly screws
- Ribbed nylon housing is impact and chemical resistant
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- 18 to 10 AWG terminal accommodation
- Super tough nylon body
- Captive, color coded brass #8 AWG terminal screws
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4A255 |
-
Alternative Part Number11828153|8909668
-
UNSPSC39121402
-
IDEA Index ID8909668
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E1706 Listed|UL 94-HB Flammability Rating|CSA C22.2 File No. 42, 280|NEMA WD1/WD5|RoHS Compliant
-
WarrantyLifetime
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
-
Full Engineering Drawing
