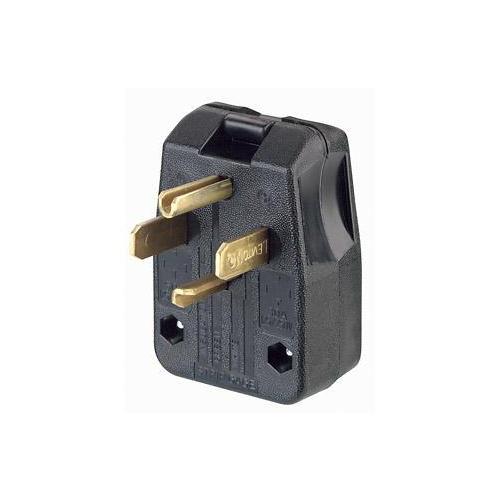

LEVITON 30-AMP 125/250-V/50-AMP ANGLE PLUG LEV 275-E
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477644966
-
Manufacturer Part Number275-E
-
CountryUSA
-
Temperature Rating-40 to 60 deg F
-
MaterialThermoplastic
-
ColorBlack
-
TypeGrounding
-
GradeCommercial
-
NEMA Rating14-30P/14-50P
-
Voltage Rating125/250 V AC
-
Cord Diameter3/4 to 1-1/8 in
-
Amperage Rating30/50 A
-
Number of Poles3
-
Dimensions3.49 in L x 2.56 in W
-
Number of Wires4
-
Terminal TypeBacked-Out/Deep Slotted
-
EnclosureNEMA WD-6
- Tough thermoplastic shell for long life
- Shell and bottom are hinged in front for ease of assembly
- Solid brass blades with color coded terminals simplify wiring
- Each dual combination plug supplied with 30 A blades and flat 50 A blade
- Interchangeable blades eliminate need for stocking different devices
- Built-in rejection feature prevents closure if blades are incorrectly positioned
- Wiring stripping gauge molded into plug cover
- Zinc plated steel assembly screws and solid brass blade and contacts
- 14 to 6 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25MY76 |
-
Alternative Part Number15970606
-
UNSPSC39121402
-
IDEA Index ID15970606
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File LR-406|NOM 057|UL 498 File No. E13393/94
-
Warranty2 years
-
