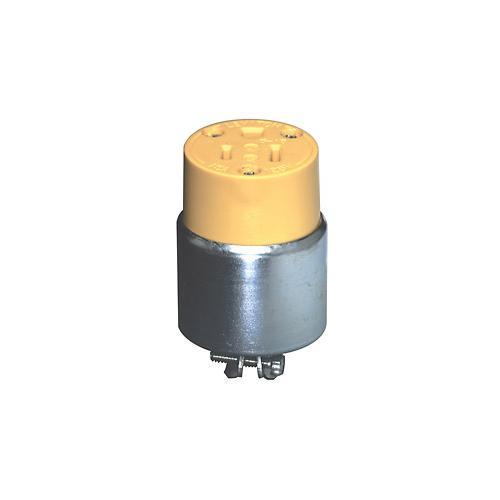

LEVITON ARMORED 3-WIRE ELECTRIC CONNECTORS LEV 515-CA
LevitonĀ® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
BrandLevitonĀ®
-
UPC078477841785
-
Manufacturer Part Number515CA
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialPVC/Steel
-
ColorYellow
-
TypeCable Mount Armored Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Cord Diameter0.245 to 0.7 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.55 in Dia x 2.56 in H
-
Number of Wires3
- Triple drive head screws standard, PhilipsĀ® and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Rugged PVC body resist moisture and chemicals
- Unique dimpled body design provides a secure grip
- Speed thread assembly screws tighten with just a few quick turns
- Suited for outdoor cords
- 2-piece strain relief clamp center cord for neat installation
- Zinc plated steel assembly screws
- Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Grounding
- Certified for current interrupting at full rated current
- Cable mounting
- 2000 VAC dielectric voltage
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6X786 |
-
Alternative Part Number7341915
-
UNSPSC39121402
-
IDEA Index ID7341915
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
