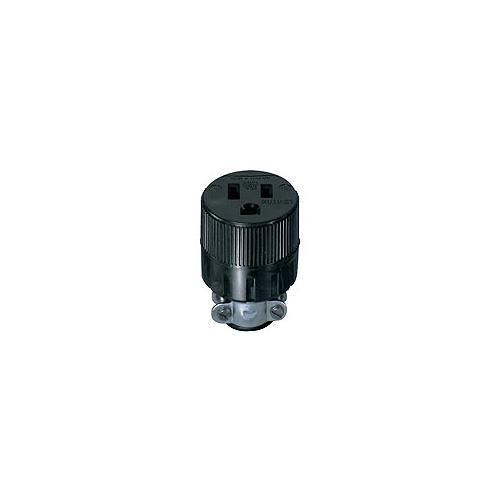

Leviton® 617 Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477107829
-
Manufacturer Part Number617
-
CountryUSA|Canada
-
Temperature Rating-40 to 65 deg C
-
Terminal TypeScrew
-
MaterialVinyl
-
ColorBlack
-
TypeCable Mount Grounding
-
GradeResidential
-
NEMA RatingNEMA 5-15R/1-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.437 in
-
Amperage Rating15 A
-
Number of Poles2
-
Number of Wires3
- Triple drive head screws standard, Philips® and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Rugged PVC body resist moisture and chemicals
- Unique dimpled body design provides a secure grip
- Speed thread assembly screws tighten with just a few quick turns
- 20 to 16 AWG terminal accommodation
- Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
| Cross-Reference Number |
|---|
| 526032 |
-
Alternative Part Number7343044
-
UNSPSC39121402
-
IDEA Index ID7343044
-
Package DescriptionEACH
-
Standards/ApprovalsNOM 057|UL File No. E13393|CSA Certified|UL94 V-2 Flammability Rating
-
Warranty2 years Limited
-
Specification Sheet
-
Instruction/Installation Manual
