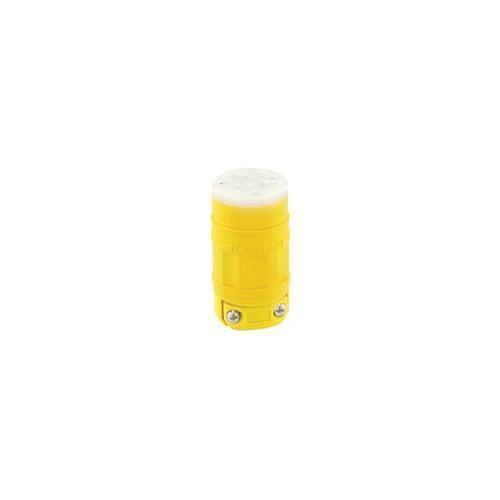

LEVITON 20-A 125-V CONNECTOR LEV 1533
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477852958
-
Manufacturer Part Number1533
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialTPV
-
ColorYellow
-
TypeCable Mount Grounding Severe Duty
-
GradeIndustrial
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.54 in Dia x 3 in H
-
Number of Wires3
-
EnclosureIP44
- Tongue and groove design of front module and TPV body assures tight fit in husk and offers excellent barrier against dirt and dust
- Rubber membrane seal for secure cord grip, creates a barrier and keeps contaminants from entering the device interior
- Santoprene TPV husk exterior offers excellent resistance to cracking and fading from sunlight exposure, repels moisture and fluids and endures extreme temperature variations
- Fast threading assembly screws, keyed wiring module and husk, self-centering strain relief clamps and deep funneled wiring wells provide for simple and fast assembly
- 18 to 10 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25MD05 |
-
Alternative Part Number7345736
-
UNSPSC39121402
-
IDEA Index ID7345736
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Warranty2 years Limited
-
RoHS
-
Instruction/Installation Manual
