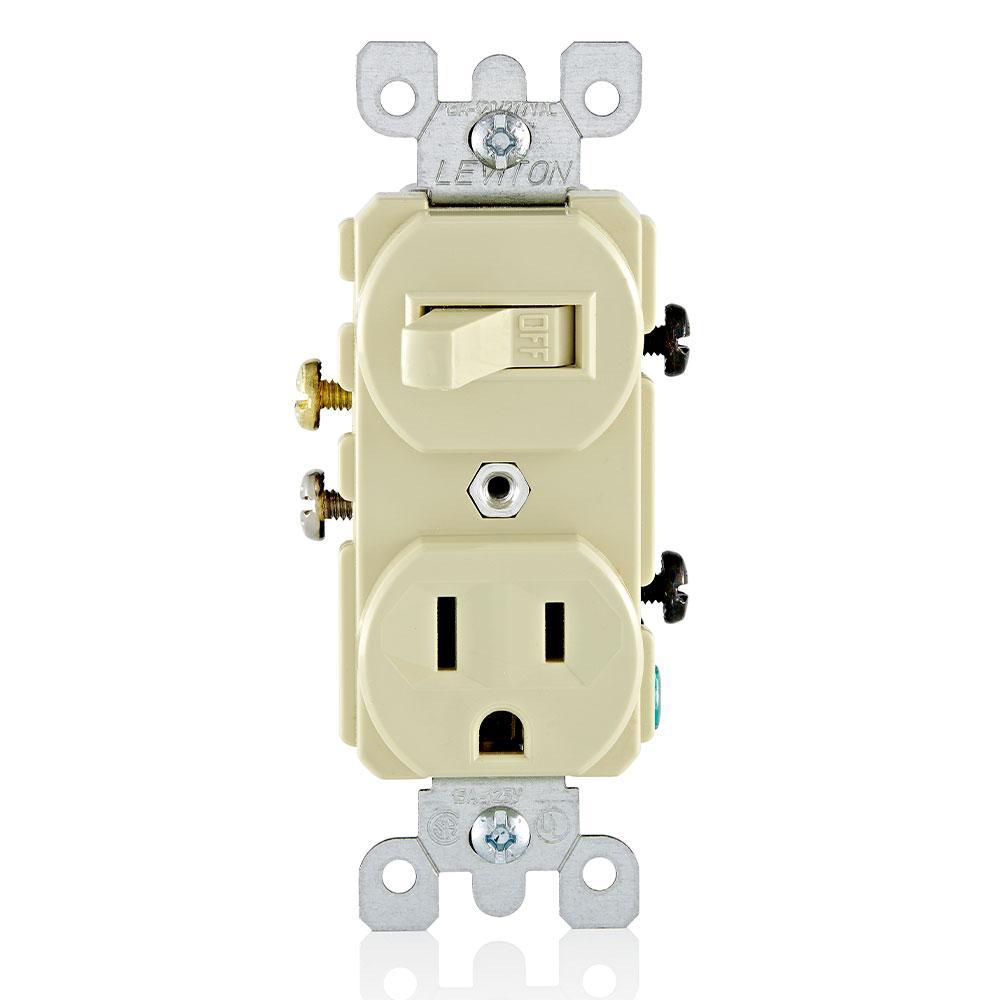

Leviton® 5225-S Duplex AC Combination Switch, Electrical Ratings: 15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC, 1 Poles
Leviton® 5225-S Duplex AC Combination Switch, Electrical Ratings: 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC, 1 Poles
-
BrandLeviton®
-
UPC078477427446
-
Manufacturer Part Number5225-S
-
CountryUSA
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBrown
-
TypeDuplex
-
GradeCommercial
-
Grounding StyleGrounded
-
MountingSurface/Wall Plate
-
Number of Poles1
-
Dimensions4.2 in H x 1.62 in W x 16 in D
-
Electrical Ratings15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC
-
EnclosureNEMA 5-15R
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- -40 to 120 deg C temperature rating
- Steel strap and thermoplastic toggle actuator
- 15 A, 120 VAC switch, 125 VAC receptacle electrical rating
| Cross-Reference Number |
|---|
| 525140 |
-
Alternative Part Number12127538
-
UNSPSC39122231
-
IDEA Index ID12127538
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating
-
Warranty2 Years Limited
-
Specification Sheet
