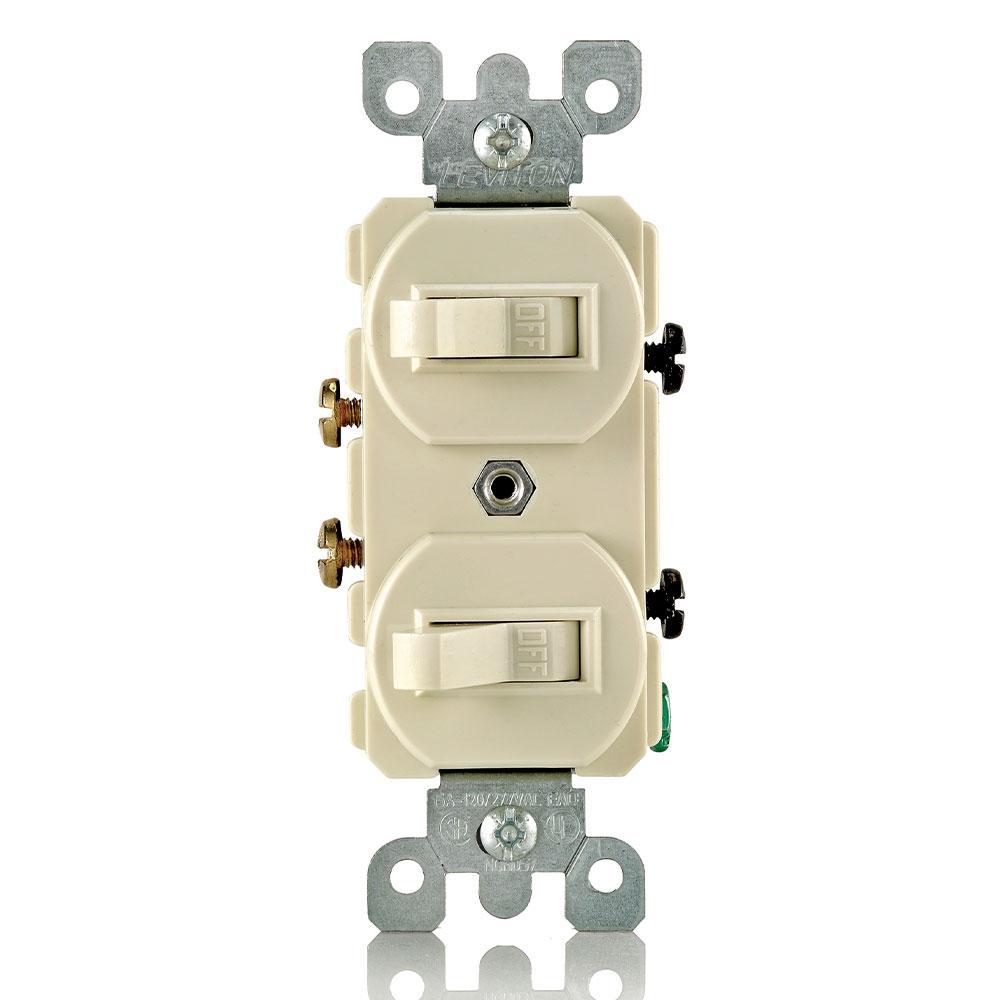

LEVITON 15-AMP IVORY DUPLEX WALL SWITCHES LEV 5224-2-I
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC078477226452
-
Manufacturer Part Number5224-2I
-
CountryUSA
-
MaterialThermoplastic/Steel
-
ColorIvory
-
TypeDuplex Grounding
-
MountingSurface
-
Contact Rating15 A at 120/277 VAC
-
SeriesTraditional
-
Number of Poles1
-
Size4.2 in H x 1.62 in W x 16 in D
-
Operating Cycles100 Cycles
-
Electrical Ratings20 A, 125 VAC, 1 hp
-
EnclosureNEMA 5-15R
-
Environmental Conditions-40 to 120 deg C Operating Temperature
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw, except where noted
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Withstands 1500 VAC for 1 min dielectric voltage
- 100 cycles of overload at 4.8 times rated current
- Side wired connection
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5A061 |
-
Alternative Part Number7365308
-
UNSPSC39122231
-
IDEA Index ID7365308
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 111 File No. 152105 File No. LR3413|NEMA WD-1/WD-6|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating
-
Warranty2 Years
-
Specification Sheet
-
Owners/User Manual
