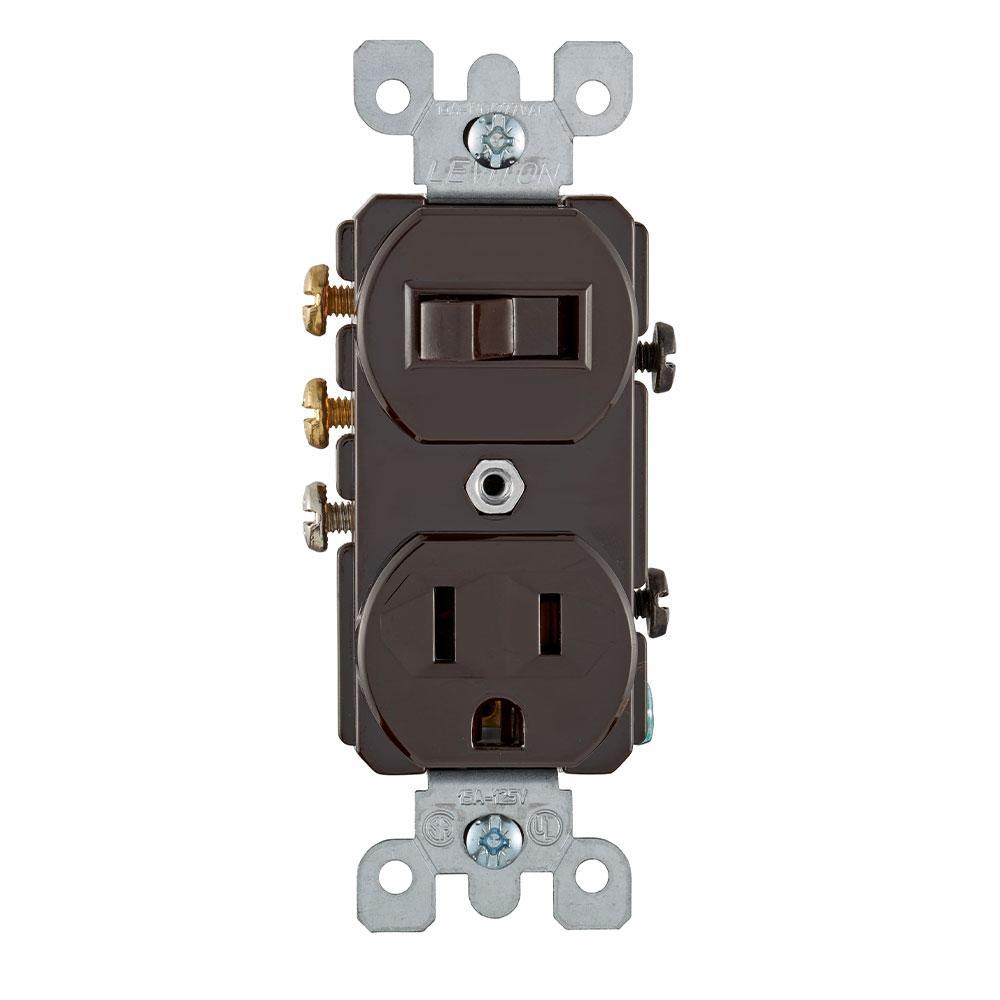

LEVITON 15-AMP COMBINATION SWITCH/OUTLET LEV 5245
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC078477229705
-
Manufacturer Part Number5245
-
CountryUSA
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBrown
-
Type3-Way Duplex Grounding
-
GradeCommercial
-
MountingWall/Surface
-
SeriesTraditional
-
Number of Poles3
-
Dimensions4.2 in H x 1.62 in W x 16 in D
-
Electrical Ratings15 A, 120/125/277 VAC, 1/2 hp at 120 VAC
-
EnclosureNEMA 5-15R
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw, except where noted
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Withstands 1500 VAC for 1 min dielectric voltage
- 100 cycles of overload at 4.8 times rated current
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25ME95 |
-
Alternative Part Number7365577
-
UNSPSC39122231
-
IDEA Index ID7365577
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No. 111 File No. 152105/LR3413|NEMA WD1/WD6|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating
-
Warranty10 Years
-
