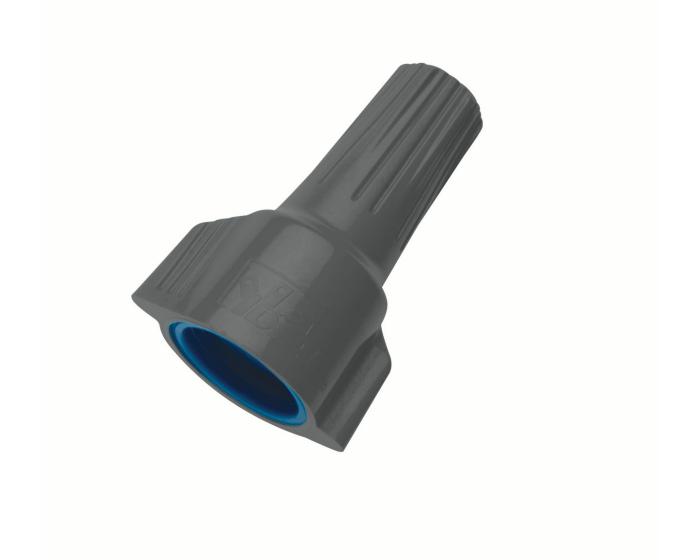

IDEAL® WEATHERPROOF® 30-1163 63® Series Wire Connector, Winged Shell, Live Action/Square Wire Spring, 16 to 6 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
100% Silicone-based sealant protects against moisture and corrosionUL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applicationsEasy to apply, pre-filled twist-on wire connectorsSwept wing design is built for comfort and efficiencyEliminates the need for heat-shrink or excessive tapingTough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)Models 61 and 63 approved for bonding and grounding applicationsFor use in damp/wet location or above-grade applicationsConnected and protected.Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone-based sealant protects against moisture and corrosion, eliminating the need for heat-shrink or excessive taping.WeatherProof Wire Connectors feature tough, flame-retardant shells that withstand most rugged environmental extremes and are listed to UL 486D for use in damp or wet locations that are above ground.Due to the pre-filled silicone sealant, WeatherProof Wire Connectors are designed as a one-use only connection.Not for use in continual submersion applications.
-
BrandIDEAL®
-
UPC783250758166
-
Manufacturer Part Number30-1163
-
CountryUSA
-
Temperature Rating105 deg C
-
MaterialThermoplastic Polyester
-
ColorGray
-
Voltage Rating600 V AC
-
Series63® Series
-
Wire Size16 to 6 AWG
-
Wire TypeSolid/Stranded Copper
-
Shell StyleSwept Wing/Twist-On
-
Dimensions0.81 in Dia x 1.0625 in W x 1.59375 in H
-
Specifications5/8 in Wire Strip, (3) 14 AWG Minimum, (2) 8 AWG, (1) 10 AWG Maximum Conductor Combination Size
-
Spring TypeLive Action/Square Wire
- 100% Silicone-based sealant protects against moisture and corrosion
- Swept wing design is built for comfort and efficiency
- Eliminates the need for heat-shrink or excessive taping
- Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
- Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
- Tough, UL 94V-2 flame-retardant shell rated at 105 deg C (221 deg F)Models 61 and 63 approved for bonding and grounding applications
- Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
-
Alternative Part Number12095492
-
UNSPSC39121445
-
IDEA Index ID12095492
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|CE Marking|CSA Certified|RoHS Compliant|UL 486C/486D|UL 94 V-2 Flammability Rated
-
RoHS
