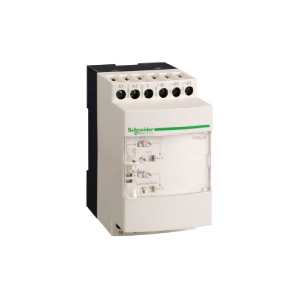

Square-D 0.3 TO 0.5-AMP CURRENT RELAY SQU RM-4-JA-32-F

Name: Square-D 0.3 TO 0.5-AMP CURRENT RELAY SQU RM-4-JA-32-F
Brand: Schneider Electric
SKU: SQURM4JA32F
Price: 805.78 USD
Availability: InStock

0 Ratings

$805.78

SKU: SQURM4JA32F

GTIN (EAN,ISBN): 00785901481560

Schneider Electric Zelio™ RM4JA32F Current Measurement Relay, 100/130 VAC, 0.3/15 A, 2CO, 0.3/0.5 A Trip Delay

In Stock

HCI of Jackson: 0

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: Current Sensing Relays

Main specs

Brand

Schneider Electric
UPC

785901481560
Manufacturer Part Number

RM4JA32F
Country

USA

Specification

Terminal Type

Threaded
Frequency Rating

50/60 Hz
Contact Configuration

2CO
Mounting Type

Rail
Voltage Rating

100/130 VAC
Amperage Rating

0.3/15 A
Sensor Type

NPN Inductive
Series

RM4J
Dimensions

78 mm H x 45 mm W x 80 mm D

Features

Adjustable 0.05/30 sec time delay type, 5 mm pitch
Overcurrent or undercurrent detection relay monitored parameter, 1.9/3.3 VAC power consumption
1/5 A current AC, 1/5 A current DC, 3/15 A current AC, 3/15 A current DC, 300/1500 mA current AC, 300/1500 mA current DC measurement range
2 C/O contacts type and composition, 0.85/1.1 Uc control circuit voltage limits
<=80 ms measuring cycle, 0.006 Ohm, 0.02 Ohm, 0.06 Ohm internal input resistance
2 A, 20 A, 7 A permissible continuous overload, 10 A for <=3 sec, 100 A, 15 A permissible non repetitive overload
+/-5% setting accuracy of the switching threshold, 10 P setting accuracy of time delay
<=0.06%/deg C depending permissible ambient air temperature, <=0.5% within the supply voltage range (0.85/1.1 un) switching threshold drift
<=0.07%/deg C depending on temperature, <=0.5% within the supply voltage range (0.85 to 1.1 unit) time delay drift
5/30% adjustable of current threshold setting hysteresis, CE : EMC 89/336/EEC, CE : LVD 73/23/EEC marking
III conforming/IEC 60664-1 overvoltage category, 500 V conforming/IEC rated insulation voltage
>0.1 Uc supply disconnection value
Any position without derating operating position, 0.6/1.1 Nm tightening torque
Screw terminals 2 x 1.5 sq-mm, flexible cable with cable end screw terminals 2 x 2.5 sq-mm, flexible cable without cable end connection
30000000 cycles mechanical durability, 8 A conventional free air thermal current
10 mA at 12 V switching capacity, <=440 VAC, 250 VAC switching voltage, 2 cables
(15-16-18)OC, (25-26-28)OC, (A1-A2)CO, (C-B1-B2-B3)CO terminals description ISO n deg 1
Tripped if A measured >A set, Tripped if V measured >V set output relay state
-40/85 deg C ambient air temperature for storage, -20/65 deg C ambient air temperature for operation
3K3 environmental characteristic, 15/85% conforming/IEC 60721-3-3 relative humidity
