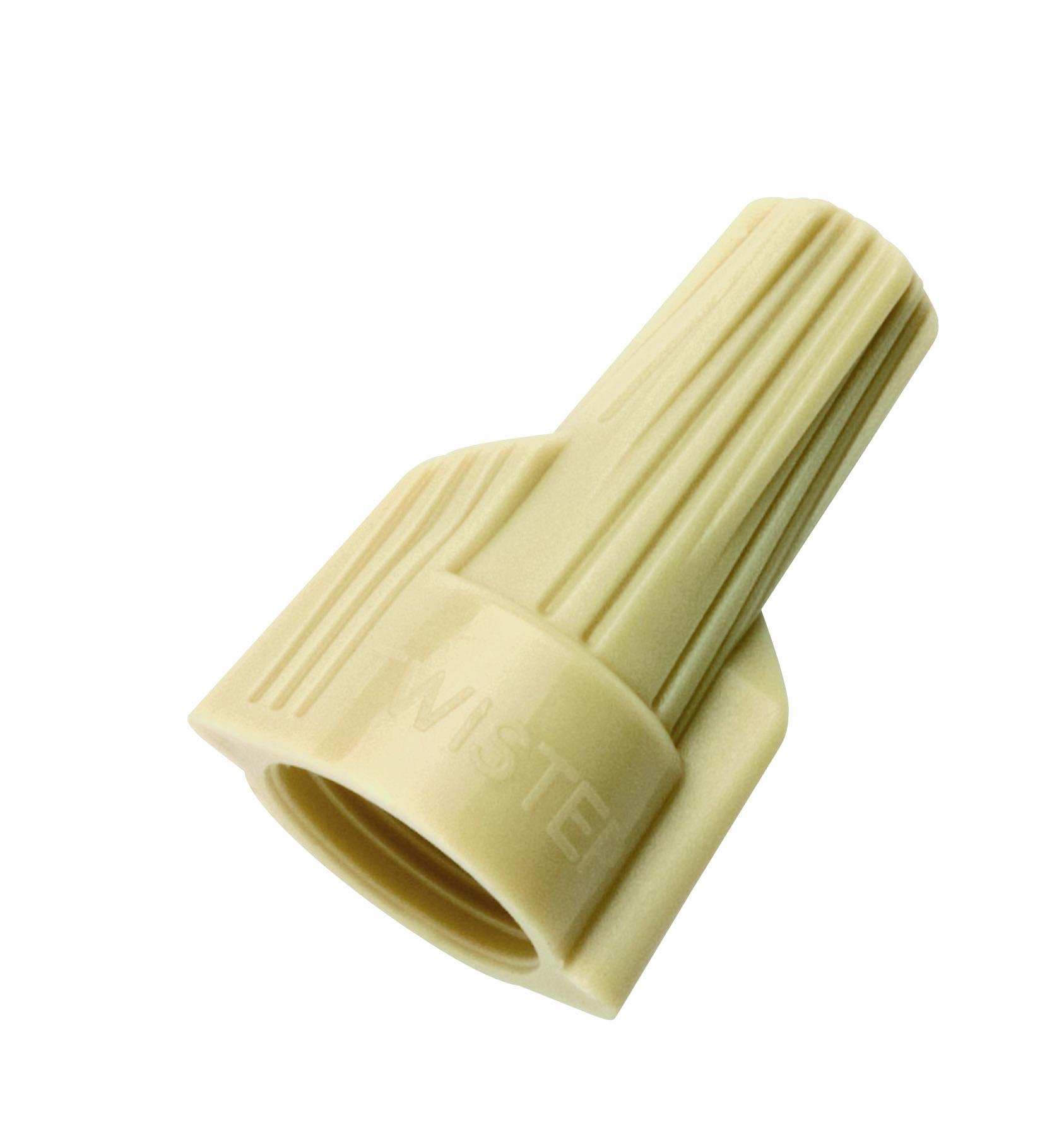

IDEAL® TWISTER® 30-341 341® Flame-Retardant Wire Connector, Positive Grip/Winged Shell, Live Action/Square Wire Spring, 22 to 8 AWG Solid/Stranded Copper Wire, Polypropylene
Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available. These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians. With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections.The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation. The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength. Additionally, The Twister can easily be removed for repeat use on the same size or larger wire combinations.
-
BrandIDEAL®
-
UPC783250303410
-
Manufacturer Part Number30-341
-
CountryUSA
-
Temperature Rating221 deg F
-
MaterialPolypropylene
-
ColorTan
-
TypeFlame-Retardant
-
Voltage Rating600 V AC
-
Series341®
-
Wire Size22 to 8 AWG
-
Wire TypeSolid/Stranded Copper
-
Shell StylePositive Grip/Winged
-
Dimensions0.54 in Dia x 0.72 in W x 1.14 in H
-
Specifications1/2 in Wire Strip, 1 to 6 Conductors, 22 to 3 AWG Minimum, 10 to 3 AWG Maximum Conductor Combination Size
-
Spring TypeLive Action/Square Wire
- Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available
- These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians
- With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded
- The copolymer shell expands for smooth, progressive tightening ensuring dependable connections
- The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation
- The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength
- 1000 V maximum in fixtures and signs
- Ribbed cap provides a secure grip and fast fingertip starts
- Live action, square wire spring locks onto wire for safe and secure connections
- Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 24Z629 |
| 514312 |
-
Alternative Part Number8316169
-
UNSPSC39121445
-
IDEA Index ID8316169
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 188|Federal Specification W-S-610E|IEC 998-2-4|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
-
RoHS
