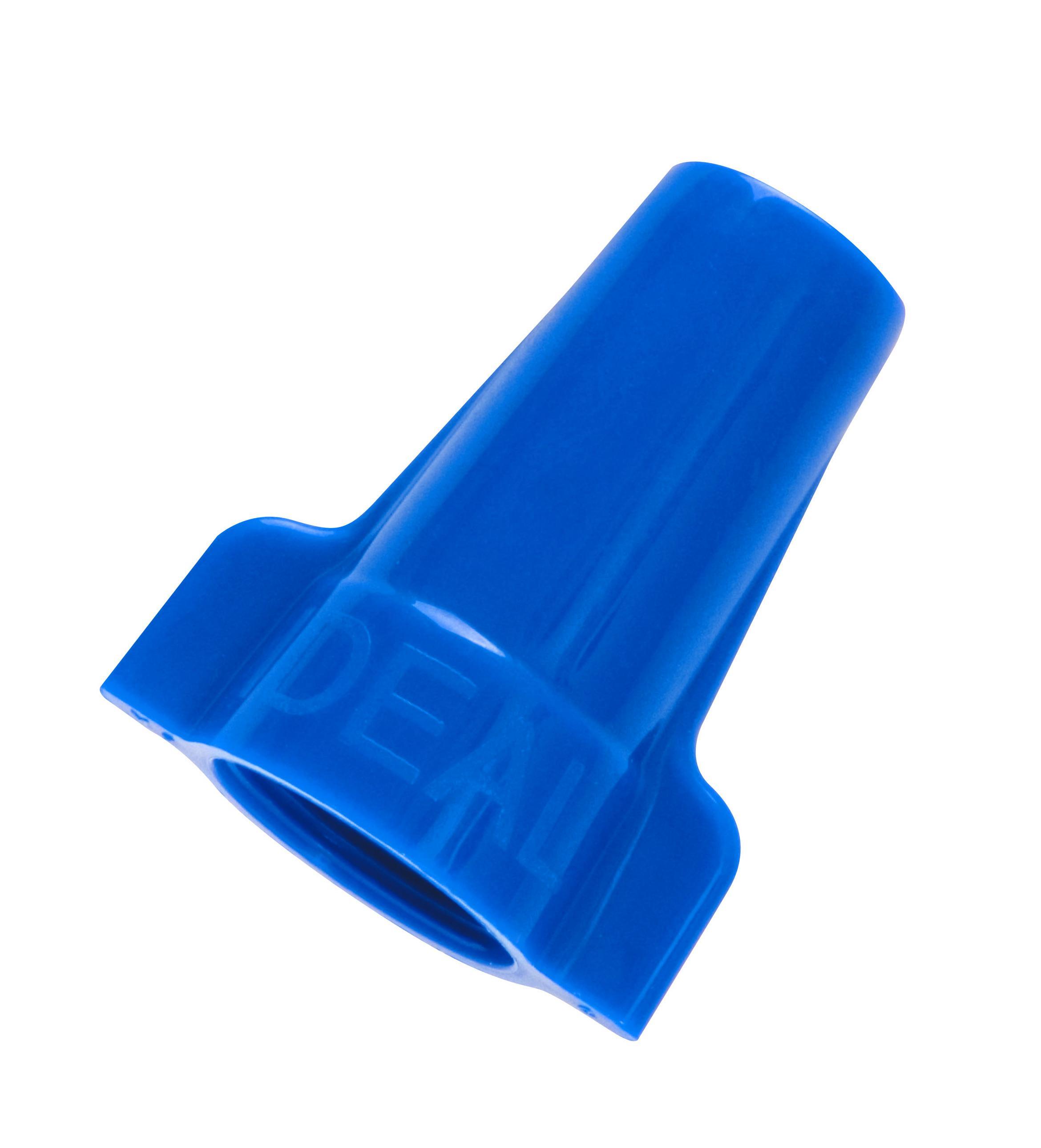

IDEAL® Wing-Nut® 30-454 454® Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 14 to 6 AWG Solid/Stranded Wire, Polypropylene
Largest range in the Industry - from 2 #18 to up 4 #10High-leverage, contoured wing provides superior torque on every twistWide range, live-action spring handles small combinations and expands to accommodate large combinations as you need itCopolymer shell expands for smooth, progressive tightening providing dependable connectionsRemovable for repeat usage on same size or larger combinationsMore power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.
-
BrandIDEAL®
-
UPC783250304547
-
Manufacturer Part Number30-454
-
CountryUSA
-
Temperature Rating221 deg F
-
FinishZinc Plated
-
MaterialPolypropylene
-
ColorBlue
-
TypeFlame-Retardant
-
Voltage Rating600 V AC
-
Series454®
-
Wire Size14 to 6 AWG
-
Wire TypeSolid/Stranded
-
Shell StyleWinged
-
Dimensions0.78 in Dia x 1.2 in W x 1.45 in H
-
Specifications7/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 12 to 3 AWG Minimum, 6 to 1 AWG with 8 to 2 AWG Maximum Conductor Combination Size
-
Spring TypeLive Action/Square Wire
- High-leverage, contoured wing provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations
- For tough environmental conditions
- Square wire spring threads directly onto conductors for fast and secure connections
- High-leverage, contoured wing provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4FA28 |
-
Alternative Part Number8316380
-
UNSPSC39121445
-
IDEA Index ID8316380
-
Standards/ApprovalsCSA C22.2 No. 188|Federal Specification W-S-610E|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
-
RoHS
-
Owners/User Manual
