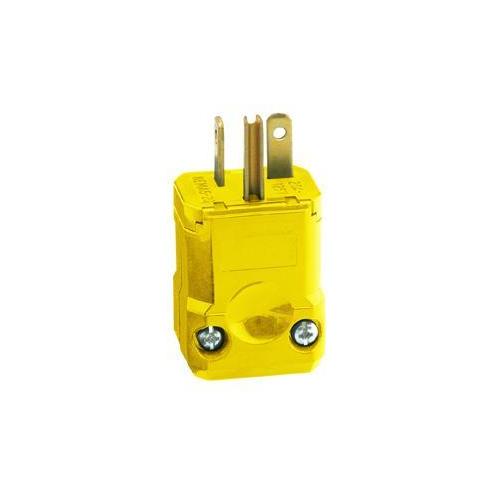

Leviton® 5356-VY Cable Mount Grounding High Visibility Straight Blade Plug, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
-
BrandLeviton®
-
UPC078477055069
-
Manufacturer Part Number5356-VY
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorYellow
-
TypeCable Mount Grounding High Visibility
-
GradeIndustrial
-
NEMA RatingNEMA 5-20P
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.655 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.81 in H x 1.41 in W x 1.22 in D
-
Number of Wires3
- Hinged design for fast, easy, installation and assembly
- Super tough high impact nylon body
- Triple drive standard screws for easy wiring
- Clear thermoplastic back cover for easy visual inspection of wiring
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 10 AWG terminal accommodation
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Features hinged design for fast, easy, installation and assembly
- 8 to 10 AWG terminal accommodation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25KU90 |
-
Alternative Part Number7333091
-
UNSPSC39121402
-
IDEA Index ID7333091
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
