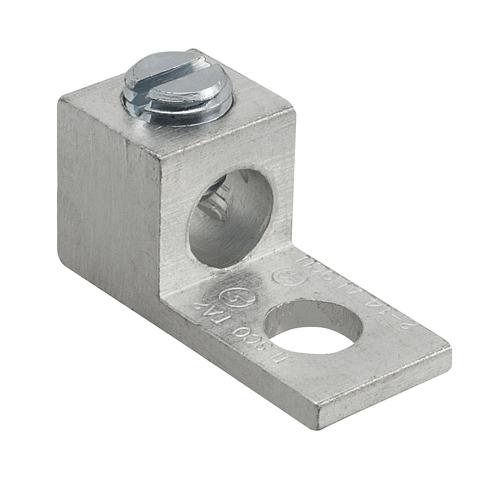

ILSCO® ClearChoice® TA-2 Dual-Rated Mechanical Lug, 14 to 2 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
ILSCO® ClearChoice® TA-2 Dual-Rated Mechanical Lug, 14 to 2 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
-
BrandILSCO®
-
UPC783669887747
-
Manufacturer Part NumberTA-2
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectro-Plated Tin
-
MaterialAluminum
-
TypeDual-Rated
-
Conductor Size14 to 2 AWG
-
Conductor TypeAluminum/Copper
-
Voltage Rating2000 V AC
-
Number of Bolt Holes1
-
SeriesTA Series
-
Dimensions1.1563 in L x 0.5 in W x 0.55 in H
-
Specifications1-Conductor, Slotted Screw
-
Stud Size1/4 in
- Chamfered wire entry provides ease of installation
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 14 to 2 AWG or (2) 14 to 10 AWG copper or (2) 12 to 10 AWG aluminum conductor size
-
Alternative Part Number7780337
-
UNSPSC39121408
-
IDEA Index ID7780337
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR29601|UL 486A-B|UL 453G|UL File No. E6207|ECCN EAR99
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
