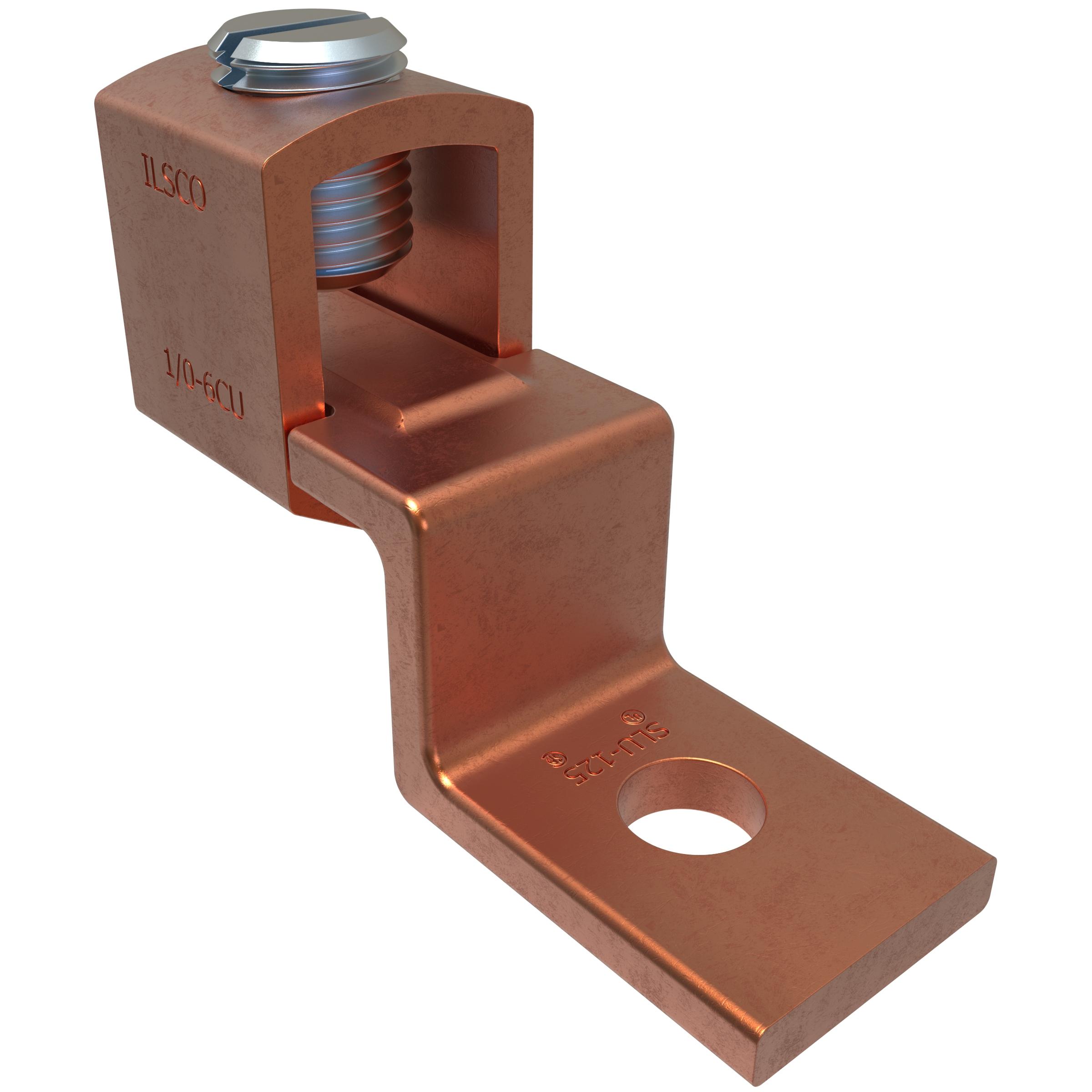

ILSCO® ClearChoice® SLU-125 1-Conductor Compact Mechanical Lug, 6 to 1/0 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper
ILSCO® ClearChoice® SLU-125 1-Conductor Compact Mechanical Lug, 6 to 1/0 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper
-
BrandILSCO®
-
UPC783669831641
-
Manufacturer Part NumberSLU-125
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectrolytic
-
MaterialCopper
-
Type1-Conductor Compact
-
Conductor Size6 to 1/0 AWG
-
Conductor TypeCopper
-
Voltage Rating2000 V AC
-
Number of Bolt Holes1
-
SeriesSLU
-
Dimensions1.9688 in L x 0.625 in W
-
SpecificationsSlotted Hex, V-Bottom Collar
-
Stud Size1/4 in
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
-
Alternative Part Number7779582
-
UNSPSC39121408
-
IDEA Index ID7779582
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-29601|UL 486A/B/453G|E6207
-
