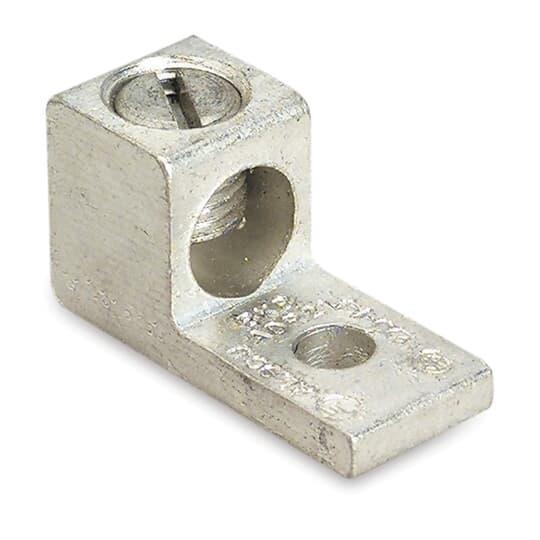

Blackburn® ADR21 Type ADR-ALCUL Dual Rated Mechanical Connector, 14 to 2/0 AWG Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
-
BrandBlackburn®
-
UPC783786610082
-
Manufacturer Part NumberADR21
-
CountryUSA
-
FinishTin Coated
-
MaterialAluminum
-
TypeType ADR-ALCUL Dual Rated
-
Conductor Size14 to 2/0 AWG
-
Conductor TypeAluminum/Stranded Copper
-
Voltage Rating600 V AC
-
Number of Bolt Holes1
-
Dimensions1-15/32 in L x 5/8 in W x 25/32 in H
-
Specifications1-Conductor, Slotted Screw, 1/4 in Hole Spacing
-
Stud Size1/4 in
- Easy installation - no special tools required
- Tin plated for low contact resistance
- Slotted screw-on lugs up through 2/0 stranded
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3LN35 |
-
Alternative Part Number7TAH006600R0199
-
UNSPSC39121408
-
IDEA Index ID10733542
-
Package DescriptionEACH
-
Standards/ApprovalsUL E9809 / UL E9809
-
Specification Sheet
-
Instruction/Installation Manual
