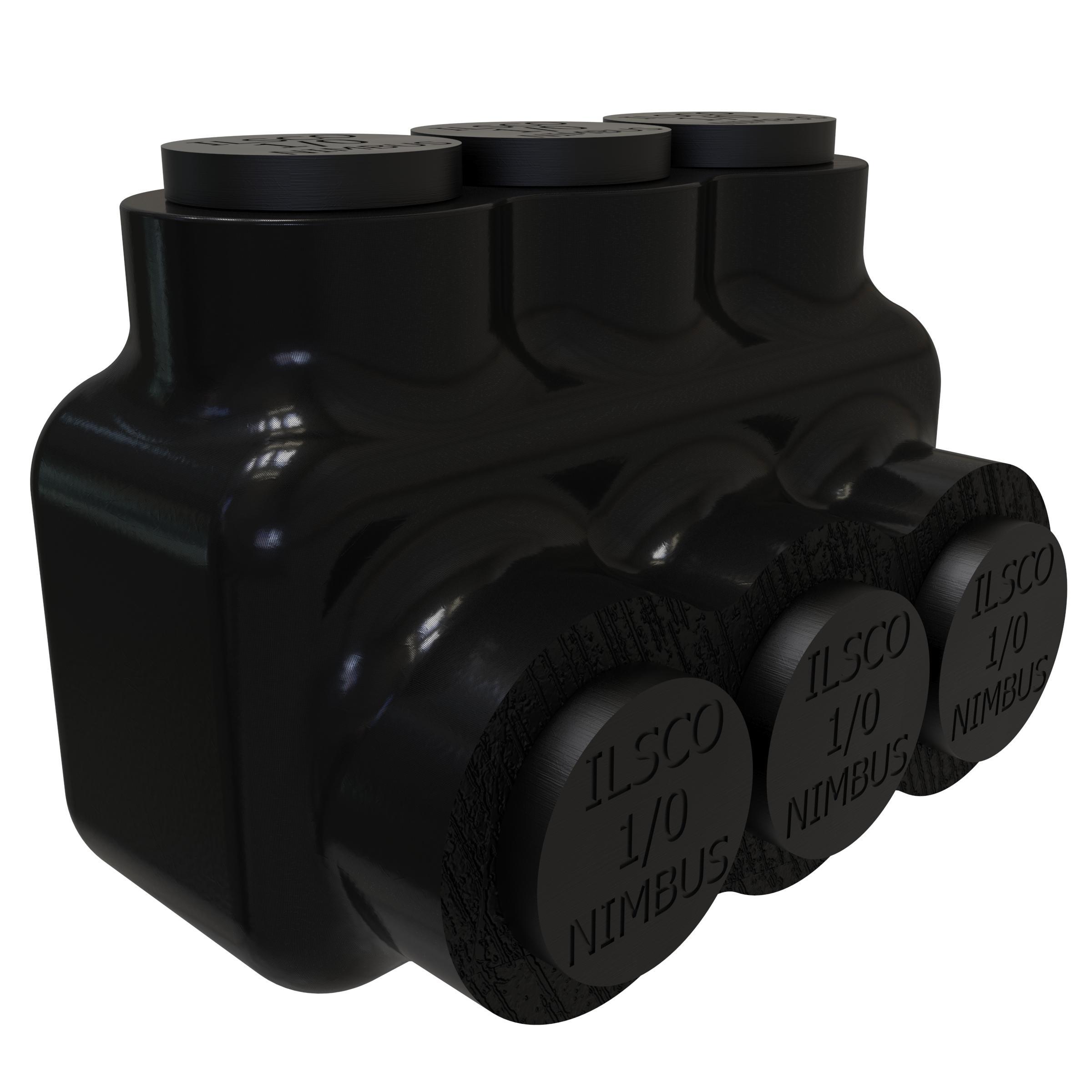

ILSCO® NIMBUS® PBTS-3-1/0 Type PBTS 1-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
ILSCO® NIMBUS® PBTS-3-1/0 Type PBTS 1-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
-
BrandILSCO®
-
UPC783669079265
-
Manufacturer Part NumberPBTS-3-1/0
-
CountryUSA
-
Temperature Rating-45 to 90 deg C
-
MaterialAluminum
-
TypeType PBTS 1-Sided Entry 3-Port Dual Rated Insulated
-
Conductor TypeAluminum/Copper
-
Voltage Rating600 V AC
-
Dimensions2.29 in L x 1.53 in W x 1.63 in H
-
Specifications14 to 1/0 AWG Wire, 3/16 in Hex, 170 A
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical resistant
- Incoming and outgoing conductors must be staggered
-
Alternative Part Number7764440
-
UNSPSC39121408
-
IDEA Index ID7764440
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
-
