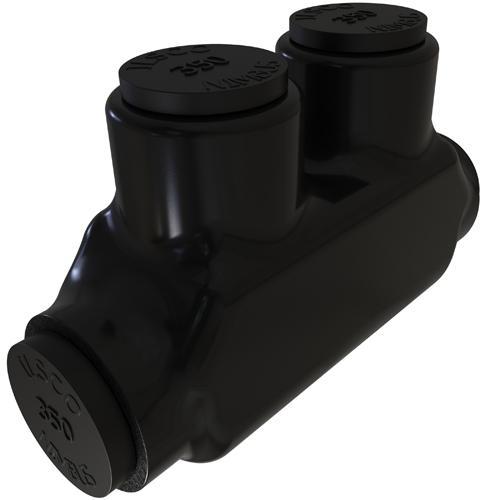

ILSCO® NIMBUS® PBT-350 Type PBT 2-Port 2-Wire Dual Rated Insulated Splicer/Reducer Connector, Aluminum/Copper Conductor, Aluminum
ILSCO® NIMBUS® PBT-350 Type PBT 2-Port 2-Wire Dual Rated Insulated Splicer/Reducer Connector, Aluminum/Copper Conductor, Aluminum
-
BrandILSCO®
-
UPC783669077049
-
Manufacturer Part NumberPBT-350
-
CountryUSA
-
Temperature Rating-45 to 90 deg C
-
MaterialAluminum
-
TypeType PBT 2-Port 2-Wire Dual Rated Insulated
-
Conductor TypeAluminum/Copper
-
Voltage Rating600 V AC
-
Dimensions4.75 in L x 1.31 in W x 2.43 in H
-
Specifications6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
-
Alternative Part Number7763578
-
UNSPSC39121408
-
IDEA Index ID7763578
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
-
Warranty Information
-
Specification Sheet
