ILSCO_PBTS_3_500
ILSCO_PBTS-3-500

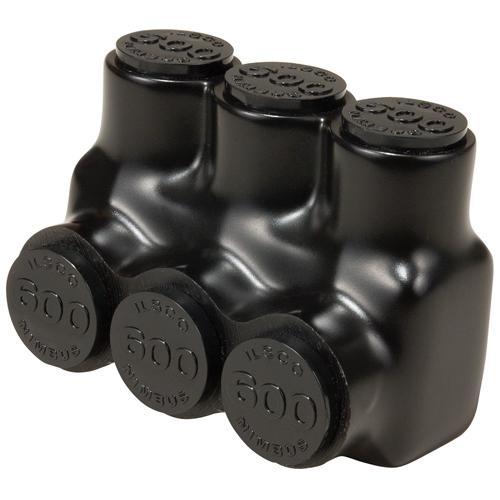

ILSCO® NIMBUS® PBTS-3-500 Type PBTS 1-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum

0 Ratings
$110.47
In Stock
SKU: ILSPBTS3500
GTIN (EAN,ISBN): 00783669080308
noimage_new

ILSCO® NIMBUS® PBTS-3-500 Type PBTS 1-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 6
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Mechanical Multiple Cable Taps
Main specs
  • Brand
    ILSCO®
  • UPC
    783669080308
  • Manufacturer Part Number
    PBTS-3-500
  • Country
    USA
Specification
  • Temperature Rating
    -45 to 90 deg C
  • Material
    Aluminum
  • Type
    Type PBTS 1-Sided Entry 3-Port Dual Rated Insulated
  • Conductor Type
    Aluminum/Copper
  • Voltage Rating
    600 V AC
  • Dimensions
    4.12 in L x 2.28 in W x 3.04 in H
  • Specifications
    4 AWG to 600 kcmil Wire, 3/8 in Hex, 475 A
Features
  • Broad wire range 14 AWG to 750 kcmil
  • High dielectric strength plastisol is chemical resistant
  • Black cover is UV rated
  • Removable port and screw plugs
  • Pre-filled with DE-OX® oxide inhibiting compound
  • Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
  • Flexibility in the field
  • Ensures reliability
  • Patented screw design
  • Entry port closure
  • Prevents oxides from forming
  • Chemical resistant
  • Incoming and outgoing conductors must be staggered
Additional Information
  • Alternative Part Number
    7764864
  • UNSPSC
    39121408
  • IDEA Index ID
    7764864
  • Package Description
    EACH
  • Standards/Approvals
    CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Attachments
Reviews

There are yet no reviews for this product.
