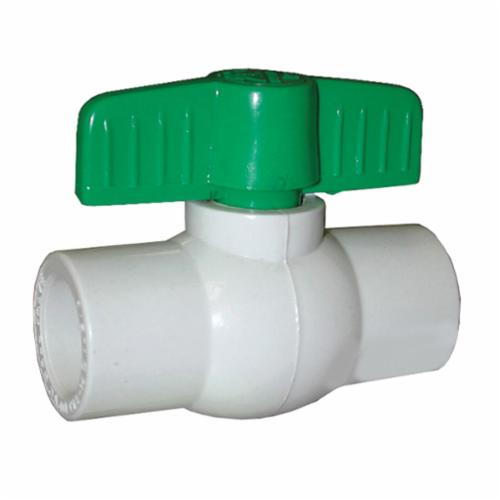

Jones B-90-050 1/2" SOCKET PVC BALL VALVES
Jones Stephens™ B90050 1-Piece Ball Valve, 1/2 in, Solvent, PVC Body, Standard Port, EPDM Softgoods
-
BrandJones Stephens™
-
UPC717510900507
-
Manufacturer Part NumberB90050
-
CountryUSA
-
Temperature Rating73 deg F
-
Port TypeStandard
-
Pressure Rating150 psi
-
Trim MaterialEPDM Seat
-
Type1-Piece
-
Nominal Size1/2 in
-
Softgoods MaterialEPDM
-
Body MaterialPVC
-
End StyleSolvent
- Quarter turn operation
- Not for compressed air
- Solvent ends comply with ASTM D2466
- Threaded ends comply with ANSI B2.1
- Large flow opening
- You need it we got it item
- EPDM O-ring
-
UNSPSC40141607
-
Package Description1/CTN
-
Standards/ApprovalsANSI B2.1|ASTM D2466|NSF Approved
-
Specification Sheet
