NIBCO 89-145-64-A 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic

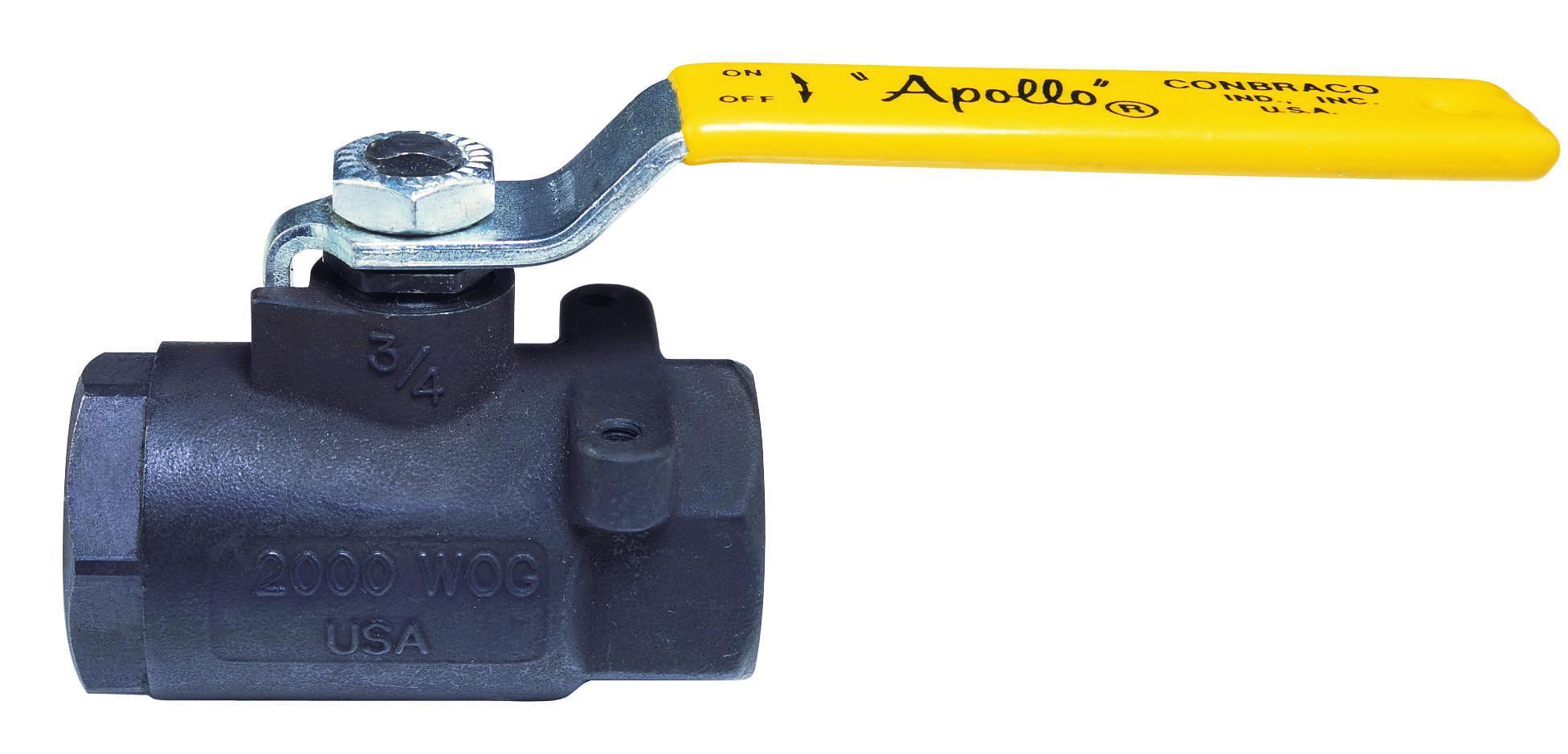

Apollo™ 8914564A 89-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750153723
-
Manufacturer Part Number8914564A
-
CountryUSA
-
Port TypeStandard
-
Pressure Rating2000 psi CWP
-
Top to Inlet Center2.16 in
-
MediaGas/Water
-
Trim Material316 Stainless Steel/MPTFE
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size1 in
-
Series89-140
-
Ball MaterialStainless Steel
-
Inlet to Outlet Length3.34 in
-
Softgoods MaterialMPTFE/PTFE
-
Domestic/ImportDomestic
-
Body MaterialCarbon Steel
-
Orifice Size0.87 in
-
End StyleFNPT
- Adjustable packing gland
- 64 - 250 lb steam trim (MPTFE seats and packing)
- Investment Cast Components
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Mounting pad for easy actuator mounting
- Cold non-shock body rating
- 150 psig saturated steam
- Reinforced Seats
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | A8914564A |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsAmerican Iron & Steel (AIS)|Build America Buy America (BABA) Act|Buy American Act (BAA)|NACE MR0175 (2000)/MR0103 (2003)|API 607|ASTM A216 Body|ASTM A276 Stem/Ball|CSA CGA 3.16-M88|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-

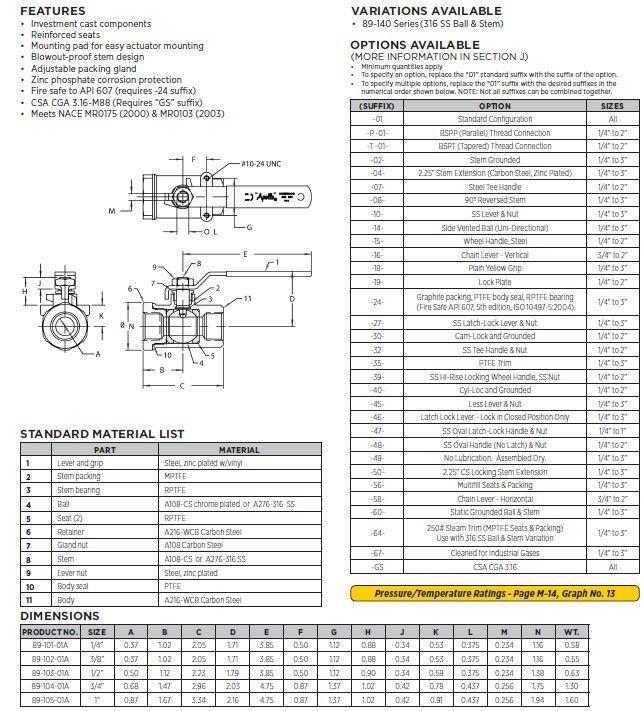

Specification Sheet
-
Owners/User Manual
