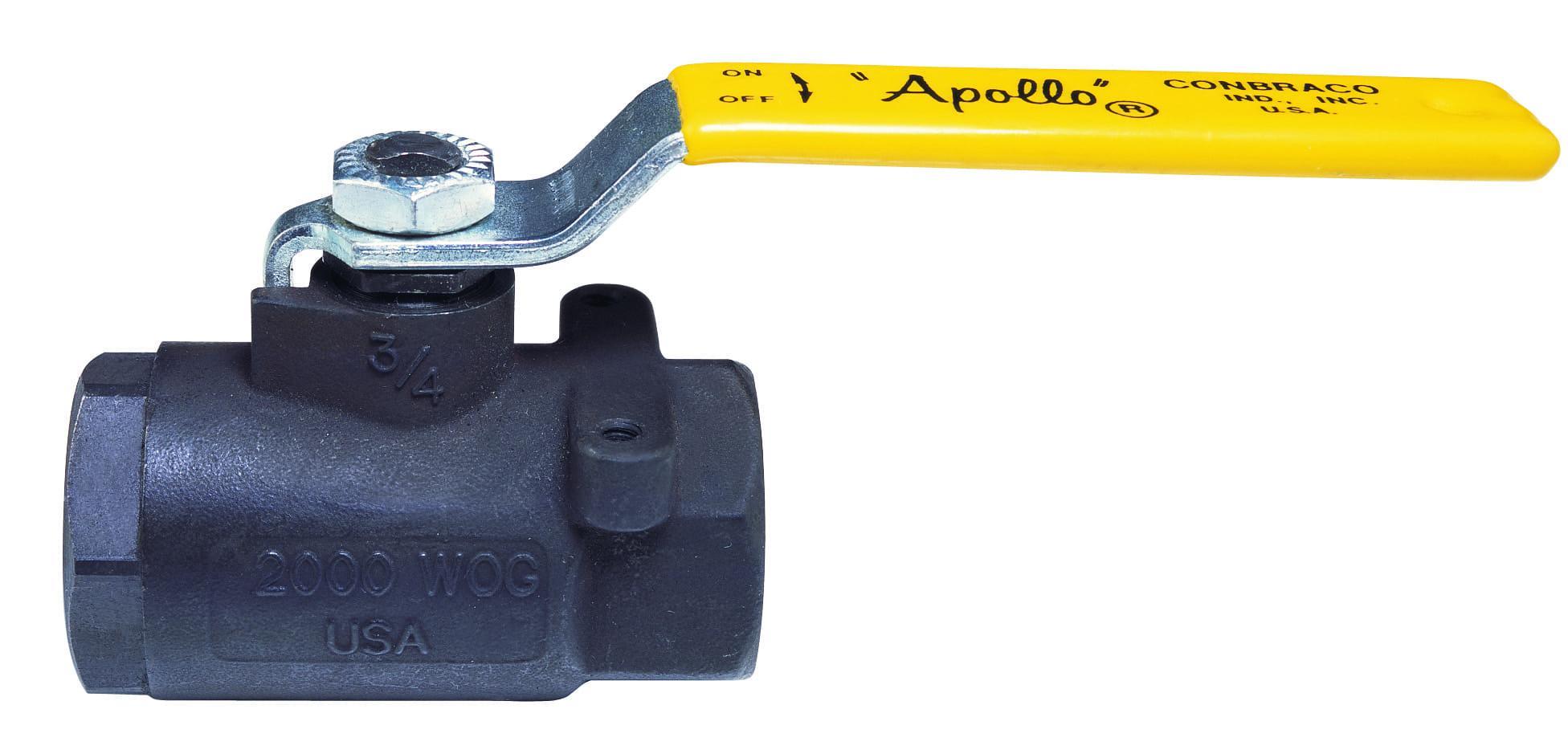

Apollo™ 8914501A 89-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
Apollo™ 8914501A 89-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750153457
-
Manufacturer Part Number8914501A
-
CountryUSA
-
Port TypeStandard
-
Pressure Rating2000 psi CWP
-
Top to Inlet Center2.16 in
-
MediaGas/Water
-
Trim Material316 Stainless Steel/PTFE
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size1 in
-
Series89-140
-
Ball Material316 Stainless Steel
-
Inlet to Outlet Length3.34 in
-
Softgoods MaterialMPTFE/PTFE
-
Domestic/ImportDomestic
-
Body MaterialCarbon Steel
-
Orifice Size0.87 in
-
End StyleFNPT
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- A216-WCB carbon steel body
- 150 psig saturated steam
- MPTFE stem packing and PTFE body seal
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | A8914501A |
-
UNSPSC40141607
-
IncludesAdjustable Packing Gland
-
Package Description10/BX
-
Standards/ApprovalsNACE MR0175 (2000)/MR0103 (2003)|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Catalog
-

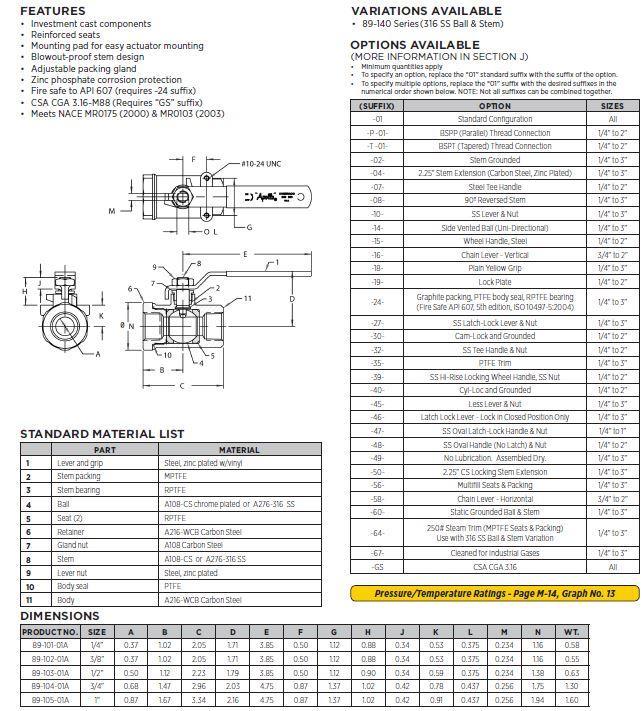

Specification Sheet
-
Owners/User Manual
