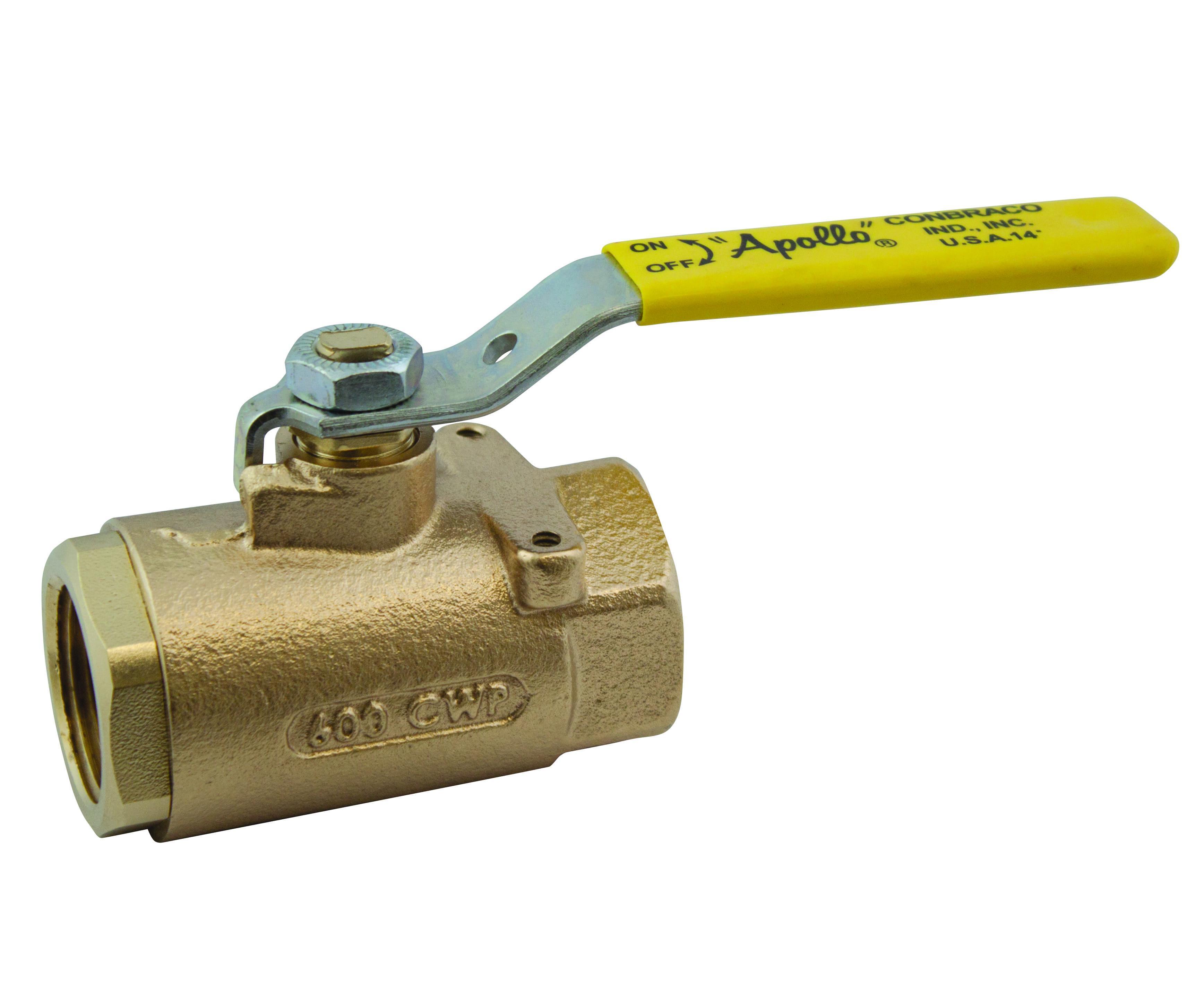

NIBCO 71-107-01 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
The Apollo™ 71 series is a standard port bronze ball valve with direct mounting pad. It is made from proven ASTM grade materials for long service satisfaction.
-
BrandApollo™
-
UPC670750677700
-
Manufacturer Part Number7110701
-
CountryUSA
-
Temperature Rating500 deg F
-
Port TypeStandard
-
Pressure Rating600 psi CWP
-
Top to Inlet Center2.87 in
-
Trim MaterialBrass Stem/PTFE Seat
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size1-1/2 in
-
Series71-100
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length4.37 in
-
Softgoods MaterialRPTFE/MPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleFNPT
- 01 - Standard Configuration
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blow-out proof stem
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock
-
UNSPSC40141607
-
Package Description6/BX
-
Standards/ApprovalsASTM B584-C84400 Body|ASTM B16 Stem/Ball|ASTM B584-C84400 Retainer|MSS SP-110|Federal Specifications WW-V-35C|Type II|Composition:BZ|Style 3|CRN OC10908.5C|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-

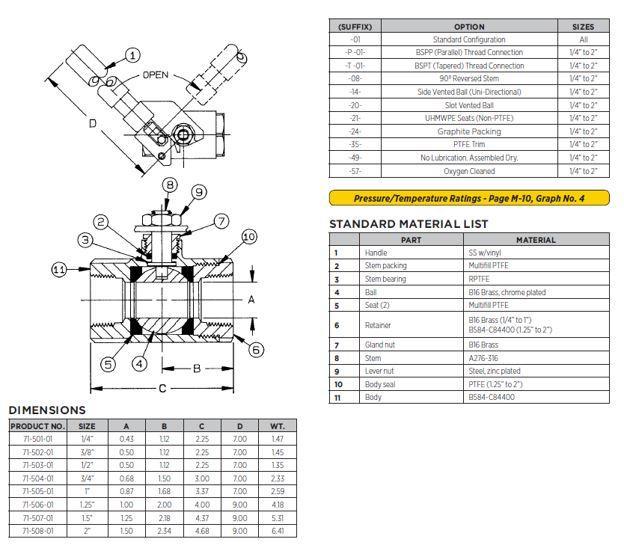

Specification Sheet
-
Owners/User Manual
