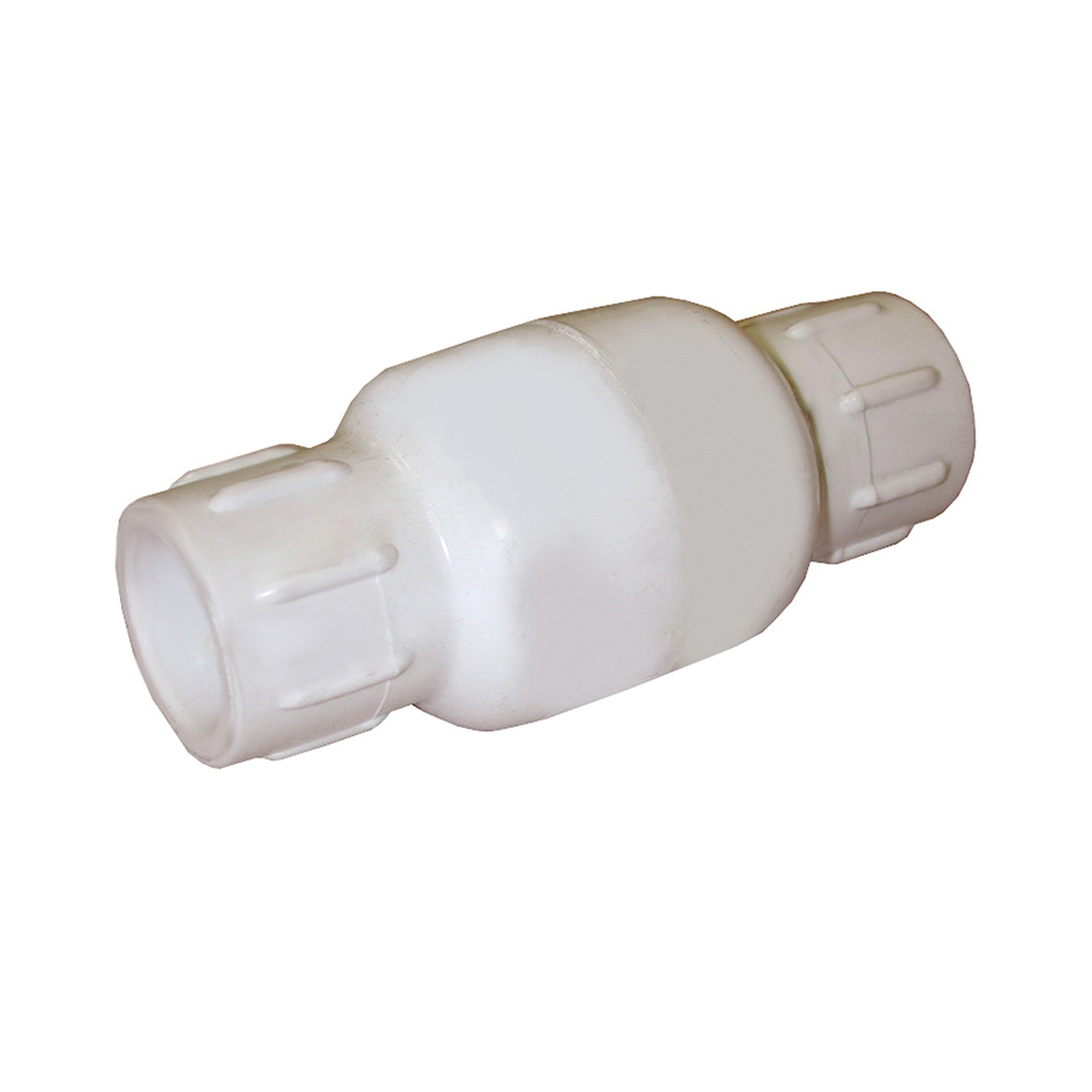

Jones C-30-050 1/2" SOCKET PVC CHECK VALVES
Jones Stephens™ C30050 In-Line Check Valve, 1/2 in, Solvent, PVC Body
-
BrandJones Stephens™
-
UPC717510300505
-
Manufacturer Part NumberC30050
-
CountryUSA
-
Temperature Rating77 deg F
-
Pressure Rating200 psi
-
Trim MaterialStainless Steel
-
Nominal Size1/2 in
-
Softgoods MaterialEPDM Seat
-
Body MaterialPVC
-
End StyleSolvent
- Maintenance-free operation
- 0.5 psi required to open unit
- Use anywhere to stop back flow and siphoning
-
UNSPSC40141622
-
Package Description30/CTN
-
