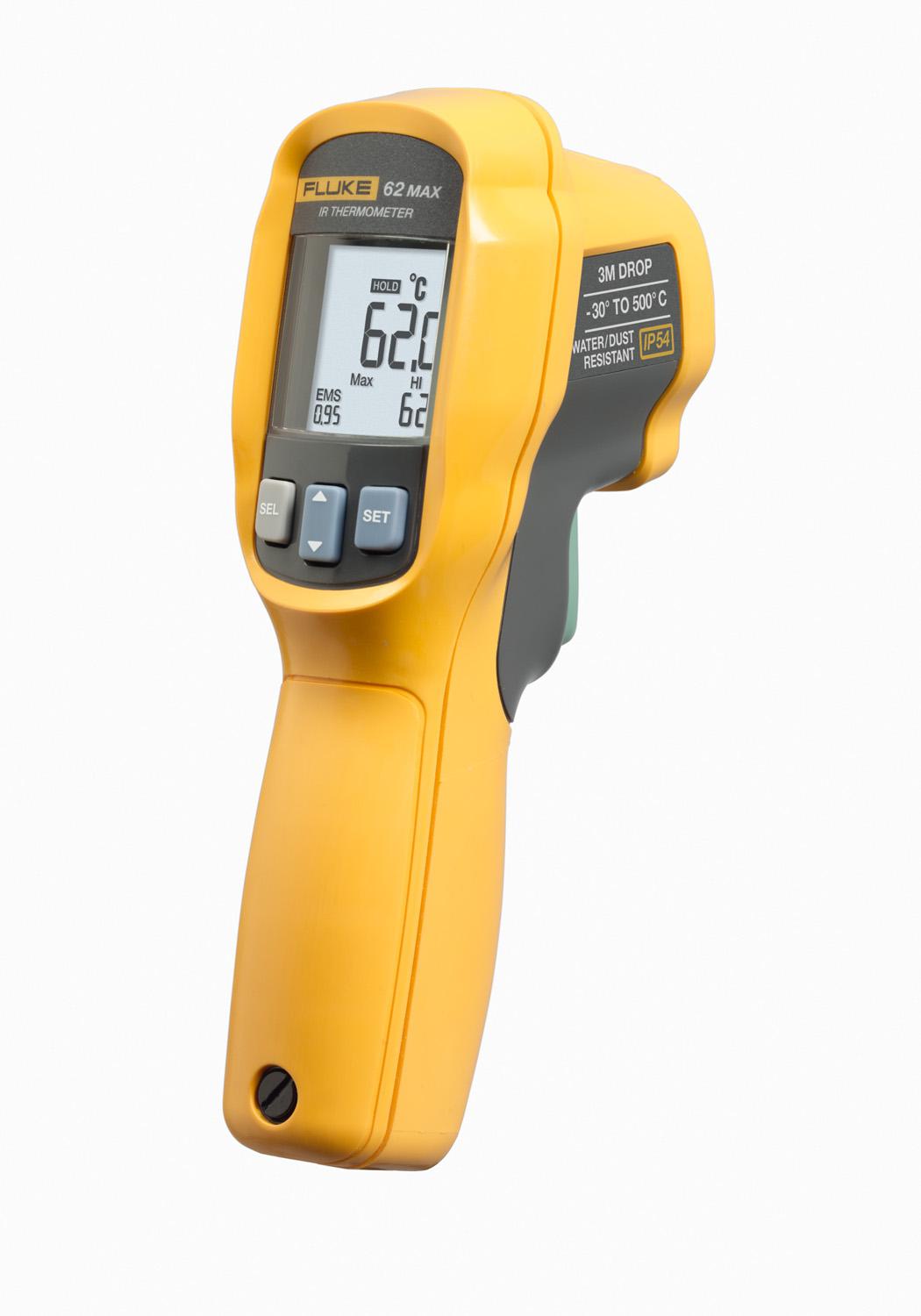

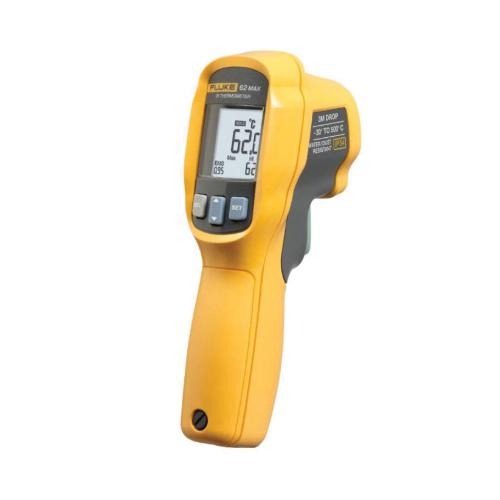

Fluke® FLUKE-62-MAX Mini Infrared Thermometer, 32 to 122 deg F, +/-1.5 deg C or +/-1.5% of Reading, Whichever is Greater, -10 to 0 deg C: +/-2.0, -30 to -10 deg C: +/-3.0 Accuracy, 10:1 Focus Spot, 0.1 to 1, AA Battery
The Fluke® 62 max infrared thermometer delivers many of the features of the Fluke® 62 max, but features a single laser and 10:1 distance to spot ratio. You can use the Fluke® 62 max to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves and vents. It is small in size and extremely easy to use. The single laser helps you pinpoint the target for more accurate readings and makes it easier to measure temperatures in hard to reach areas. With its IP54 rating for dust and water resistance you can rely the Fluke® 62 max to deliver accurate, repeatable temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites. And it's rugged enough to take a 3 m drop so no worries even if you work from a ladder.
-
BrandFluke®
-
UPC095969620208
-
Manufacturer Part NumberFLUKE-62-MAX
-
CountryUSA
-
Temperature Rating32 to 122 deg F
-
Focus Spot Size10:1
-
Resolution0.2 deg F
-
Response Time<500 ms (95% of Reading)
-
TypeMini
-
Accuracy+/-1.5 deg C or +/-1.5% of Reading, Whichever is Greater, -10 to 0 deg C: +/-2.0, -30 to -10 deg C: +/-3.0
-
Battery TypeAA
-
Dimensions6.88 x 3.34 x 2.95 in
-
Display TypeBacklit LCD
-
Spectral Response8 to 14 um
-
Laser SightingSingle Laser
-
Emissivity0.1 to 1
- Provides a 10:1 distance to spot ratio
- Offers single laser targeting for accurate and repeatable measurements
- Features IP54 rating against dust and moisture
- High and low alarms for rapid detection of temperatures outside the limits
- Powered by a single, standard AA battery
- Withstands a 3 m drop
- Offers small, lightweight form factor to clip comfortably to your tool belt or belt loop or easily fit in your toolbox
- Features a large, backlit display to make data easier to read, even in dark areas
- Displays min max/avg/dif - the minimum, maximum or average temperature or the difference between two measurements
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 37311180 |
| MSC | 37311180 |
-
Alternative Part Number4130474|11791988
-
UNSPSC41112224
-
IDEA Index ID11791988
-
Package DescriptionBOX
-
Standards/ApprovalsECCN: EAR99|EMC/EN 61326-1/61326-2|EN 60825-1 Class II|EN 60825-1 Class II|EN/IEC 61010-1|FDA Approved
-
Warranty3 years
-
Specification Sheet
-
Full Engineering Drawing
