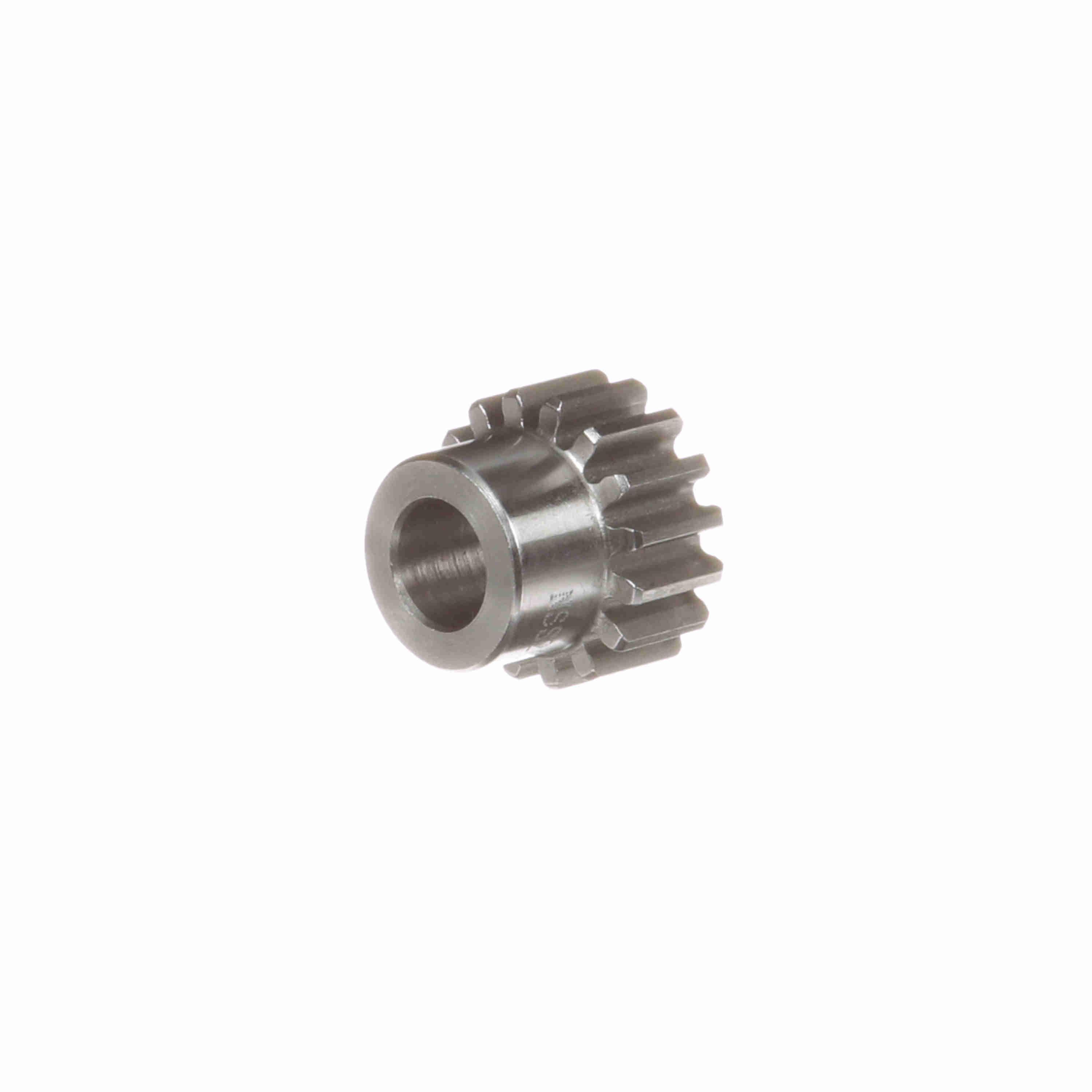

Browning® 1210558 Minimum Plain Bore Spur Gear, 20 Diametral Pitch, 14.5 deg, 3/8 in W Face, 16 Teeth, 0.8 in Dia Pitch, 3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289111763
-
Manufacturer Part Number1210558
-
CountryUSA
-
Face Width3/8 in
-
Pitch Diameter0.8 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter21/32 in
-
Hub Projection3/8 in
-
Diametral Pitch20
-
Number of Teeth16
-
Outside Diameter0.9 in
-
Bore Diameter3/8 in
-
Overall Length3/4 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS2016
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 year
-
Package DescriptionEACH
-
