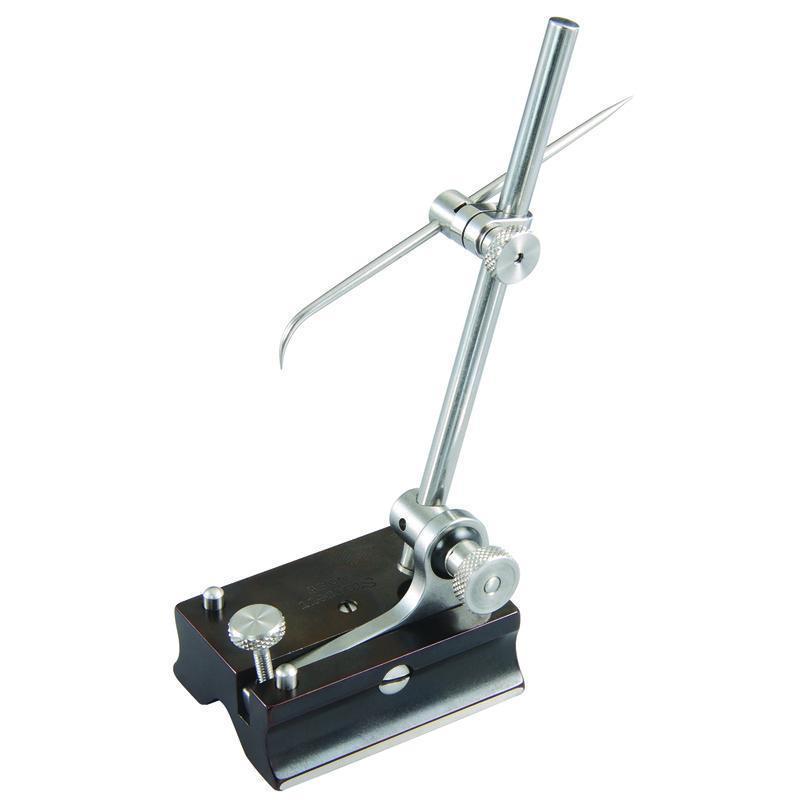

Starrett 4"-SPINDLE-STYLE SURFACE GAGES STR 56-A
Starrett Surface Gages are designed for a wide variety of uses. This is a basic tool for machinists and toolmakers. The main uses are for accurately scribing lines, transferring measurements and for probing surfaces in inspection work. 4" Spindle, 2" x 1 1/2" Base.
-
BrandStarrett®
-
UPC049659502893
-
Manufacturer Part Number56A
-
CountryUSA|Canada
-
MaterialHardened Steel Base
-
TypeSmall
-
Series56 Series
- The clamp is a strong forging
- Weighs only ten ounces (.28kg.) and takes up very little space in a toolbox
- Only 1-3/8 in (35mm) high, including the lower sleeve in the rocker arm
- Scriber has a 3/32 in (2.4mm) diameter and is 3-1/4 in (82mm) long
- 3/32 in Dia x 3-1/4 in L scriber
- 4 in L spindle
- 2 in L x 1-1/2 in W base
- Clamp only
- Clamp is a strong forging
- Ground bases for accurate reference surfaces
- V-Groove in the base for cylindrical work
- V-Groove on the front end which allows the spindle to adjust to any angle above or below the base
- A very positive fine adjustment through a rocker arm that makes for smooth and accurate settings
- Grooves on the side of the base for a sure and easy grip
- Nicely tapered scribers, so that you can see what you are doing
-
Alternative Part Number50289
-
UNSPSC41114508
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Full Engineering Drawing
