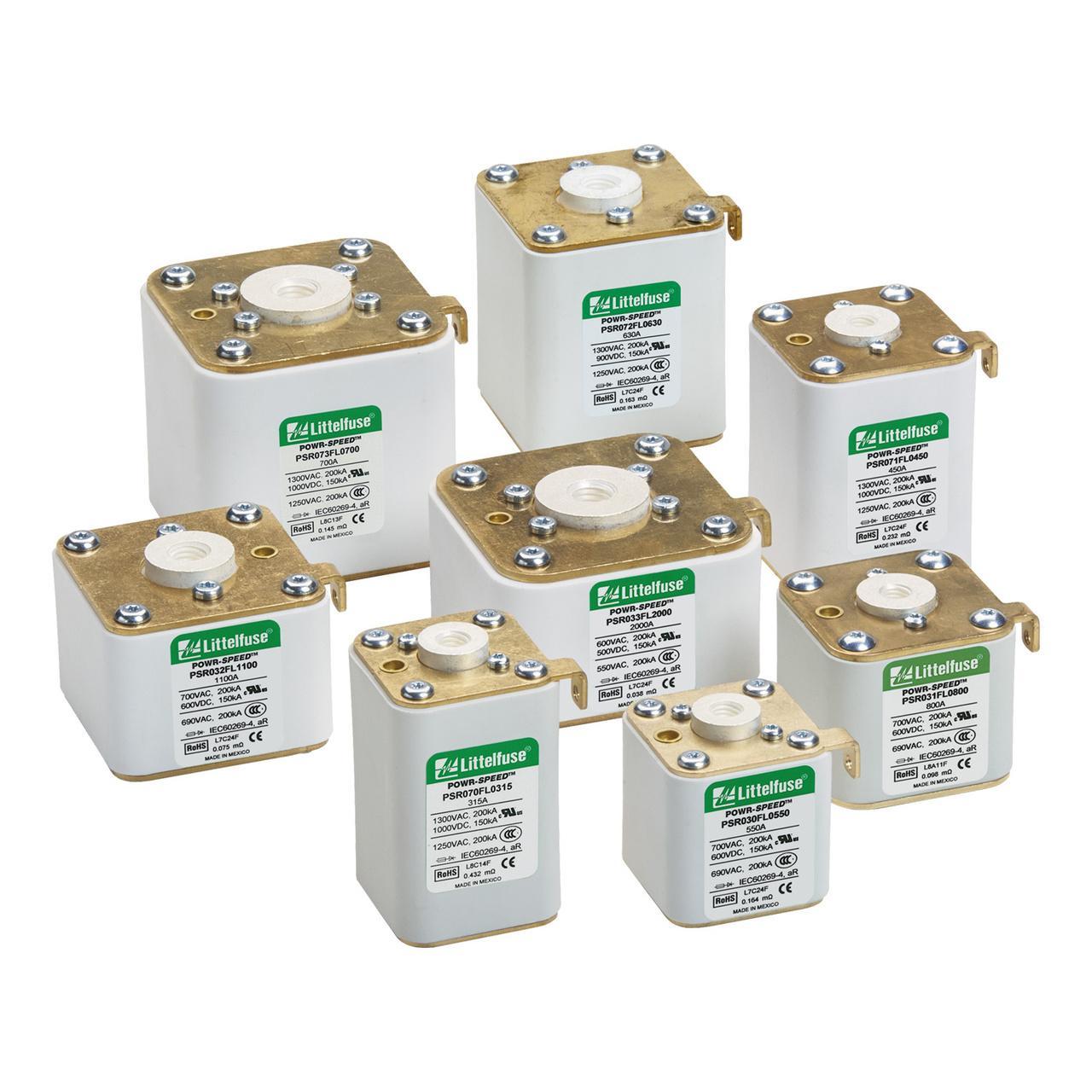

Littelfuse® POWR-SPEED® PSR033FL1400 High Speed Very Fast Acting Semiconductor Fuse, 1400 A, 690/700 V AC/500 V DC, 150/200 kA Interrupt, Class: Class aR, Square Body
Littelfuse® PSR series high speed square body fuses are specially designed for protection of power semiconductor devices such as diodes, TRIACs, IGBTs, SCRs, MOSFETs and other solid state devices that are typically designed into power conversion and power conditioning equipment. Variable frequency drives, inverters, UPS, rectifiers and soft-starters are examples of typical equipment designed with sensitive power semiconductor devices that cannot withstand any line surge or overcurrent conditions and require high speed protection. Littelfuse® POWR-SPEED® PSR series products offer optimized circuit protection at the extremely fast speed required to protect modern day power conversion devices. Such products are commonly found in numerous applications including pulp and paper industries, cranes and heavy lifting equipment, processing industries, wastewater treatment plants and various large factories and MRO facilities.
-
BrandLittelfuse®
-
UPC079458205176
-
Manufacturer Part NumberPSR033FL1400
-
CountryUSA|Canada
-
Terminal TypeFlush End Metric Thread
-
MaterialCeramic
-
ClassClass aR
-
TypeHigh Speed Very Fast Acting
-
Mounting TypeFlush End
-
Voltage Rating690/700 V AC/500 V DC
-
Amperage Rating1400 A
-
SeriesPSR Series
-
Indicating/Non-IndicatingIndicating
-
Interrupt Rating150/200 kA
-
Body Size1.94 in L x 2.89 in W x 2.89 in H
-
Body TypeSquare
- Best in class DC performance
- Extremely current limiting
- Superior cycling capability
- Direct bus bar mount design
- Visual and microswitch fuse blown indication
- Low watt loss design
- Class aR performance according to IEC 60269-4
- 200 kA at 690 VAC IEC, 700 VAC UL, 150 kA at 500 VDC interrupt rating
-
Alternative Part NumberPSR033FL1400Z|15814584
-
UNSPSC39121628
-
IDEA Index ID15814584
-
Package DescriptionEACH
-
Standards/ApprovalsCCC Certified|CE Certified|cULus File No. E71611 Recognized|IEC 60269-4|REACH Compliant|UL 248-13 File No. E71611 Recognized|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
-
