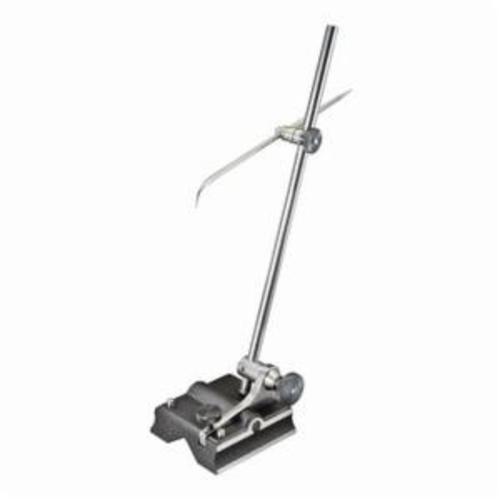

Starrett® 57C 57 Series Full Sized Surface Gage
Starrett Surface Gages are designed for a wide variety of uses. This is a basic tool for machinists and toolmakers. The main uses are for accurately scribing lines, transferring measurements and for probing surfaces in inspection work. 12" Spindle.
-
BrandStarrett®
-
UPC049659502947
-
Manufacturer Part Number57C
-
CountryUSA
-
FinishBlack Wrinkle
-
MaterialCast Iron Base
-
TypeFull Sized
-
Series57 Series
- Full size surface gage with attractive finish
- Base is ground flat with two frictionally held gage pins in the steel base which can be pushed down and used against the edge of a surface plate or T-slot for linear work
- Designed for a wide variety of uses
- The new style snug at the top of the spindle comes standard with these tools
- Ground bases for accurate reference surfaces
- V-Groove in the base for cylindrical work
- V-Groove on the front end which allows the spindle to adjust to any angle above or below the base
- A very positive fine adjustment through a rocker arm that makes for smooth and accurate settings
- Grooves on the side of the base for a sure and easy grip
- Nicely tapered scribers, so that you can see what you are doing
-
Alternative Part Number50294
-
UNSPSC41114508
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Full Engineering Drawing
