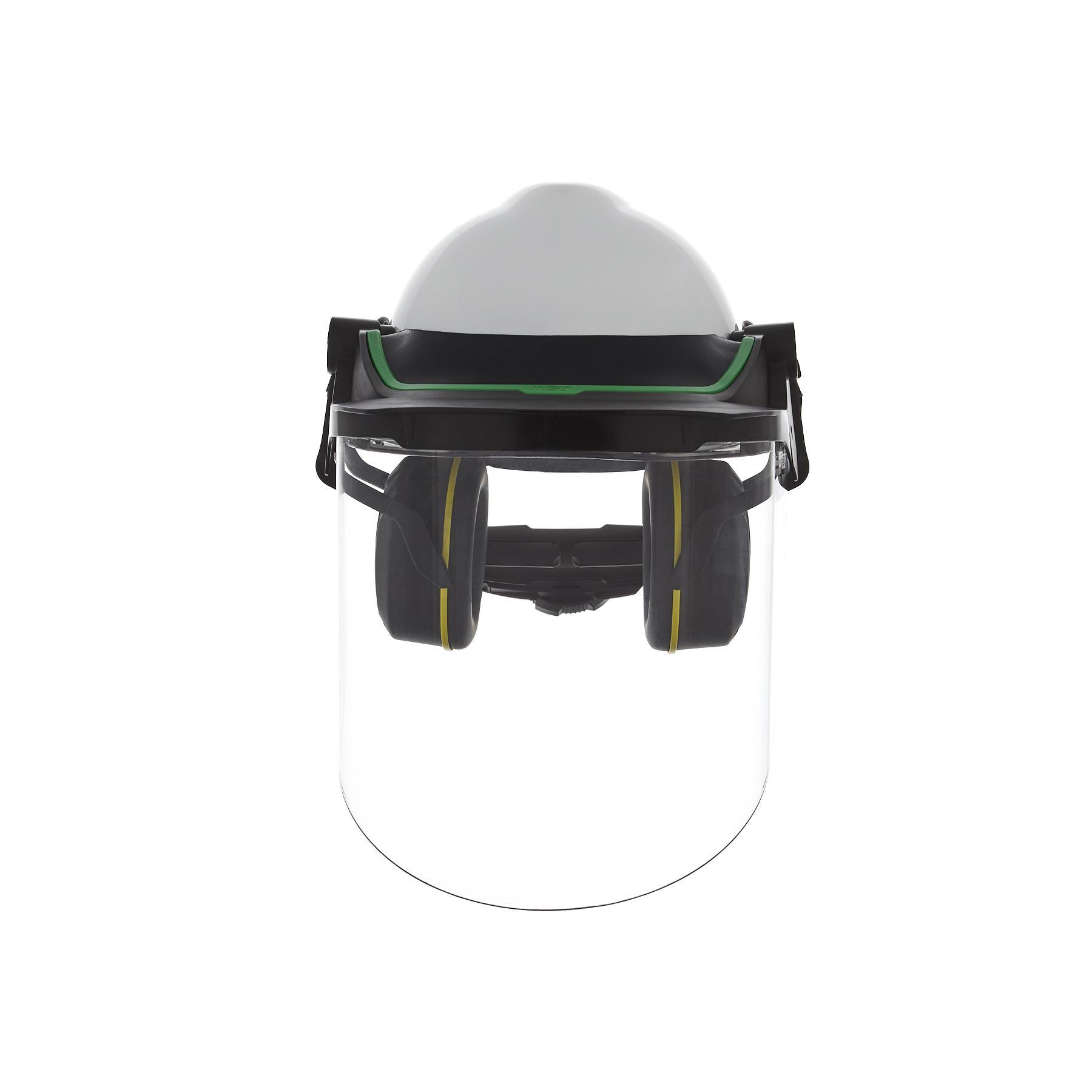

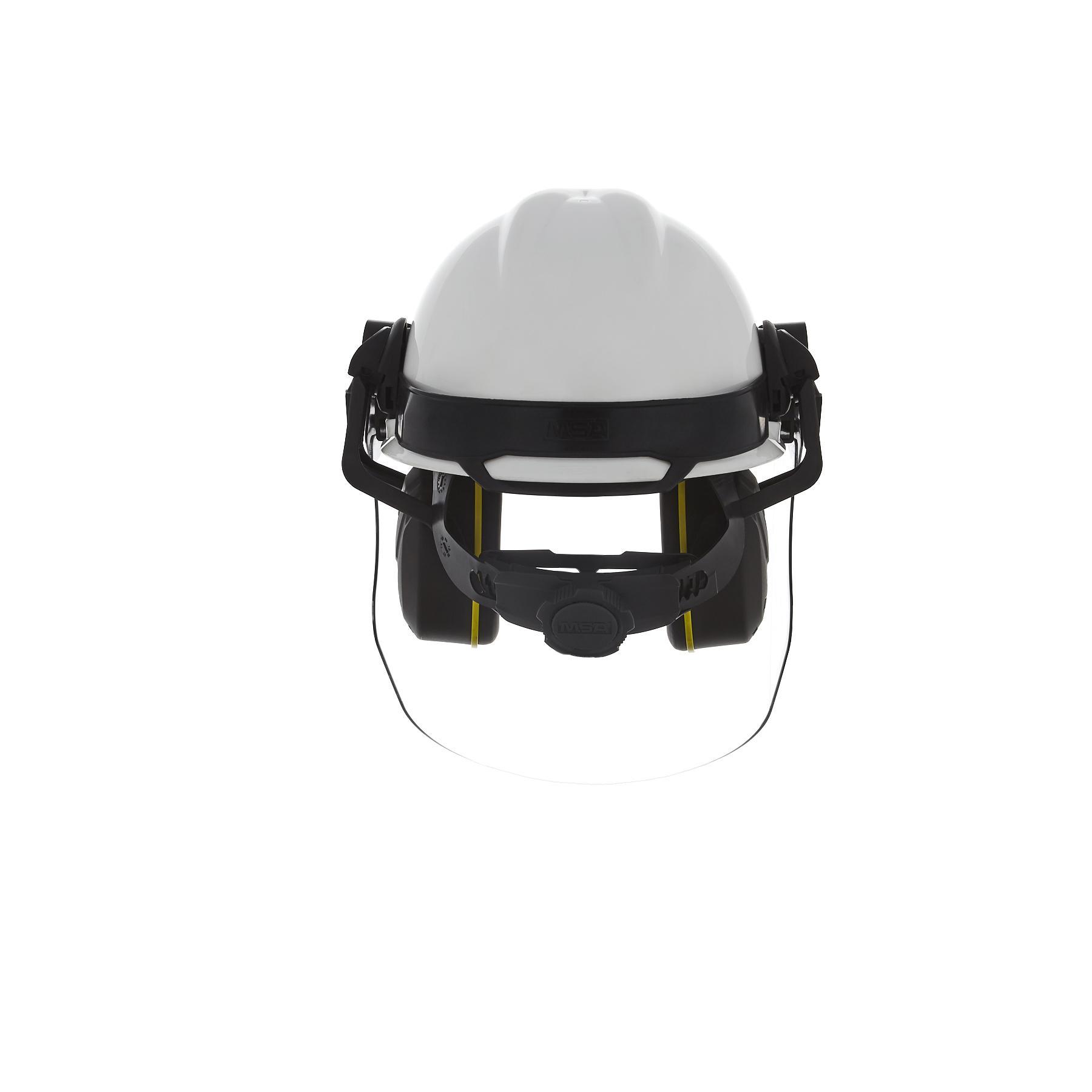

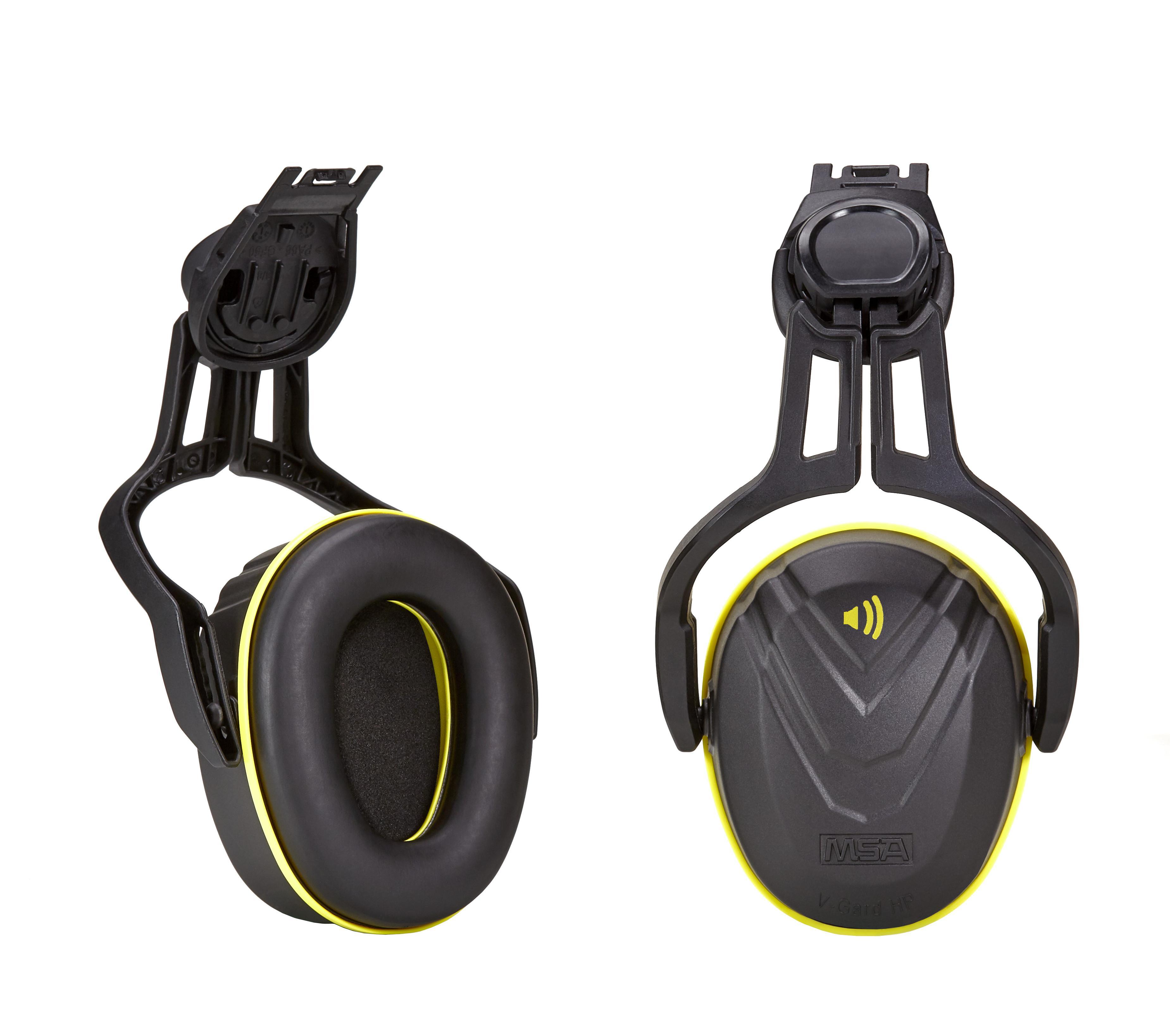

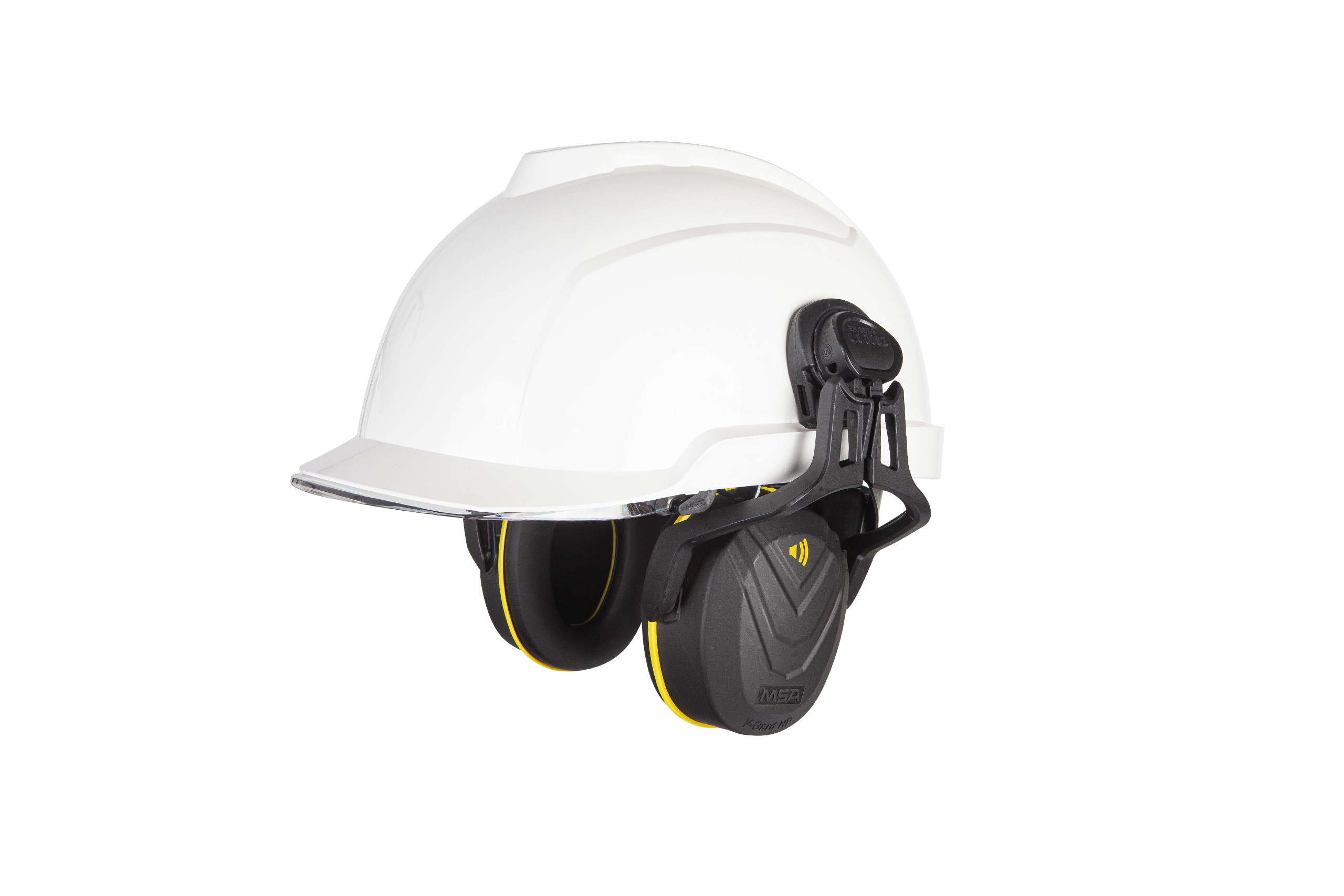

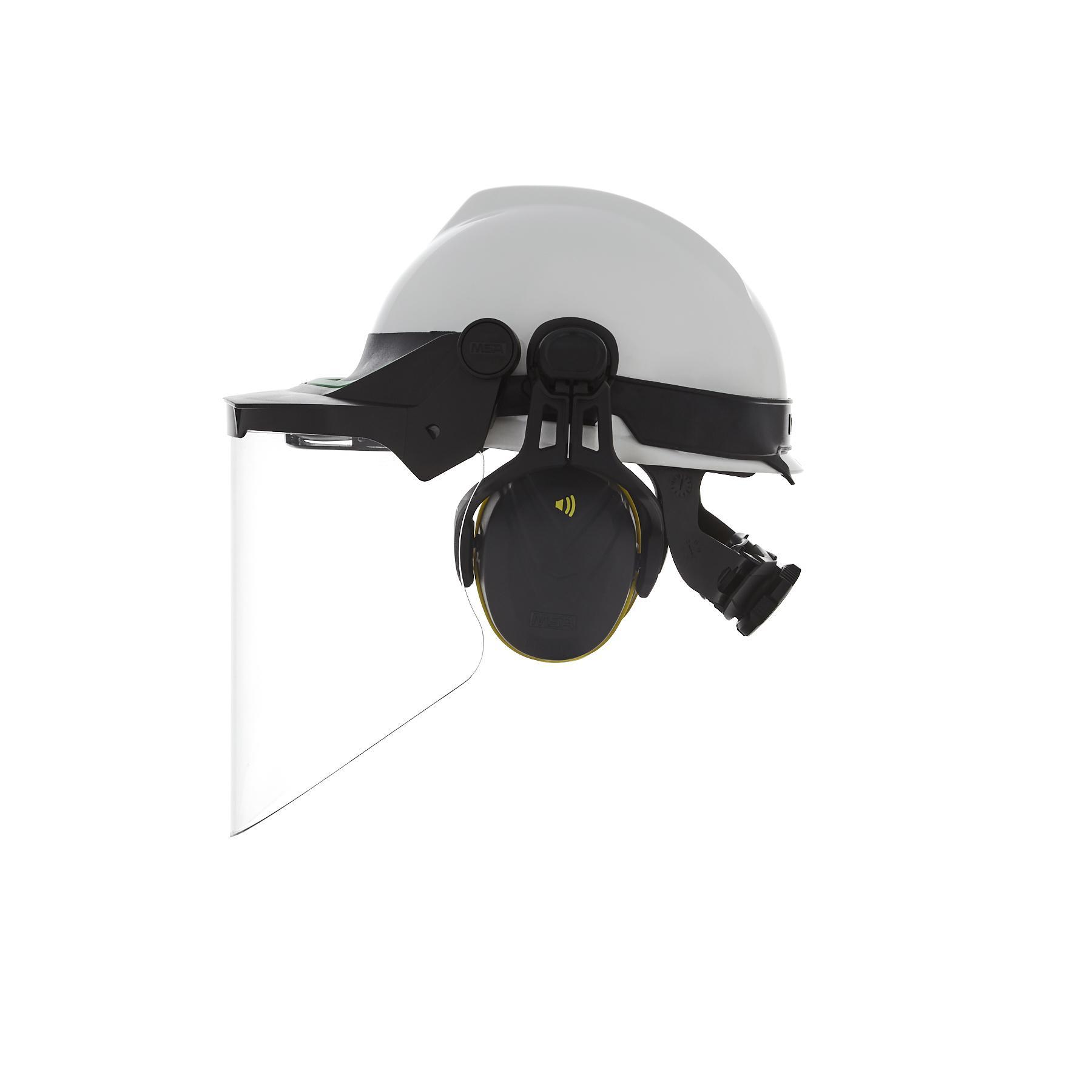

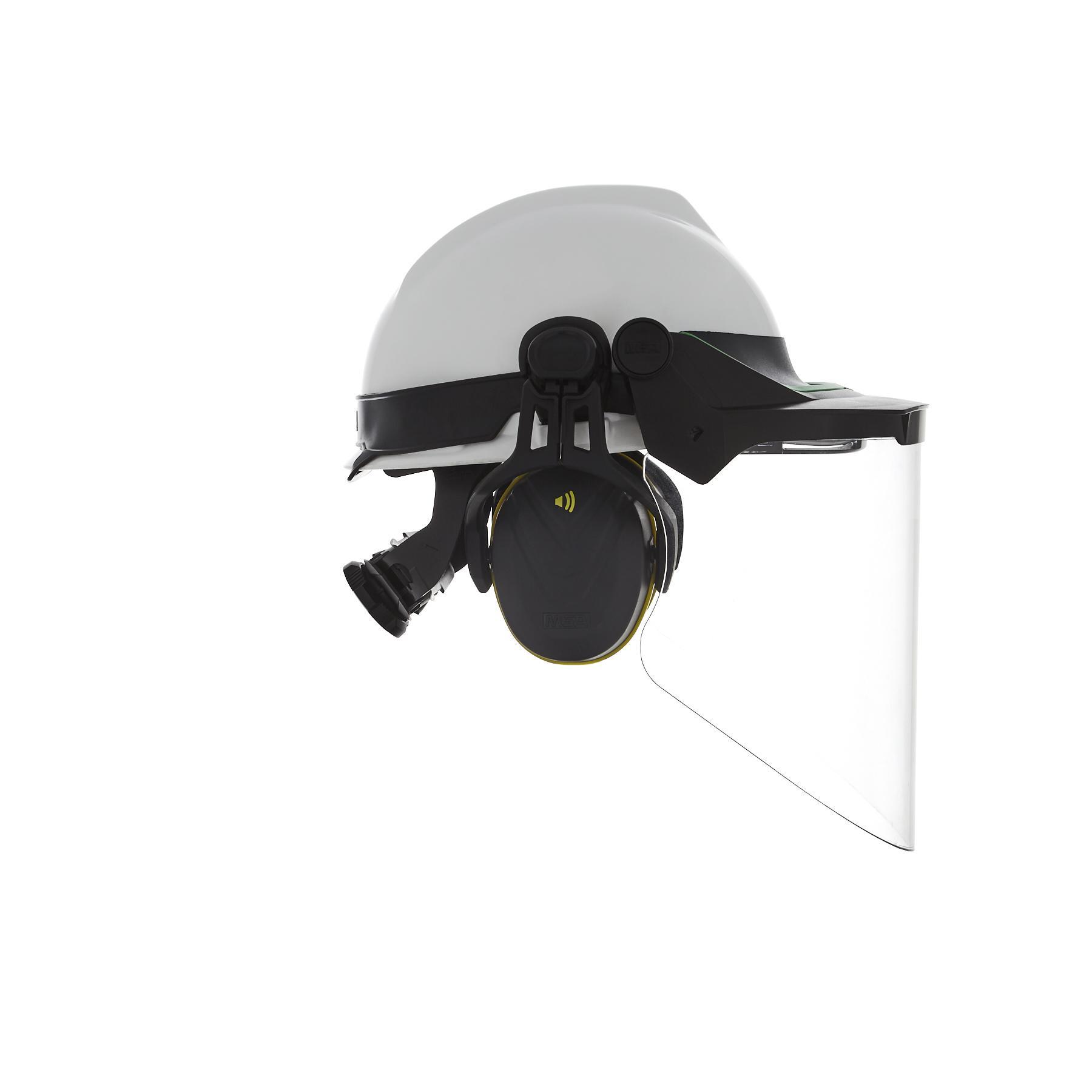

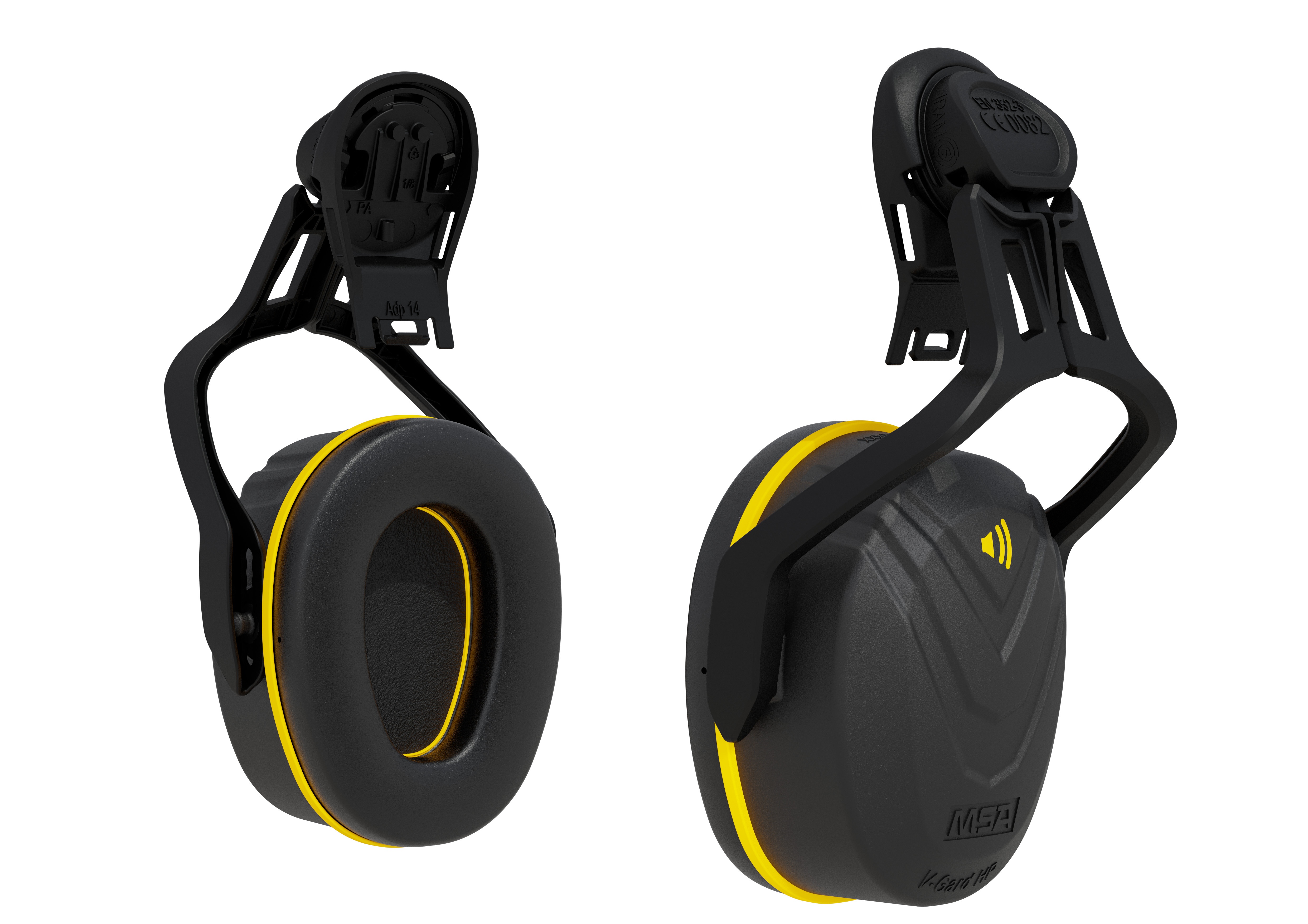

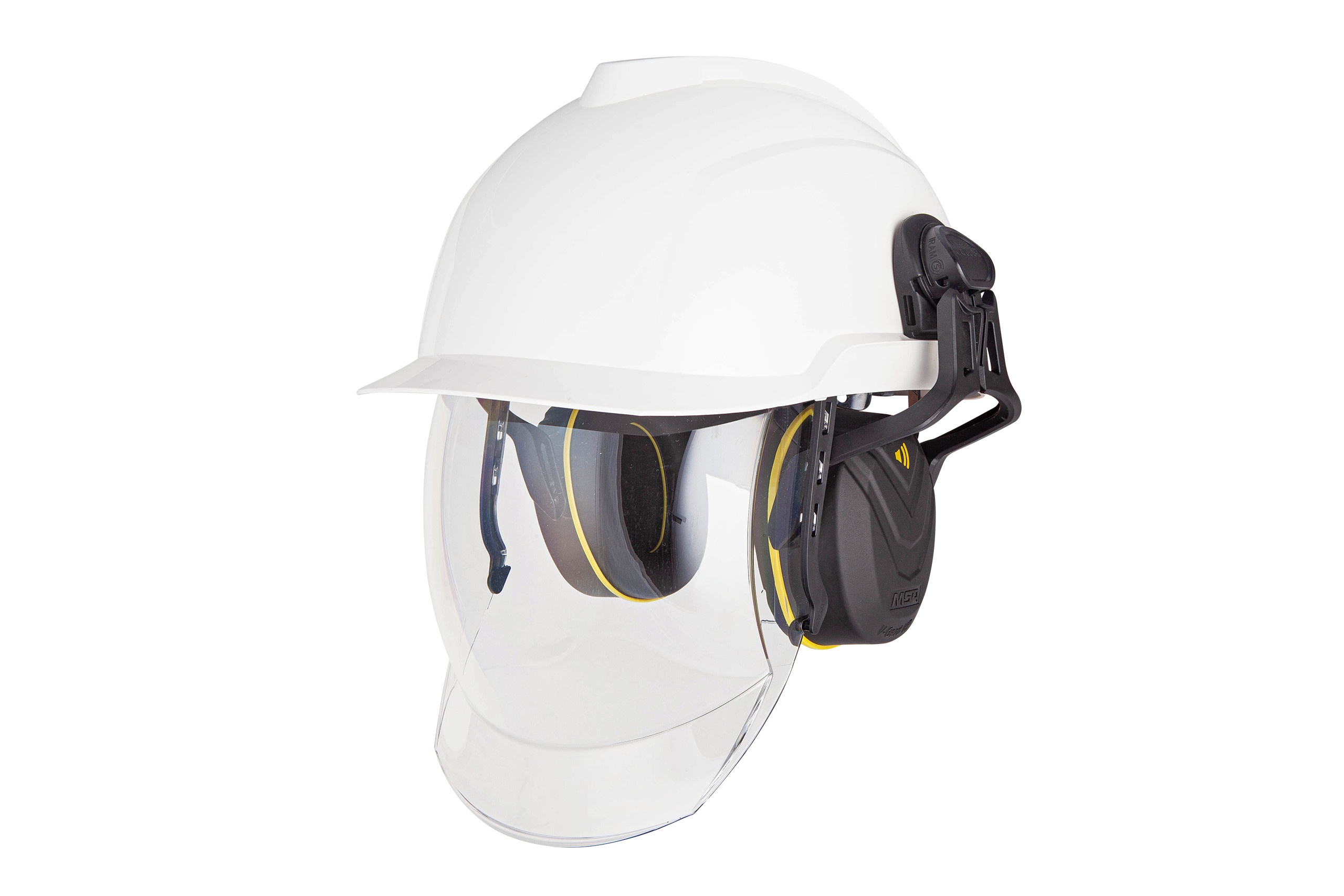

MSA 10190357 Helmet Mounted Medium Attenuation Hearing Protection, 27 NRR/32 SNR
For industrial workers, the V-Gard Cap Mounted Hearing Protection Line delivers enhanced comfort and top of the line performance with upgrades in fit and style all without compromising the quality expected from the V-Gard brand.
-
BrandMSA
-
Manufacturer Part Number10190357
-
CountryUSA|Canada
-
TypeHelmet Mounted Medium Attenuation
-
Specifications27 NRR/32 SNR
- Enhanced comfort and fit
- Superior Performance
- Modern Style
-
UNSPSC46181900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI S3.19-1974/S12.6-2008|AS/NZ S1270:2002|CSA Class A|EN 352-3 2002
-
SDS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
