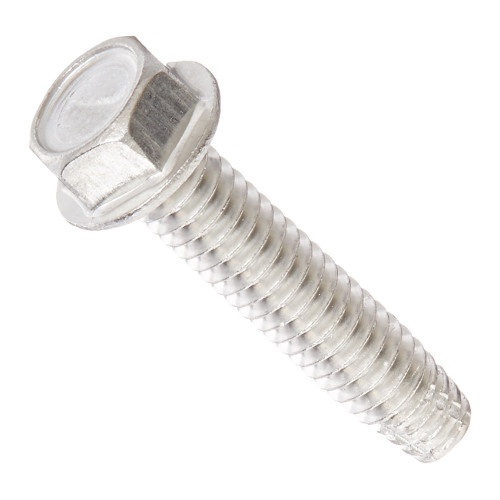

BBI 699502 Screw
BBI 699502 Screw
-
BrandBBI
-
Manufacturer Part Number699502
-
CountryUSA|Canada
-
FinishZinc
-
MaterialSteel
-
Thread TypeFull
-
Measurement SystemImperial
-
Head TypeHex Washer
-
Diameter - Thread Size3/8-16
-
Length Under Head1 in
