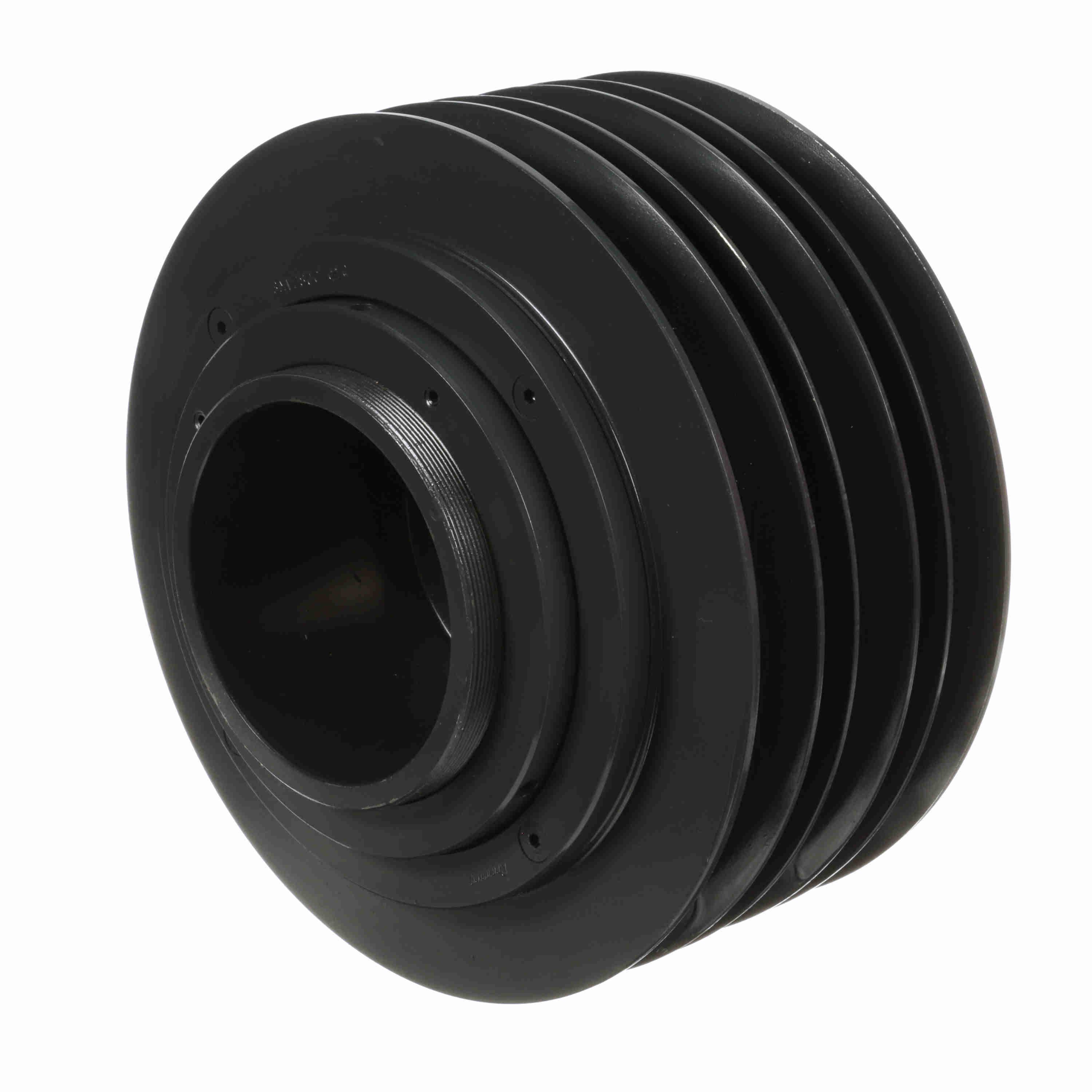

Browning MVP SHEAVES BRW 3-MVP-80-C-102-Q
MVP® sheaves are a series of angular faced center flanges which are bolted to the fixed flange mounted on the barrel. They also contain another series of angular faced flanges which are bolted to the end flange and threaded locking collar. When the threaded locking collar is turned clockwise, it moves the angular flanges closer together increasing the pitch diameter. When the collar is moved counterclockwise, the flanges are moved apart, decreasing the pitch diameter. The pitch diameter is infinite. This means the collar adjustment can be turned and stopped at any time regardless of location between the minimum and the maximum setting. When the desired diameter is obtained, the locking collar is locked by tightening screws. In contrast VL, VP, and VM sheaves are limited by half- turn or 180 deg adjustment points.
-
BrandBrowning®
-
UPC662289295012
-
Manufacturer Part Number1020866
-
CountryUSA
-
Face Width4-7/16 to 5-1/32 in
-
Bushing TypeQ2
-
Pitch Diameter10.6 to 8.4 in
-
MaterialCast Iron
-
SeriesMVP®
-
Hub Projection1/4 in
-
Number of Grooves3
-
Outside Diameter10.56 in
-
Bore Diameter1 to 2-5/8 in
-
Bore TypeBushed
-
Overall Length6-9/32 in
-
Suitable For Use WithGripBelt® C Cross Section Belt
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
-
Alternative Part Number3MVP80C102Q
-
UNSPSC24101613
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
