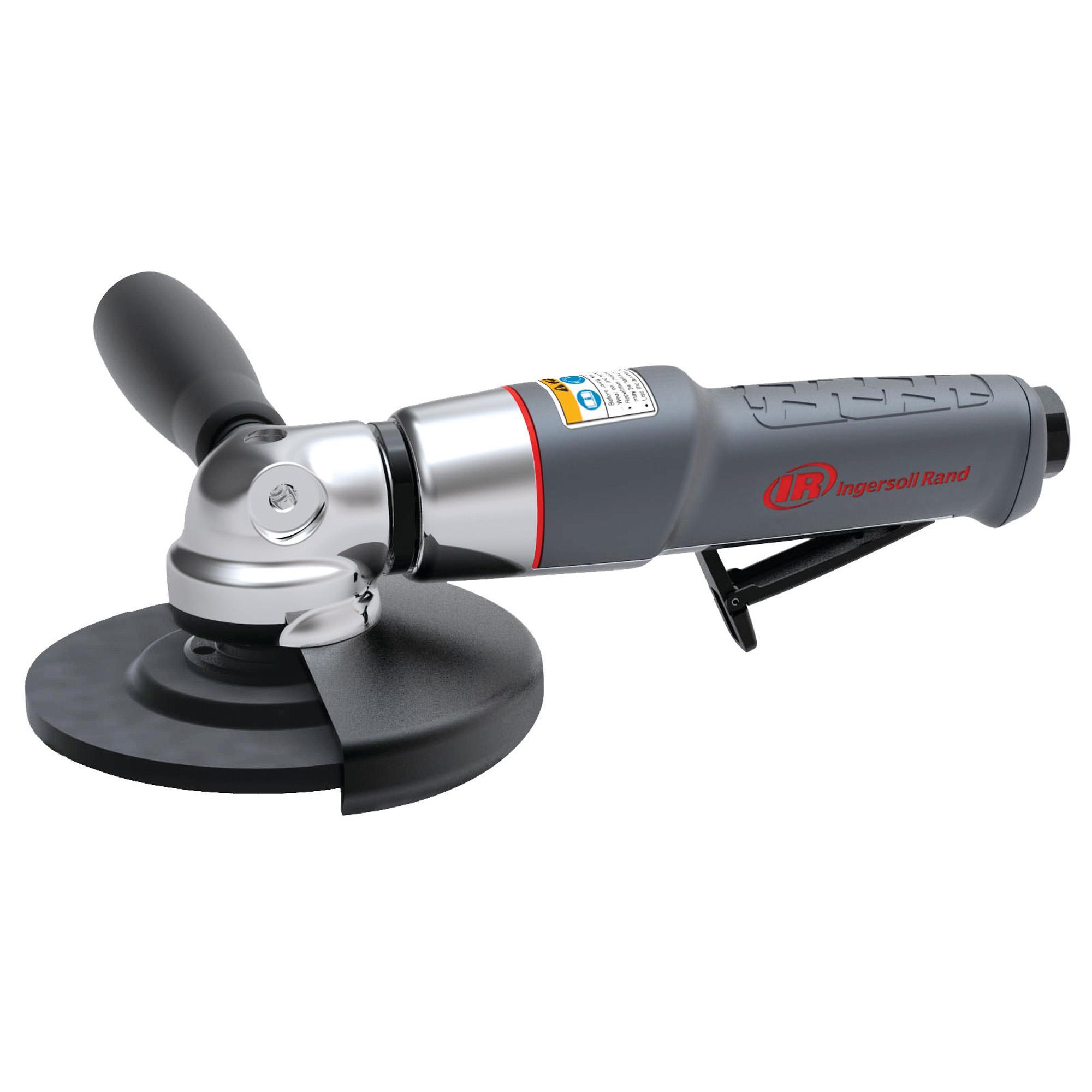

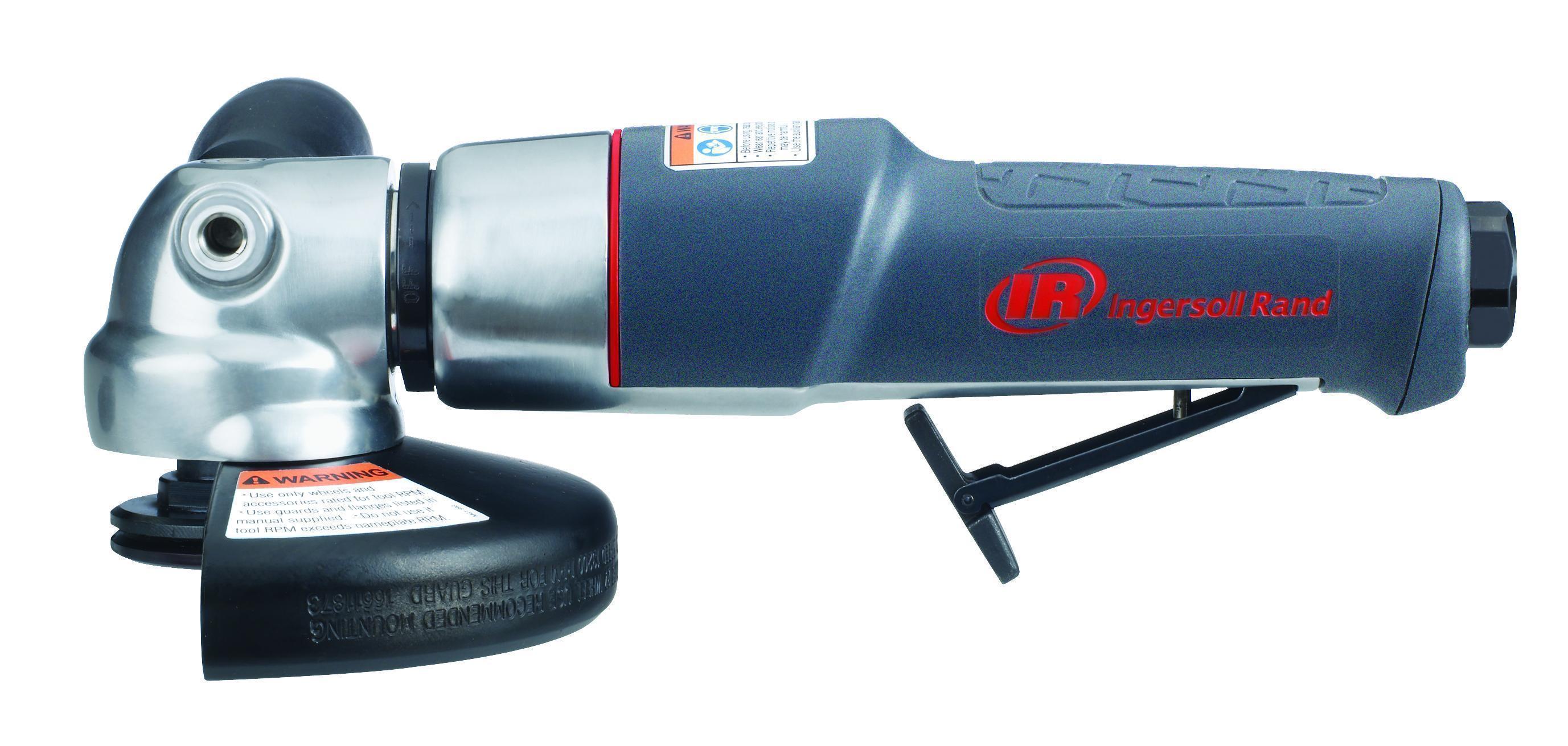

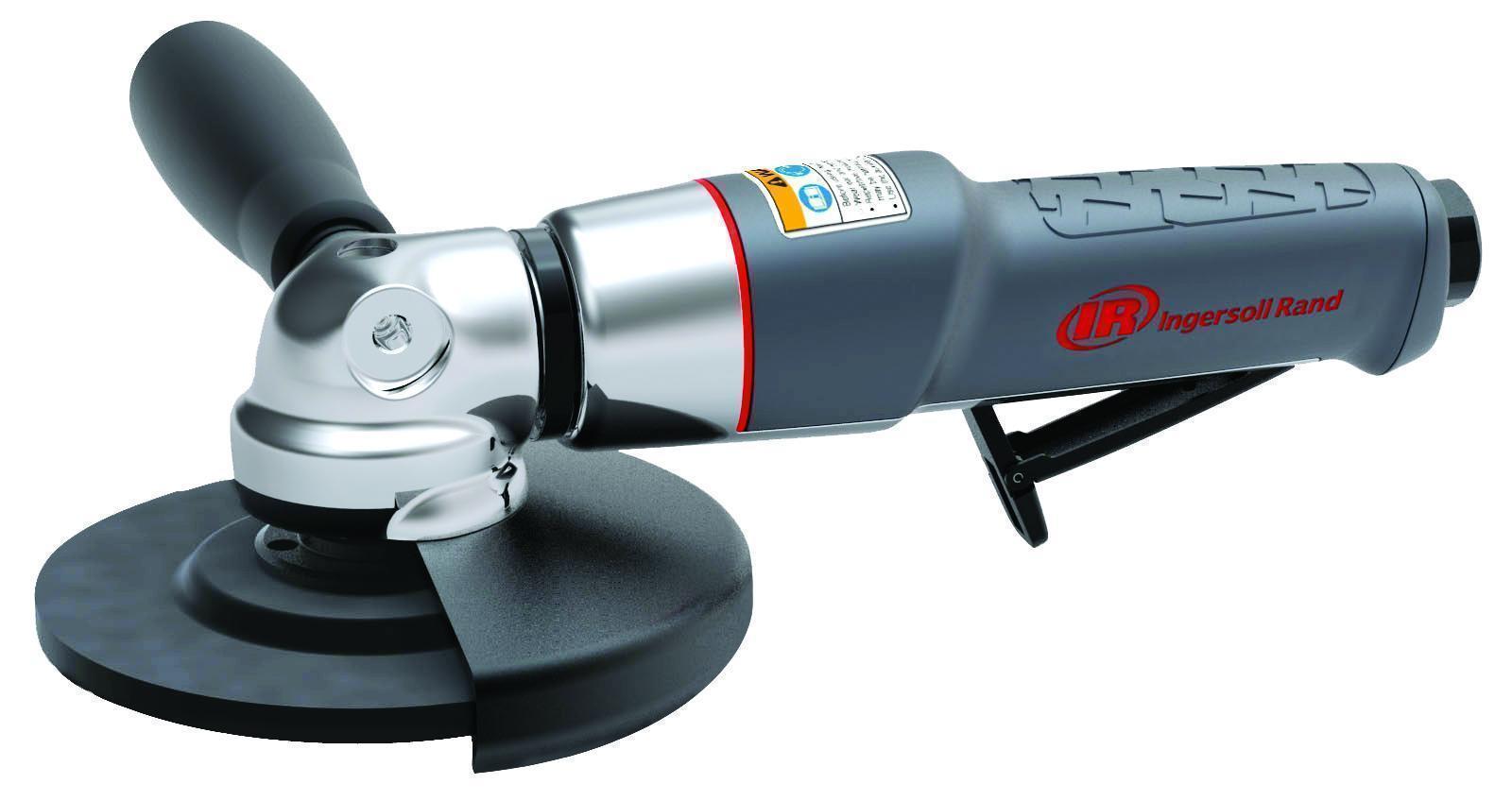

Ingersoll-Rand MAX 3445MAX Type 27 Industrial Right Angle Air Grinder, 4-1/2 in Dia Wheel, 5/8-11 Arbor/Shank, 0.88 hp, Tool Only
The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.
-
BrandIngersoll Rand
-
UPC663023015538
-
Manufacturer Part Number3445MAX
-
CountryUSA
-
Throttle StyleLocking Lever
-
Tool/KitBare Tool
-
Minimum Hose Size3/8 in
-
TypeType 27 Industrial
-
Handle TypeErgonomic
-
Air Flow Rate41 cfm Load
-
Air Inlet1/4 in NPT
-
Air Pressure90 psi
-
Wheel Diameter4-1/2 in
-
Arbor/Shank Size5/8-11
-
Horsepower0.88 hp
-
Dimensions9.6 in L x 5.2 in W
-
Sound Level90.6 dB
-
Speed12000 rpm
-
Exhaust LocationFront
- Max Power, The 4-1/2 in wheel 3445MAX grinder delivers maximum power, productivity, comfort, and reliability to tackle the toughest material removal jobs in metalworking, construction, and more
- Work Faster, Safer, The .88 HP air motor with 12,000 RPM delivers the power you need and the internal governor maximizes speed under the load, increasing the rate of material removal
- Built-in lubrication, Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set
- Lightweight Comfort, The enhanced grip design increases operator comfort for extended use, and its lightweight construction, weighing less than 3.5 lbs , delivers the best power-to-weight ratio in its class
- Material Compatibility, Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5LAN8 |
| Ferguson | I3445MAX |
| Fastenal | 0209049 |
-
UNSPSC27131511
-
Catalog
-
Instruction/Installation Manual
-
Owners/User Manual
-
Full Engineering Drawing
-
Line Drawing
