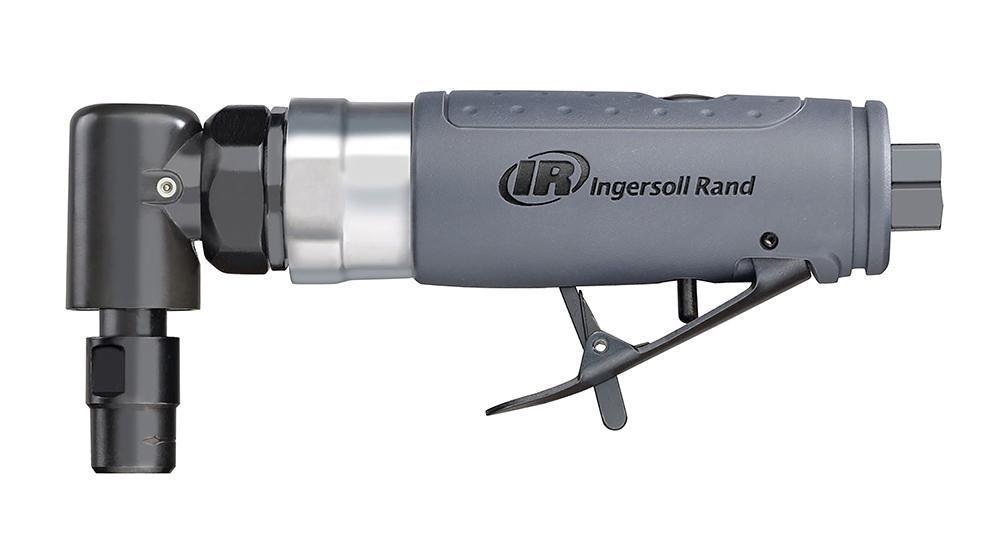

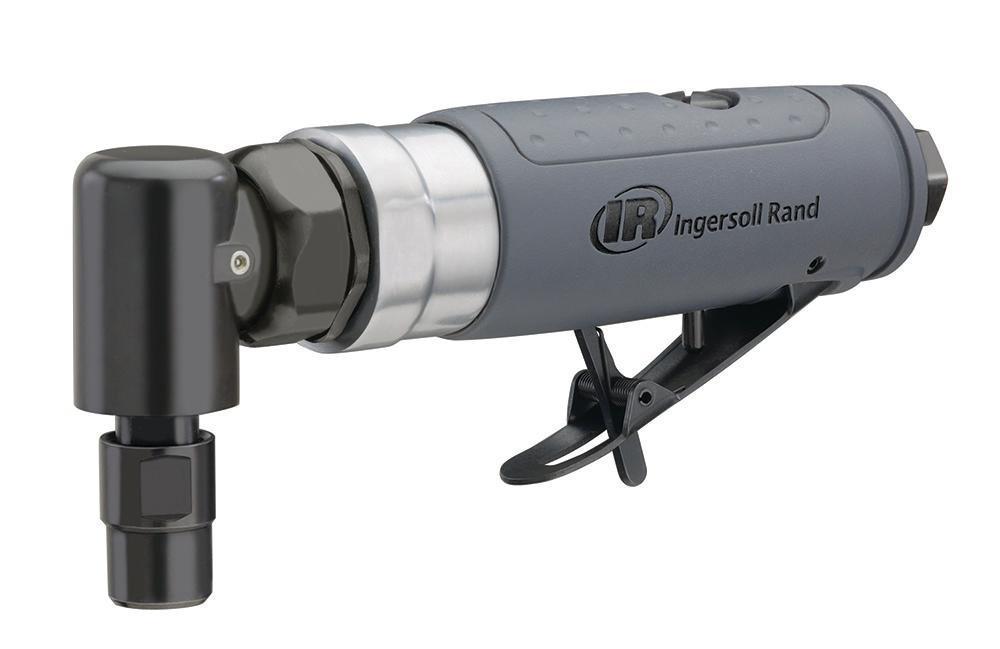

Ingersoll-Rand 302B Right Angle Air Die Grinder, 0.33 hp, Tool Only

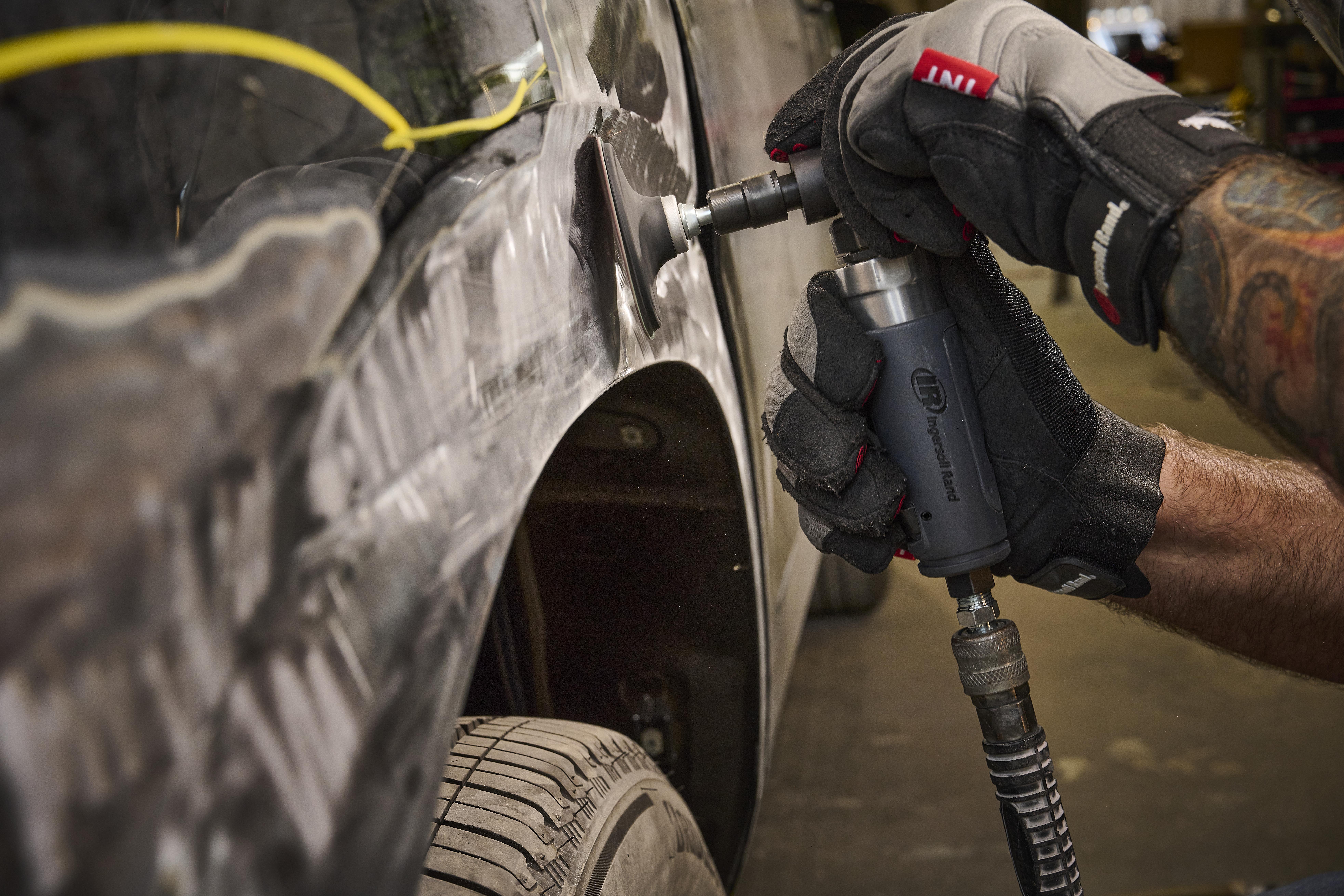

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. 302BK Kit also available that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.
-
BrandIngersoll Rand
-
UPC663023106120
-
Manufacturer Part Number302B
-
CountryUSA
-
Throttle StyleLever
-
Tool/KitBare Tool
-
Minimum Hose Size3/8 in
-
TypeRight Angle
-
Handle TypeAngled
-
Air Flow Rate6 to 23 cfm
-
Air Inlet1/4 in NPT
-
Air Pressure90 psi
-
Horsepower0.33 hp
-
Dimensions6.93 in L
-
Sound Level101 dB Power/90 dB Pressure
-
Speed20000 rpm
-
Exhaust LocationRear Load
- Power, Powerful motor with precision gearing offers .33 HP at 20,000 RPM
- Durable, Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life
- Lightweight, Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort
- Piped Away Exhaust Ready, These die grinders are compatible with
- Reliability, Integral safety-lock throttle lever prevents accidental start up
- Built-In Lubrication, Built-in lubricating wick increases angle gear life
- Also available in the 302BK Kit that includes 2 in and 3 in Quick Change Backing Pads, a Variety of 2 in and 3 in Quick Change Sanding Disks, 2 in and 3 in Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 23Z009 |
| MSC | 42178251 |
| Fastenal | 0247335 |
| Ferguson | I302B |
-
UNSPSC27131511
-
Catalog
-
Instruction/Installation Manual
-
Owners/User Manual
-
Full Engineering Drawing
-
Line Drawing
