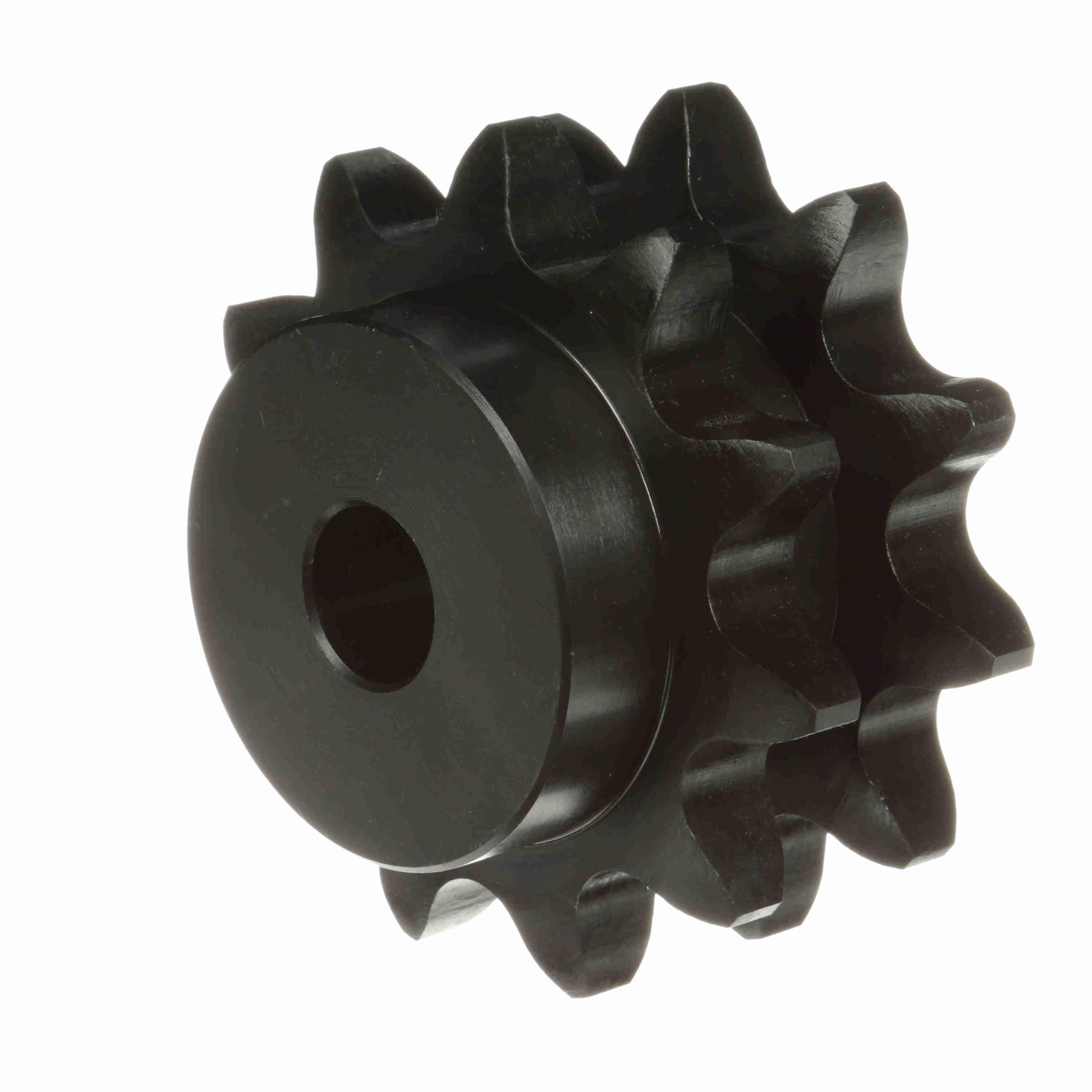

Browning® 1126655 Double Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1 to 2-1/8 in Dia Bore, 5.01 in OD, 100 Chain, 11 Teeth, 1-1/4 in Pitch, Hardened Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289213177
-
Manufacturer Part Number1126655
-
CountryUSA
-
Pitch Diameter4.437 in
-
MaterialHardened Steel
-
Chain Size100
-
TypeDouble Strand Minimum Bore Type B
-
Hub Diameter3-1/8 in
-
Number of Teeth11
-
Outside Diameter5.01 in
-
Length Through Bore2-7/8 in
-
Bore Diameter1 to 2-1/8 in
- Larger hub diameter allows larger bore capacity
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- Large hub diameters, provides flexibility when reboring
- For use with 1-1/4 in pitch ANSI chain
-
Alternative Part NumberD100B11
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
