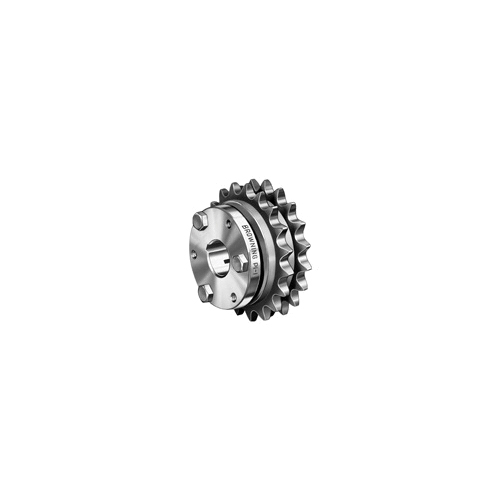

Browning® 3334810 Double Strand Roller Chain Sprocket, 1/2 to 2-15/16 in Dia Bore, 13.663 in OD, 40 Chain, 84 Teeth, 1/2 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289239375
-
Manufacturer Part Number3334810
-
CountryUSA
-
Pitch Diameter13.372 in
-
MaterialSteel
-
Chain Size40
-
TypeDouble Strand Type QD-4
-
Hub Diameter4-5/8 in
-
Number of Teeth84
-
Outside Diameter13.663 in
-
Length Through Bore2.3906 in
-
Bore Diameter1/2 to 2-15/16 in
- This product has the Browning® exclusive twice the life guarantee
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- For use with 1/2 in pitch ANSI chain
-
Alternative Part NumberD40SF84
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
