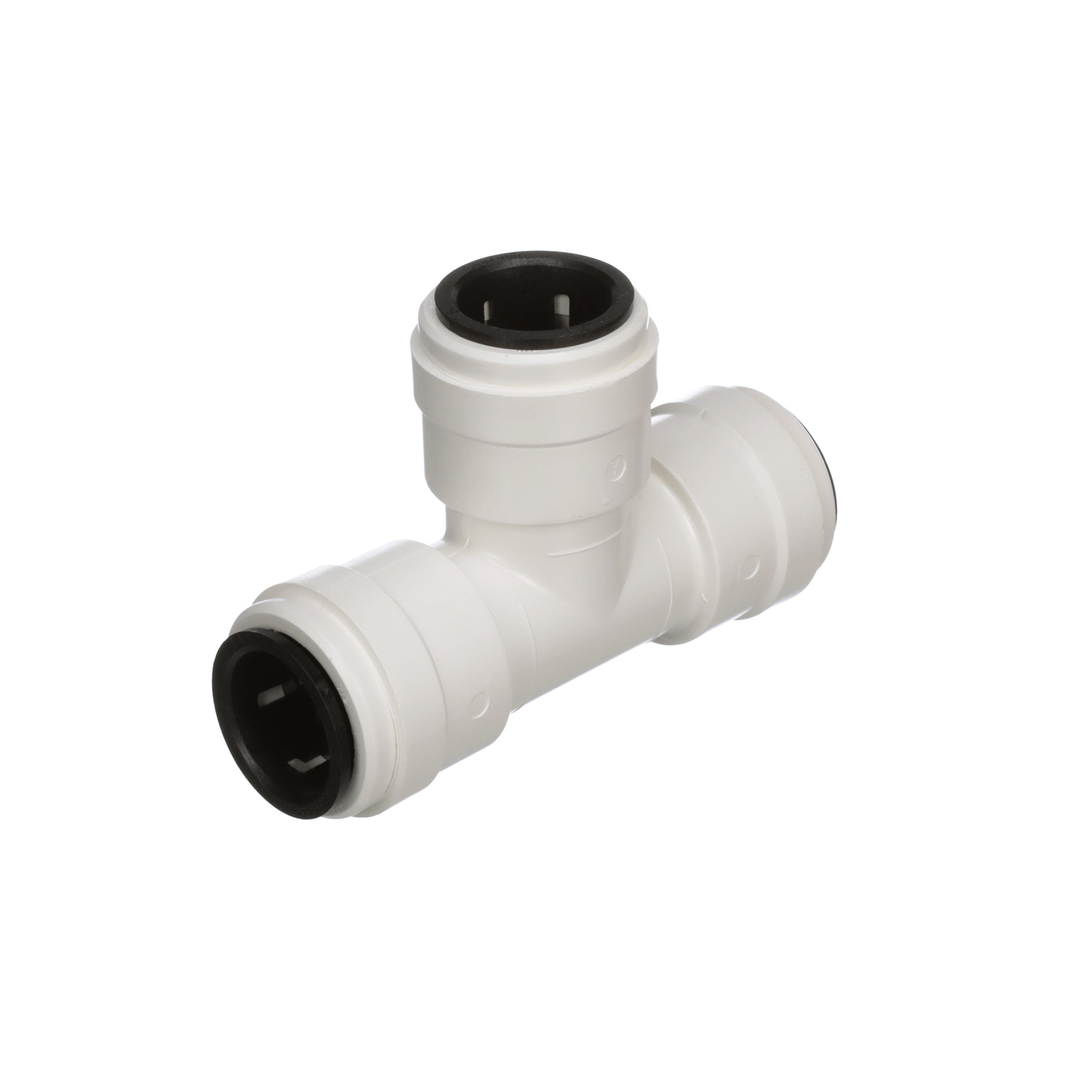

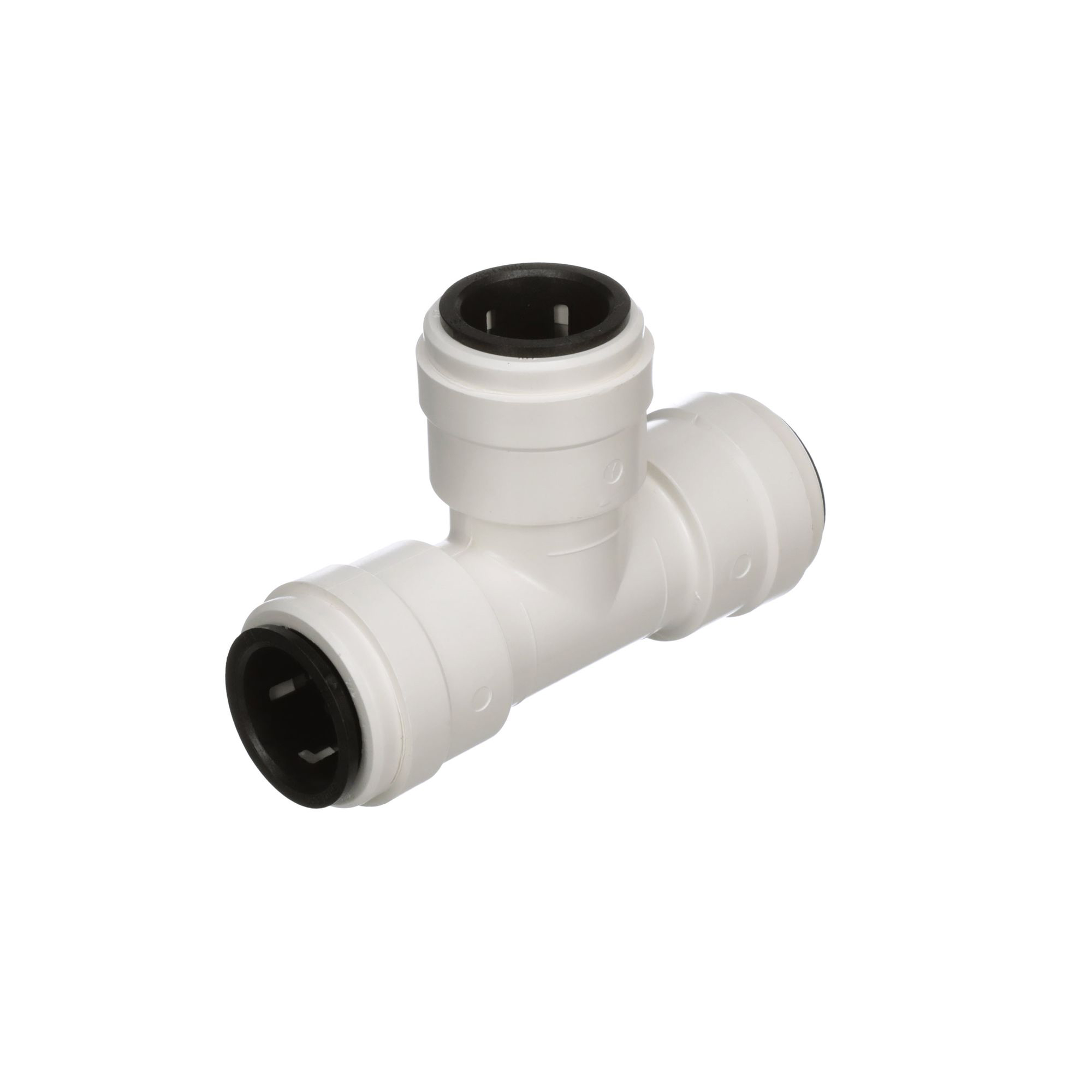

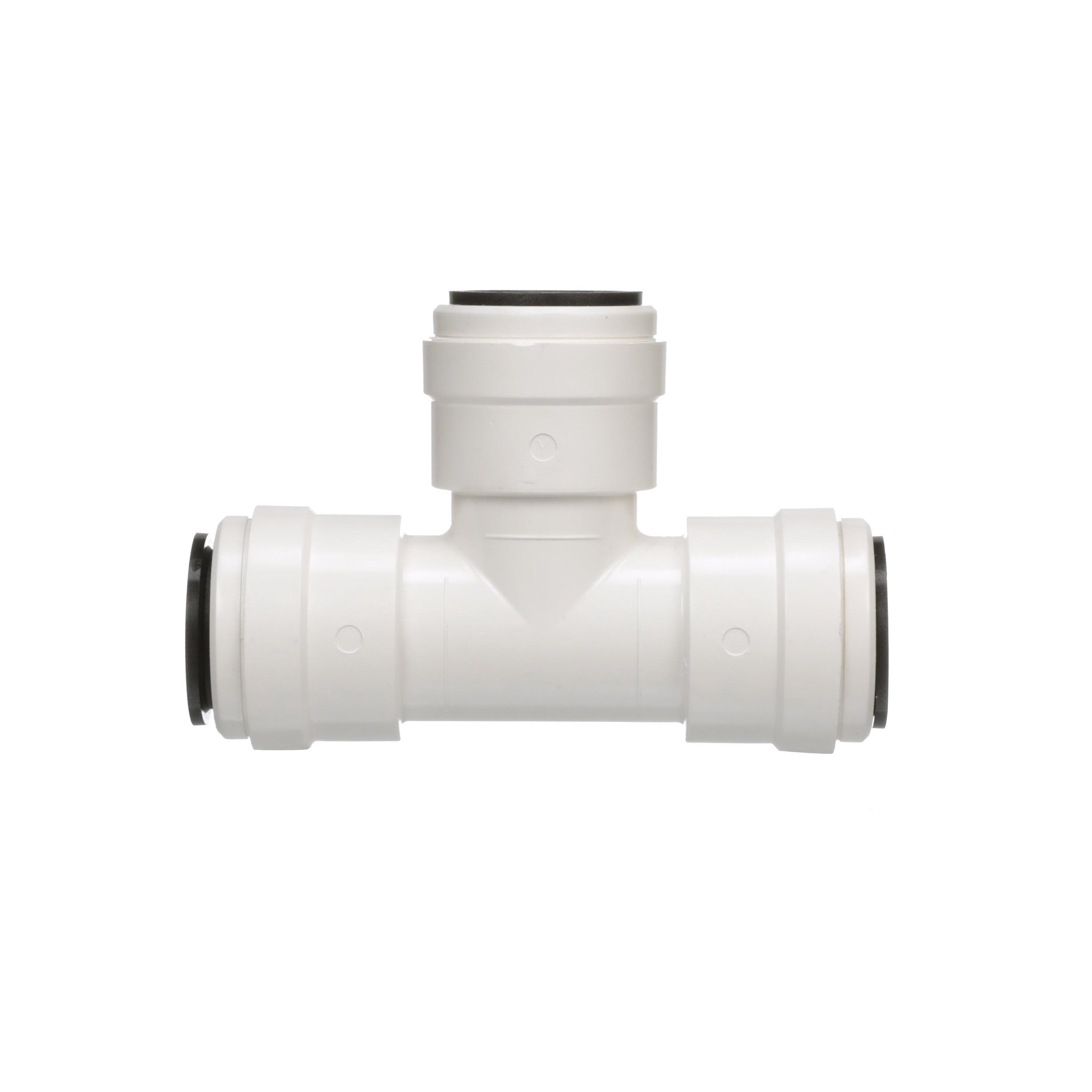

WATTS® 0959139 35 Series Type 23 Quick-Connect Union Tee, 3/4 in Nominal, CTS End Style, Polysulfone, Import
This 3/4 in CTS AquaLock™ plastic tee works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
-
BrandWATTS®
-
UPC098268299939
-
Manufacturer Part Number0959139
-
CountryUSA|Canada
-
Temperature Rating75 deg F
-
MaterialPolysulfone
-
Fitting/Connector TypeTee
-
Pressure Rating250 psi
-
ColorOff-White
-
TypeType 23 Quick-Connect
-
Nominal Size3/4 in
-
Series35 Series
-
Dimensions3-13/16 in L x 2-1/2 in H
-
Domestic/ImportImport
-
End StyleCTS
-
FinishPlastic
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Zero leak connections
- Strong seal and hold
- Reusable
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
| Cross-Reference Number |
|---|
| 447430 |
-
Alternative Part Number3523-14|20098268299933|30098268299930|98268299939
-
UNSPSC40183102
-
Package Description1/PK
-
Standards/ApprovalsASSE 1061|ASTM F877|CSA B137.5|IGC 188-04c|NSF 14|NSF 61|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|PROP65: This product can expose you to chemicals including Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm
-
Warranty10 years Limited
-
Catalog
-
Specification Sheet
