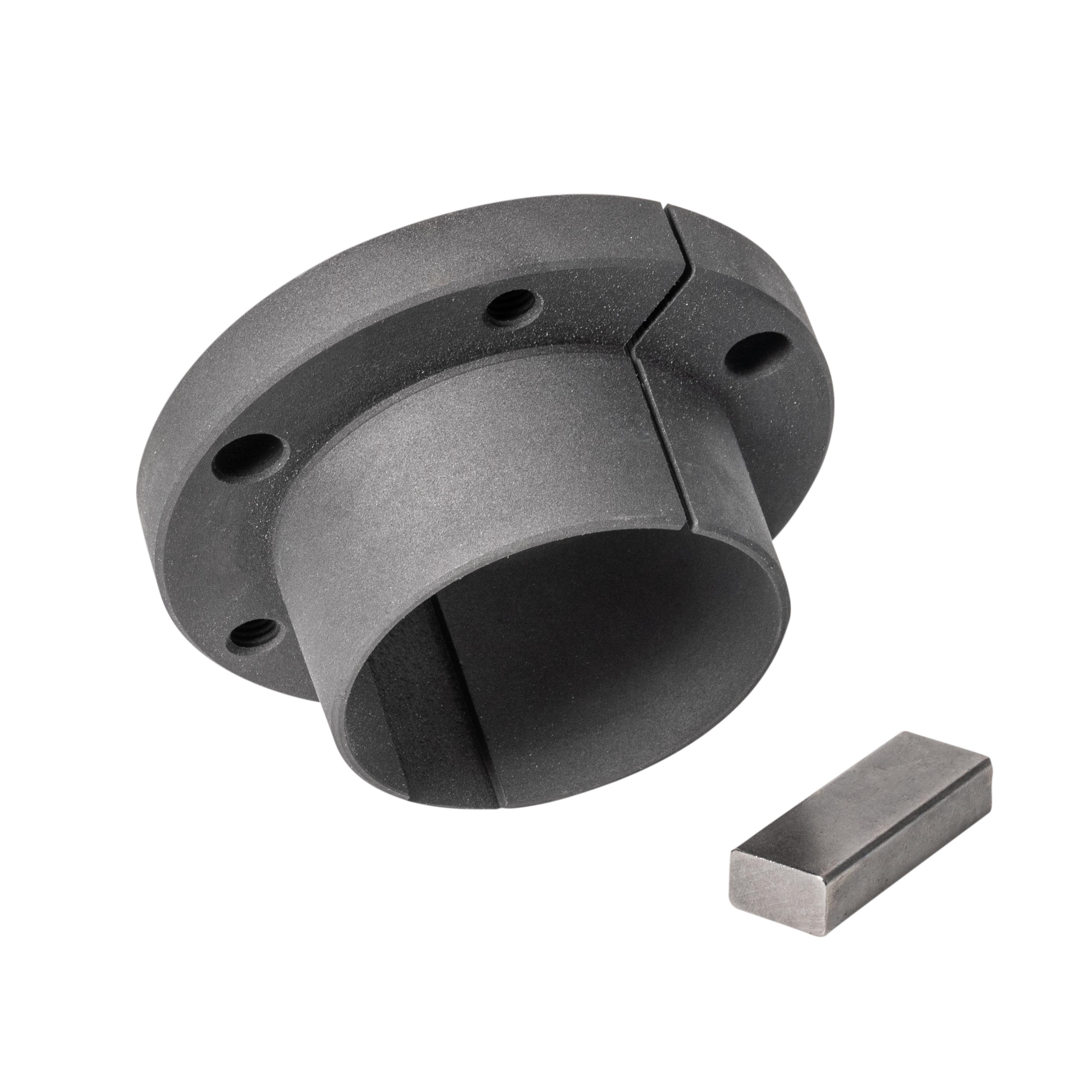

MasterDrive SF2.3/4 SF Series Clamp Fit QD Bushing, 2.75 in Dia Bore, 4-5/8 in Dia Barrel, 4.62 in Dia Flange, 2.0625 in OAL, Ductile Iron
-
BrandMasterDrive
-
UPC806372019998
-
Manufacturer Part NumberSF2.3/4
-
CountryUSA
-
FinishBlack Phosphate
-
MaterialDuctile Iron
-
Flange Diameter4.62 in
-
Flange Thickness5/8 in
-
TypeClamp Fit
-
Screw Size3/8 in
-
SeriesSF Series
-
Barrel Diameter4-5/8 in
-
Keyway Size5/8 x 1/16 in
-
Bolt Circle Diameter3-7/8 in
-
Bore Diameter2.75 in
-
Overall Length2.0625 in
- Material, Ductile Iron
- Easy to install and remove
- Provide a true clamp fit
- Reverse Mountable
-
Alternative Part Number2105008036
-
Package DescriptionEACH
-
