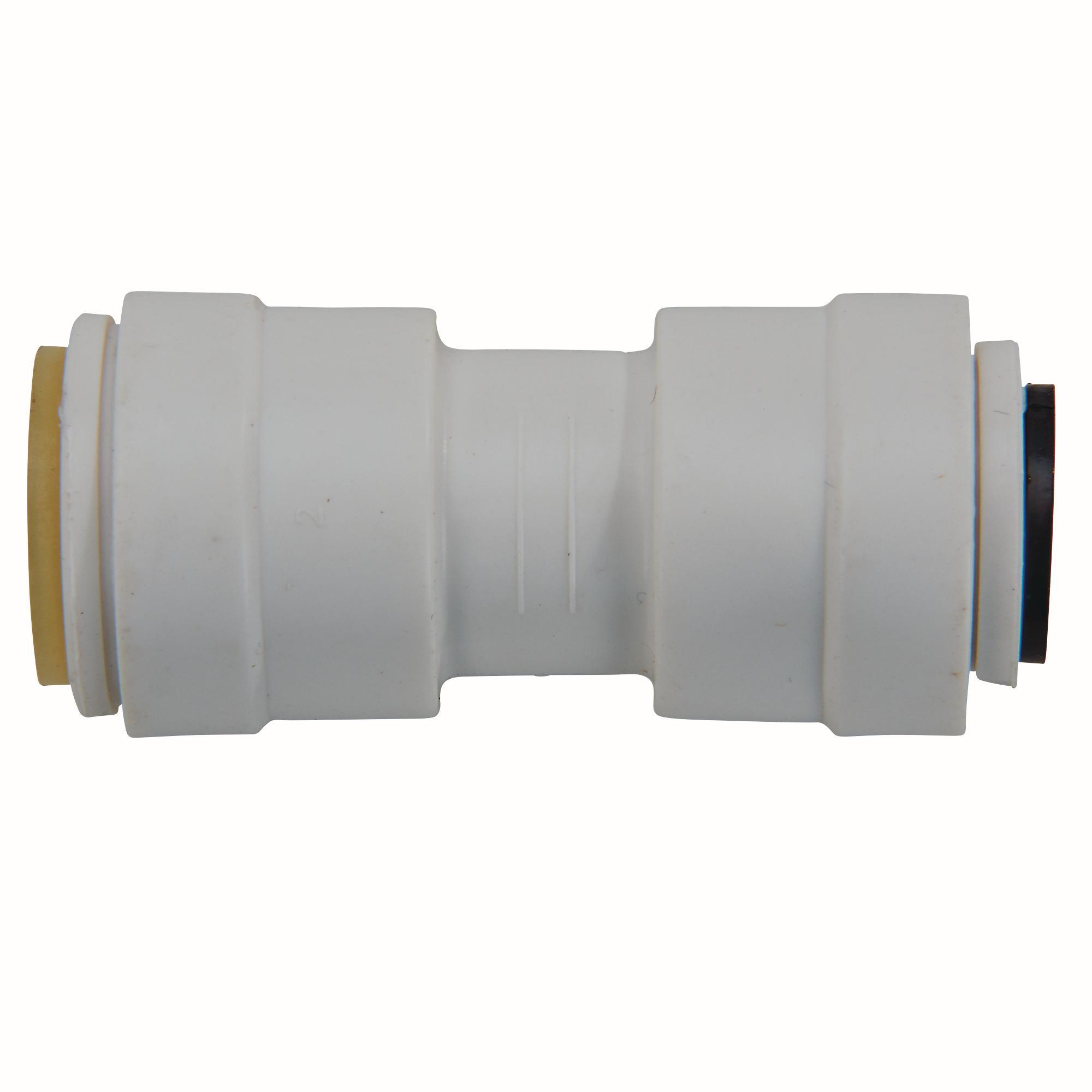

WATTS® 17103031 Quick-Connect Coupling, 1/2 x 3/8 in Nominal, Tube OD End Style, Polypropylene, Import
This 1/2 inch OD x 3/8 inch OD AquaLock(TM) mini reducing coupling works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
-
BrandWATTS®
-
UPC048643197664
-
Manufacturer Part Number17103031
-
CountryUSA|Canada
-
Temperature Rating33 to 140 deg F
-
FinishPlastic
-
MaterialPolypropylene
-
Fitting/Connector TypeCoupling
-
Pressure Rating150 psi at 70 deg F/60 psi at 140 deg F
-
ColorOff-White
-
TypeQuick-Connect
-
Nominal Size1/2 x 3/8 in
-
Dimensions3/8 x 1/4 in ID
-
Domestic/ImportImport
-
End StyleTube OD
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Works with plastic or soft copper tubing
- Zero-leak connections
- Reusable
- No tools required for installation or removal
- No special tools necessary
- Rotates under pressure after installed for high flexibility during installation
- Rotates under pressure after installed for high flexibility during installation
| Cross-Reference Number |
|---|
| 416029 |
-
Alternative Part Number20048643197668|1015R-0806|30048643197665|48643197664
-
UNSPSC40183107
-
Package DescriptionEACH
-
Warranty25-year limited warranty
-
Catalog
-
Specification Sheet
