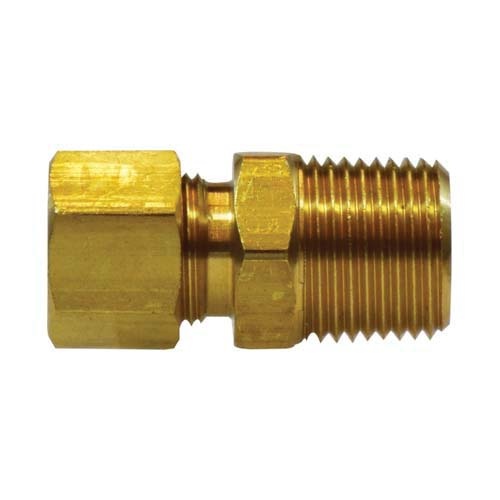

HCI Preferred Supplier 18200 Tube-to-Pipe Adapter, 3/4 x 1/2 in, Compression x MNPTF, Brass
HCI Preferred Supplier 18200 Tube-to-Pipe Adapter, 3/4 x 1/2 in, Compression x MNPTF, Brass
-
BrandGeneric
-
Manufacturer Part Number18200
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
Pressure Rating100 psi
-
Nominal Size3/4 x 1/2 in
-
Hex Size1 in
-
End StyleCompression x MNPTF
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
-
UNSPSC40183109
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME and SAE 060102
-
