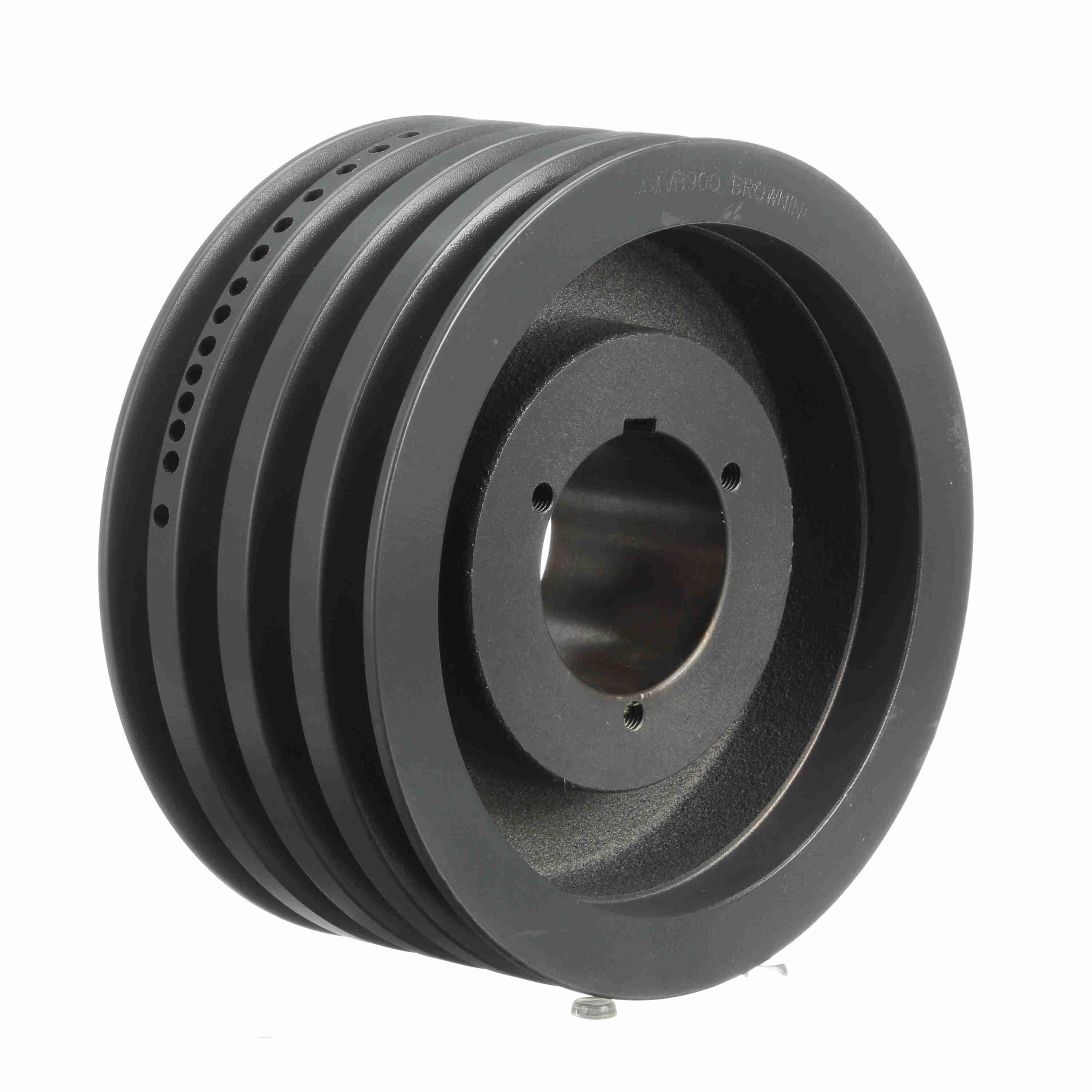

Browning SHEAVES BRW 5-MV-C-100-R
MVP® sheaves are a series of angular faced center flanges which are bolted to the fixed flange mounted on the barrel. They also contain another series of angular faced flanges which are bolted to the end flange and threaded locking collar. When the threaded locking collar is turned clockwise, it moves the angular flanges closer together increasing the pitch diameter. When the collar is moved counterclockwise, the flanges are moved apart, decreasing the pitch diameter. The pitch diameter is infinite. This means the collar adjustment can be turned and stopped at any time regardless of location between the minimum and the maximum setting. When the desired diameter is obtained, the locking collar is locked by tightening screws. In contrast VL, VP, and VM sheaves are limited by half- turn or 180 deg adjustment points.
-
BrandBrowning®
-
UPC662289126248
-
Manufacturer Part Number1022193
-
CountryUSA
-
Face Width7-7/8 in
-
Bushing TypeR2
-
Pitch Diameter10.4 in
-
MaterialCast Iron
-
TypeType 15 Web
-
SeriesMVP®
-
Number of Grooves5
-
Outside Diameter10.4 in
-
Bore Diameter1-3/8 to 3-5/8 in
-
Bore TypeBushed
-
Overall Length7-7/8 in
-
Suitable For Use WithGripBelt® C Cross Section V-Belt
- Large selection MVP® companion sheaves are offered in A/B, C, 5V and 8V belt sections and from 3 to 10 grooves giving Browning® the largest selection of MVP® companion sheaves in the industry
- All MVP® companion sheaves are statically balanced to assure smooth and vibration free performance
-
Alternative Part Number5MVC100R
-
UNSPSC31171804
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
