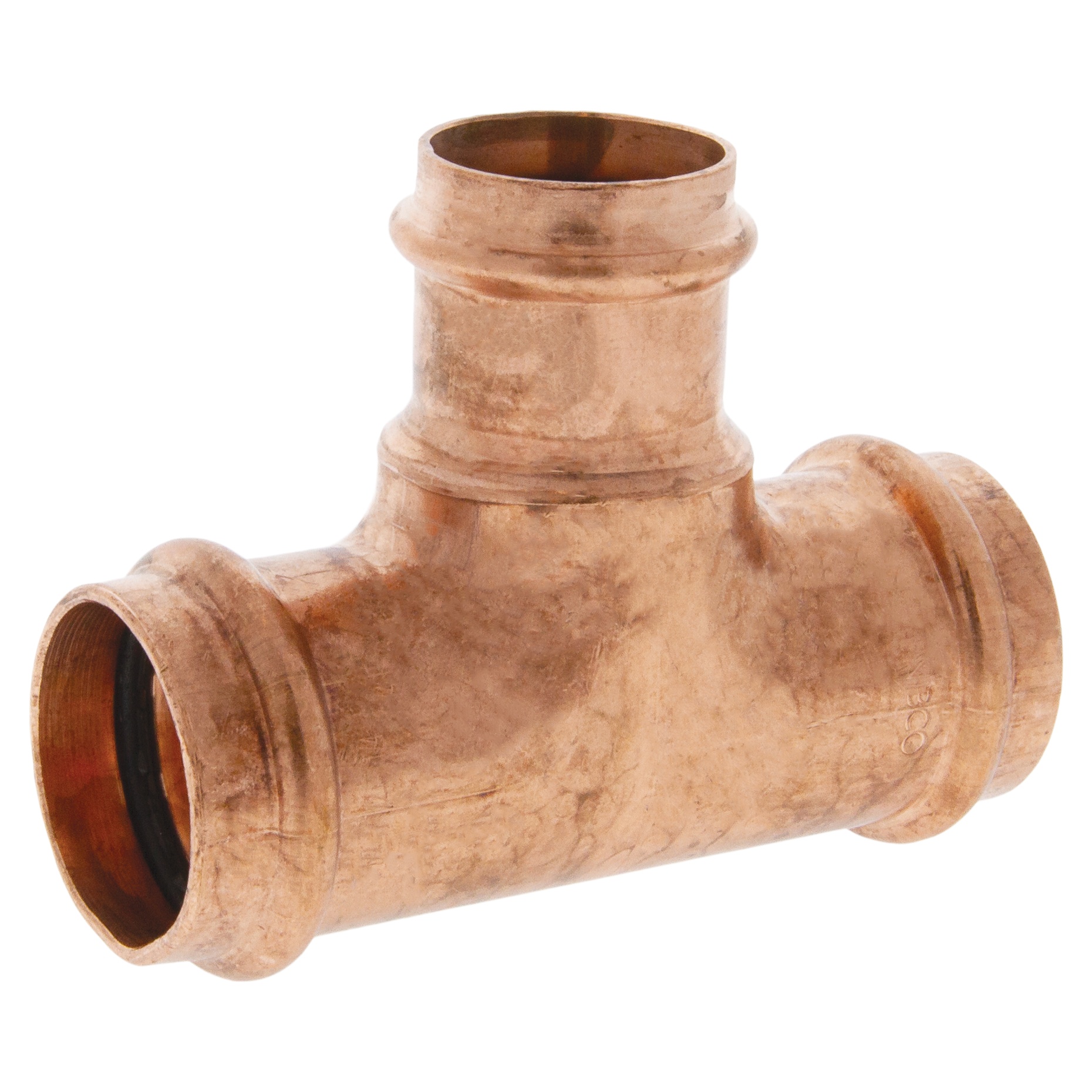

NIBCO® 9101305PC PC611 Tee, 1-1/2 x 1-1/2 x 1-1/4 in Nominal, Press End Style, Wrot Copper, Domestic
NIBCO® Press System® fittings are the fastest, easiest way to join copper tubing systems in residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground. The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO valves and fittings – the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper and copper alloy fittings, commercial valves, accessories, pressing tools, jaws and chains. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® Press System® copper fittings are backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
-
BrandNIBCO®
-
UPC039923350091
-
Manufacturer Part Number9101305PC
-
CountryUSA
-
Temperature Rating-20 to 250 deg F
-
MaterialWrot Copper
-
Fitting/Connector TypeTee
-
Pressure Rating200 psi
-
Nominal Size1-1/2 x 1-1/2 x 1-1/4 in
-
SeriesPC611
-
Domestic/ImportDomestic
-
End StylePress
-
TypeSmall Diameter
-

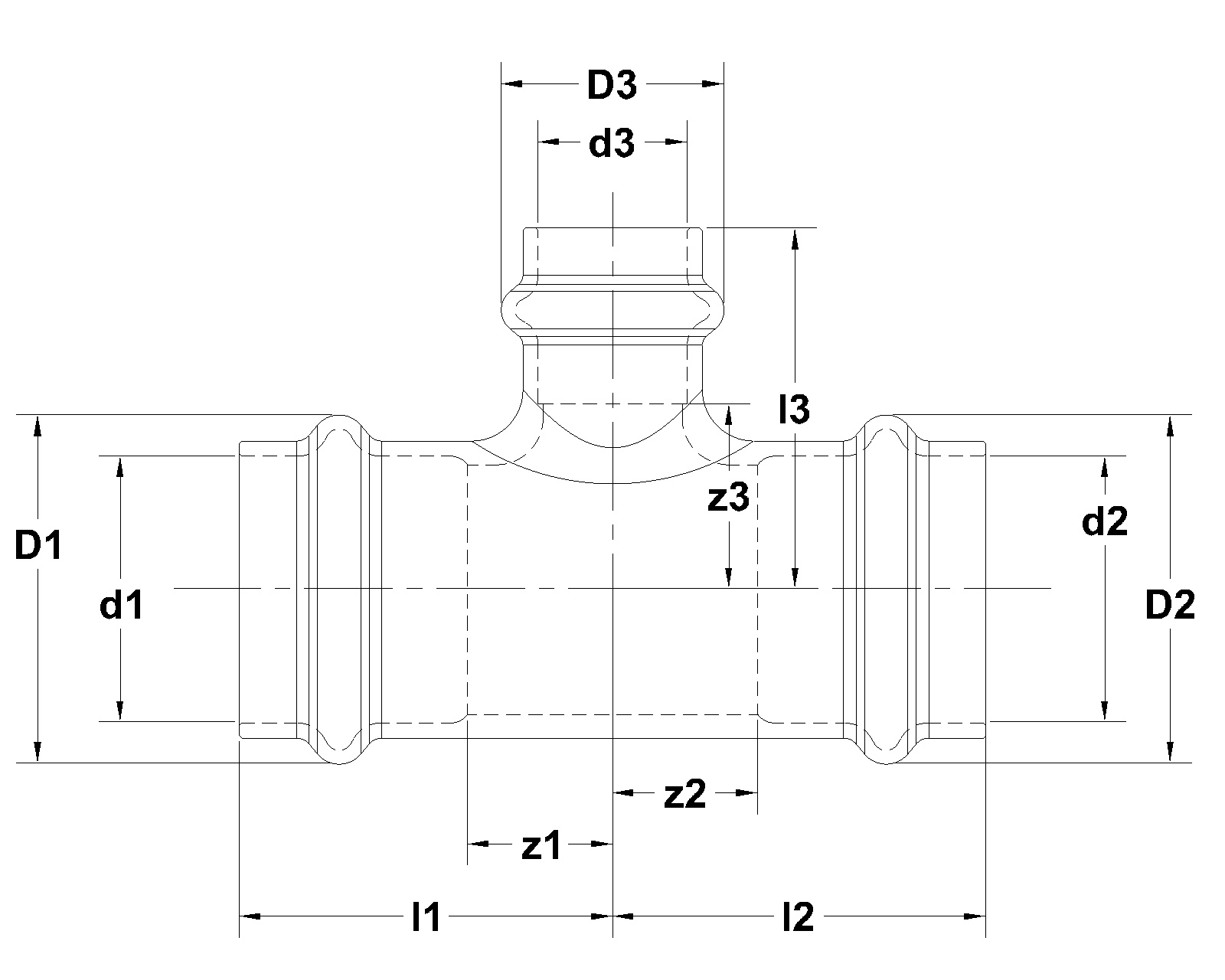

Dimensions3.21 in H x 4.58 in W x 2.11 in D
- Operating pressure 200 psi cwp
- Dezincification resistant
- The NIBCO Press System wrot copper tee features an inboard bead and EPDM O-ring
- Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux
- The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction
- The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | NPC611LDJJH |
-
UNSPSC40183102
-
Package DescriptionEACH
-
Standards/ApprovalsASME B16/51|ASTM B75 Alloy C12200 Copper|CSA MSE 13/PS-117|UPC Listed
-
WarrantyLimited
-
SDS
-
Warranty Information
-
Instruction/Installation Manual
