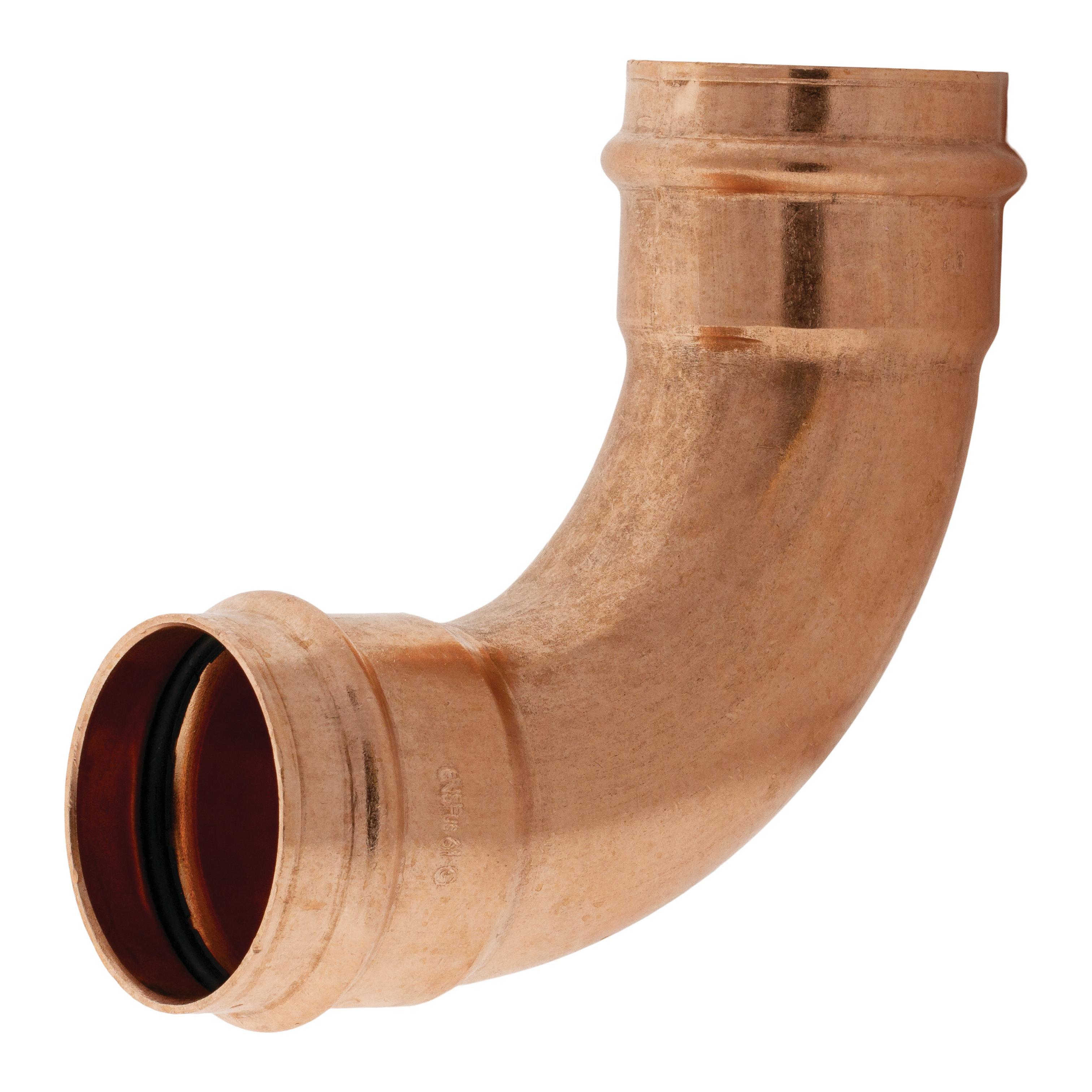

NIBCO® Press System® 9056405PC PC607 Straight Elbow, 2 in Nominal, Press End Style, Wrot Copper, Domestic
The NIBCO® Press System® copper 90-degree elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 90 degrees.
-
BrandNIBCO®
-
UPC039923416964
-
Manufacturer Part Number9056405PC
-
CountryUSA
-
Temperature Rating-20 to 250 deg F
-
MaterialWrot Copper
-
Fitting/Connector Type90 deg Elbow
-
Pressure Rating200 psi CWP
-
Method of ManufactureCast
-
TypeStraight
-
Nominal Size2 in
-
SeriesPC607
-

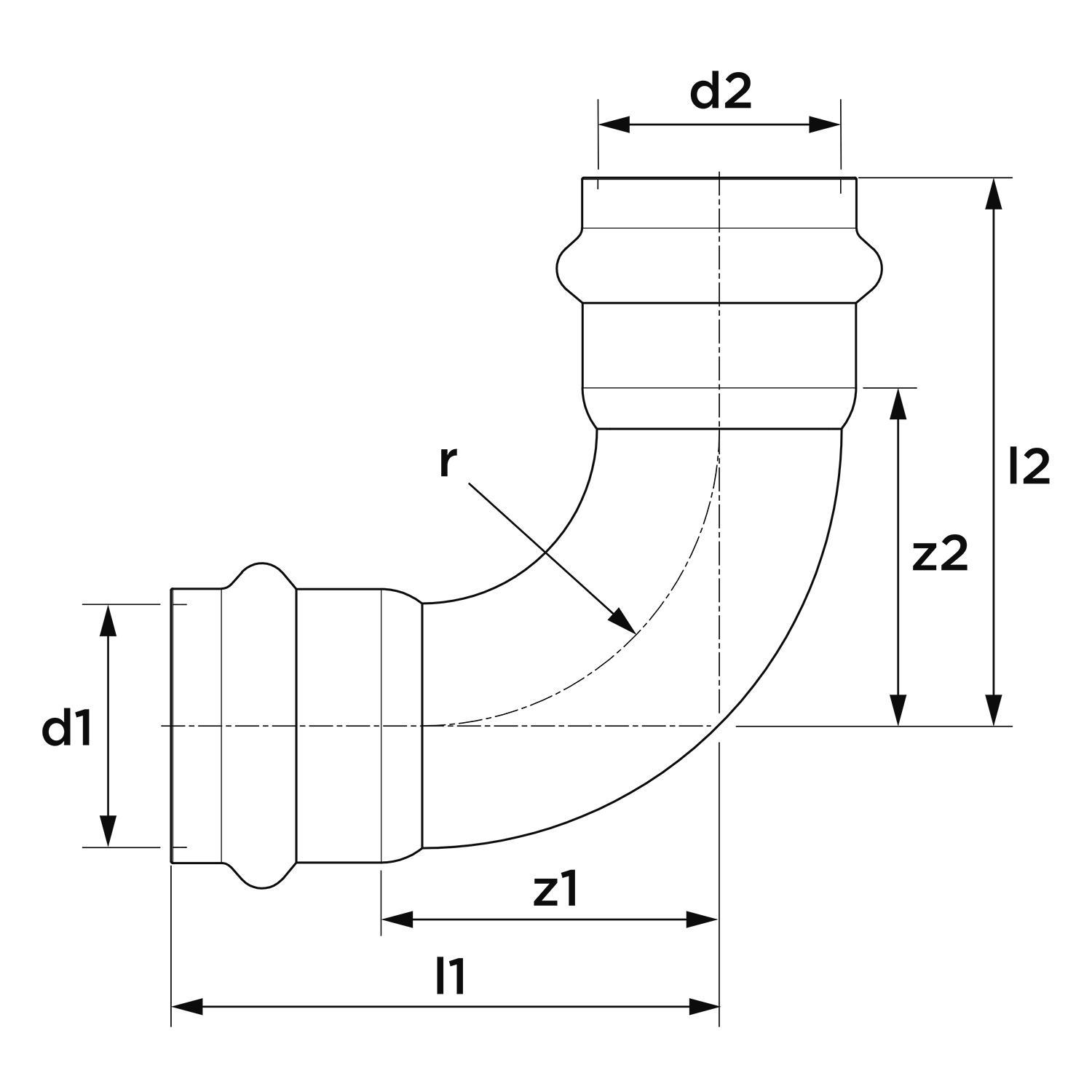

Dimensions5.733 in L x 2.57 in W x 5.733 in H
-
Domestic/ImportDomestic
-
End StylePress
- Select configurations to 300 psi cwp
- Dezincification resistant
- EPDM O-ring
- Silicone lubrication
- Hot water up to 250 deg F, chilled water down to 33 deg F
- Approved for underground installation (per local installation code)
- Use with hard/soft ASTM B88 K, L and M copper tube
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | NPC607LDK |
-
UNSPSC40183100
-
Package Description1/PK
-
Standards/ApprovalsAlloy C12200|ASME B16.51|ASTM B75|CSA MSE 13|PS-117|IAPMO PS-117|ICC-ES LC1002|Low Lead Compliant|NSF/ANSI 61/372|UPC Listed
-
Warranty50 years Limited
-
SDS
-
Warranty Information
-
Instruction/Installation Manual
-
Catalog
