Jones R-60-075 3/4" X 6" TWO-BOLT PIPE CLAMPS

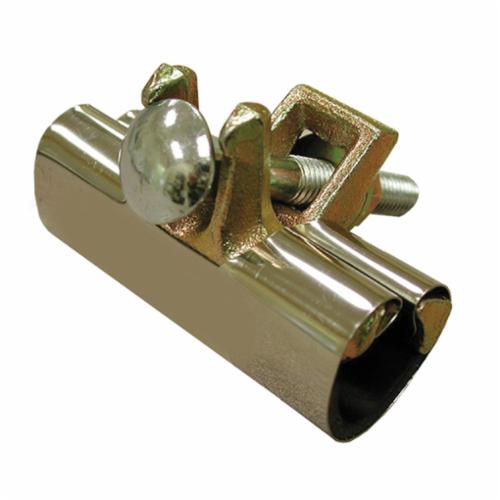

Jones Stephens™ R60075 2-Bolt Repair Clamp With Neoprene Gaskets, 6 in Pipe, 301 Stainless Steel
-
BrandJones Stephens™
-
UPC717510600759
-
Manufacturer Part NumberR60075
-
CountryUSA
-
Pipe Size6 in
-
Temperature Rating180 deg F
-
Material301 Stainless Steel
-
Type2-Bolt
- 3/4 in IPS x 1 in CTS
- Long neck carriage bolts for easy installation
- Schedule 40
- Plated lug, carriage bolt and nuts for corrosion protection
- Stainless steel type 300 bands
- Malleable iron PEX ASTM A47 grade 32610 lugs
- Grade 60 compounded to resist oil, natural gas, acids, alkalies, most AHF, water and other chemicals gasket
- -40 to 212 deg F gasket temperature
- ASTM A307 bolts and nuts
- 3 in clamp width
- 301 stainless steel clamp with neoprene gasket for up to 18 deg F
- You need it we got it item
-
UNSPSC40173804
-
Package Description6/CTN
-
Specification Sheet
